Referencia: 5981
Marca: Apagon
Model: 5M-16AWG MULTI-CONTACT ELECTRICAL EXTENSION 3-OUTPUT STRIP TYPE 5MTS LONG HARD CABLE, HIGH RESISTANCE AND DURABILITY RESISTS FOR OUTDOORS
Referencia: 3811
Marca: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Referencia: 3809
Marca: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 3808
Marca: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 3807
Marca: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 3806
Marca: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2451
Marca: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

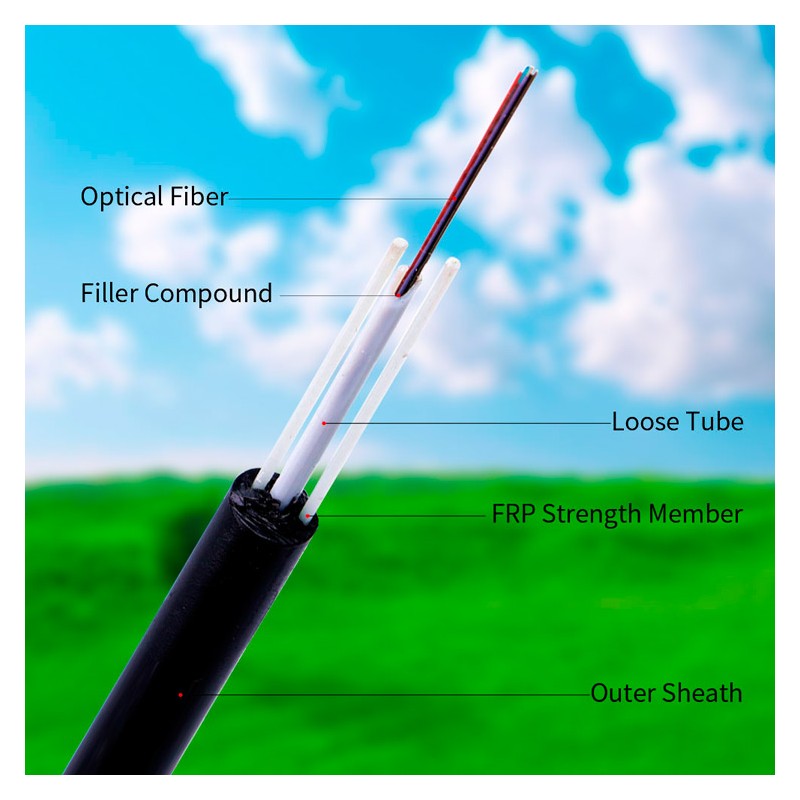

Model: FC2389-12-R5
Indoor/ Outdoor OM3-150 12 Core Fiber Cable PE jacket
500m,
Optical Fiber Cable GYFXTY
type Aqua,
50/125um Multimode,
Aramid yarn,
OD: 5.0mm,
packed in 500m/ reel 1,640 FT
Features
| Cable Count | Out Sheath Diameter |
Weight | Minimum Allowable Tensile Strength (N) |
Minimum Allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage Temperature |
|||
| （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | |
| 2 | 7.2 | 75.00 | 1200 | 1500 | 600 | 300 | 20D | 10D | -40+60 |
| 4 | 7.2 | 75.00 | 1200 | 1500 | 600 | 300 | 20D | 10D | -40+60 |
| 6 | 7.2 | 75.00 | 1200 | 1500 | 600 | 300 | 20D | 10D | -40+60 |
| 8 | 7.2 | 75.00 | 1200 | 1500 | 600 | 300 | 20D | 10D | -40+60 |
| 10 | 7.2 | 75.00 | 1200 | 1500 | 600 | 300 | 20D | 10D | -40+60 |
| 12 | 7.2 | 75.00 | 1200 | 1500 | 600 | 300 | 20D | 10D | -40+60 |
| G.652 | 50/125µm | 62.5/125µm | ||
| Attenuation (+20°C) (dB/km) |
@850nm | ≤3.0 | ≤3.0 | |
| @1300nm | ≤1.0 | ≤1.0 | ||
| @1310nm | ≤0.36 | |||
| @1550nm | ≤0.22 | |||
| Bandwidth (Class A) (MHz·km) | @850nm | ≥600 | ≥200 | |
| @1300nm | ≥1200 | ≥600 | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc (nm) | ≤1260 |
Ficha técnica
Referencia: 10276
Marca: Kodicam
Model: GYXTW-6 B1.3 Singlemode Excellent mechanical and temperature performance guaranteed by the accurate excess fiber length. Critical protection to fibers, based on the excellent hydrolysis resistance. Excellent crush resistance and flexibility. PSP enhances the cable crush-resistance, impact-resistance and moisture-proof. Two parallel steel wires...
Referencia: 10250
Marca: Kodicam
Model: FC2379L-06-R5 Indoor OM3 6 Core Tight Buffered Fiber LSZH 500m Optical Fiber Cable GJFJH type Aqua 50/125um Multimode Aramid yarn OD: 4.5mm packed in 500m
Referencia: 10252
Marca: Kodicam
Model: FC2389-06-R5 Outdoor OM3-150 6 Core Fiber Cable PE jacket 500m Optical Fiber Cable GYFTY 6A1a type Aqua 50/125um Multimode Construction 1+6 E-glass water-blocking yarn, MAT2000N OD: 10mm packed in 500m/ reel 1,640 FT
Referencia: 10275
Marca: Kodicam
Model: G.652.D-06-Singelmode Armored 6 Strand Indoor Fiber Optic Distribution Cable, OS2 9/125 Single mode, Corning Optical Fiber, Riser Rated, Yellow, Spool Extremely flexible, tight buffer cable design. ATM, FDDI, Fiber channel cable performance guarantee Meets the fire performance test for IEC60332-3C 10Gbps 40/100Gbps Ethernet 550MHz Broadband...
Referencia: 10251
Marca: Kodicam
Model: FC2389-06-R5 Indoor/ Outdoor OM3-150 6 Core Fiber Cable PE jacket 500m, Optical Fiber Cable GYFXTY type Aqua, 50/125um Multimode, Aramid yarn, OD: 5.0mm, packed in 500m/ reel 1,640 FT
Referencia: 10255
Marca: Kodicam
Model: FC2399-12-R5 Outdoor OM3-150 12 Core Fiber Cable PE jacket 500m Optical Fiber Cable GYFTY 6A1a type Aqua 50/125um Multimode Construction 1+6 E-glass water-blocking yarn, MAT2000N OD: 10mm packed in 500m/ reel 1,640 FT
Referencia: 10253
Marca: Kodicam
Model: FC2379L-12-R5 Indoor OM3 12 Core Tight Buffered Fiber LSZH 500m Optical Fiber Cable GJFJH type Aqua 50/125um Multimode Aramid yarn OD: 4.5mm packed in 500m
Model: FC2389-12-R5
Indoor/ Outdoor OM3-150 12 Core Fiber Cable PE jacket
500m,
Optical Fiber Cable GYFXTY
type Aqua,
50/125um Multimode,
Aramid yarn,
OD: 5.0mm,
packed in 500m/ reel 1,640 FT
