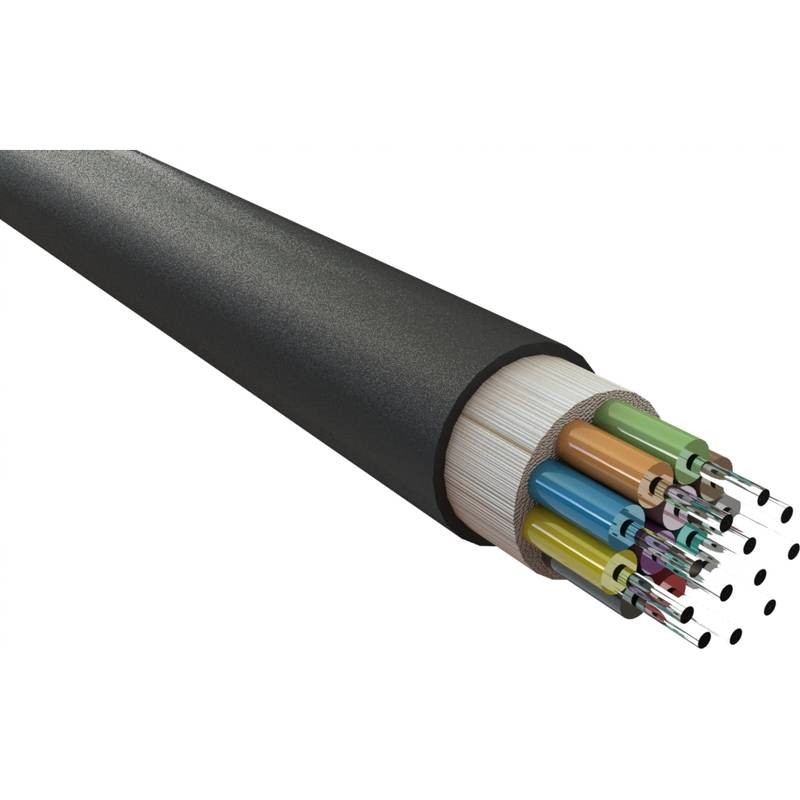

OM3 Multimode 6 Core Fibre Optic Cable GYFTY Tight Buffered 50/125

10252

Model: FC2389-06-R5

  • Outdoor OM3-150 6 Core Fiber Cable PE jacket 500m

  • Optical Fiber Cable GYFTY 6A1a type Aqua

  • 50/125um Multimode

  • Construction 1+6

  • E-glass water-blocking yarn, MAT2000N

  • OD: 10mm

  • packed in 500m/ reel 1,640 FT

$2,93
Impuestos excluidos
Cantidad
1171

Descripción

PHYSICAL DESCRIPTION

  • Products: multi mode Fiber optic cable
  • Tube Filling Compound: Thixotropic jelly /N
  • Fiber Type: 50/125 OM3
  • Tube material: PBT ( Polybutylene Terephthalate)
  • Armored: N
  • Packing Detail
  • Fiber Count: 6,8,12,24,
  • Tube Outer/Inner Diameter(mm): 3.0/2.0 ±
  • Cable Diameter(mm): 4.2*-12
  • Cable Weight(kg/km): 45±
  • Length/ Drum: 2000 m Drum ±5%
  • Ripcord: Polyester cord
  • Outer Jacket: PE,MDPE, LSZH
Mechanical and Environmental Properties
Physical tests                                                               Value                                                   Standard
Tensile Strength                                                                 2700 N (During Installation)              IEC 60794-1-E1
                                                                                                1700 N (During Operation)
Impact Resistance                                                              10J, 3 impacts                                        IEC 60794-1-E4
Crush Resistance                                                                220 N/cm                                                IEC 60794-1-E3
Temperature Cycling                                                         -40 to +70 °C                                          IEC 60794-1-F1
Flame Retardancy                                                              According to IEC 60332-3                   IEC 60332-3
Cable Bending Radius
Bend Radius (during installation)                                  20x Cable Diameter                                IEC 60794-1-2-E11A
Bend Radius (during Service) 1                                       0x Cable Diameter                                  IEC 60794-1-E11
Repeating Bending                                                             20x Cable Diameter                               IEC 60794-1-E6
Temperature Range)
Operation Temperature                                                   -40 to +70 C                                             IEC 60794-1-2-F1
Storage and Transportation Temperature                   -40 to +70 C
Installation Temperature                                                 -30 to +60 C
Optical Characteristics
Attenuation (max): 3.5 dB/km (850 nm) 1.5 dB/km (1300 nm)
Bandwidth (Laser EMB): 2000 MHz.km(850) 500 MHz.km (1300nm)
Bandwidth (Overfilled): 3500 MHz.km (850 nm) 500 MHz.km (1300 nm)
Numerical Aperture:0.2±0.015
Core Diameter: 50 ± 2 μm
Cladding Diameter: 125 ± 1μm
Core/Clad Concentricity error: ≤ 1 μm
Cladding non-circularity:≤ 0.7 %
Coating Diameter:242 ± 5 μm
Proof Test: ≥ 100kpsi or 0.7GPa
Detalles del producto
10252
1171 Artículos

Ficha técnica

FIBER TYPE
MULTI MODE
