Referencia: 3811
Marca: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Referencia: 3809
Marca: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 3808
Marca: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 3807
Marca: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 3806
Marca: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 8510
Marca: Apagon
Model: Exit-NPT5A Design with no Mechanical Bolt Infrared no touch Button With the Bottom Box, Easy to Install Three Contact Output, Suitable for all kinds of Locks
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2451
Marca: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy
Model: FC2379L-06-R5

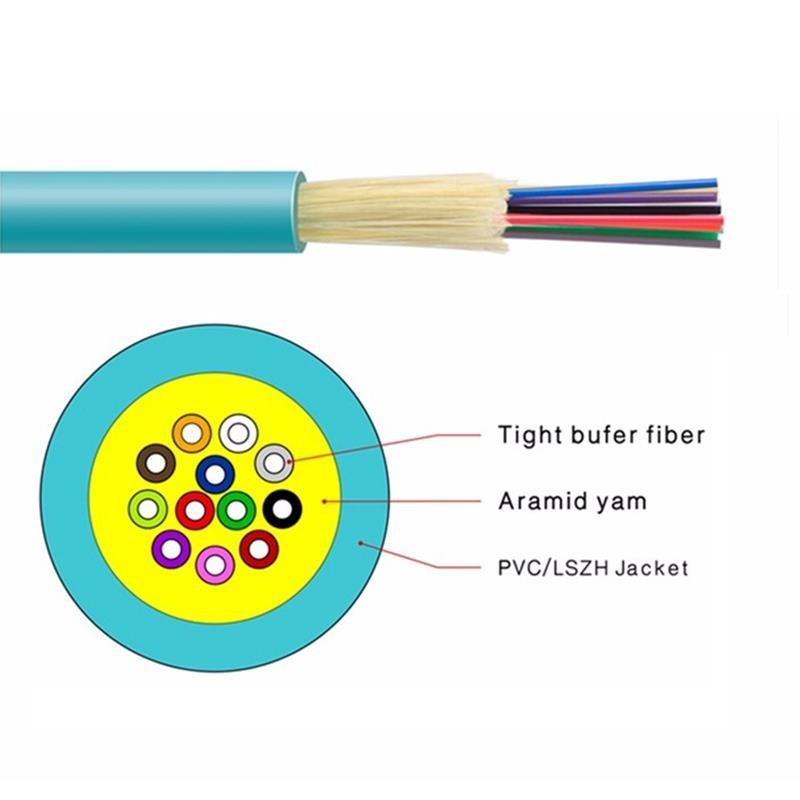

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH) jacket.
Features
Small diameter, light weight,flame retardant,excellent strippability
Low-attenuation, High flexibility
No need for transition connector box or pigtail between tight buffer fiber and cable, low cost with installation cause to it’s no needs to clean the water-proofing ointment.
The fiber optic cable complies with Standard GJFJV cable complies with Standard YD/T1258.2-2009,ICEA-596,GR-409,IEC794
Storage/Operating Temperature: -20°C to + 60°C
| G652 | G655 | 50/125μm | 62.5/125μm | ||
| Attenuation(+20deg C) | @850nm | ≤ 3.5dB/KM | ≤ 3.5dB/KM | ||
| @1300nm | ≤ 1.5dB/KM | ≤ 1.5dB/KM | |||
| @1310nm | ≤ 0.45 dB/KM | ≤0.5dB/km | |||
| @1550nm | ≤ 0.3 dB/KM | ≤0.5dB/km | |||
| Bandwidth(Class A) | @850nm | ≥ 500 MHz-KM | ≥200 MHz-KM | ||
| @1300nm | ≥1000 MHz-KM | ≥600 MHz-KM | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
Ficha técnica
Referencia: 10276
Marca: Kodicam
Model: GYXTW-6 B1.3 Singlemode Excellent mechanical and temperature performance guaranteed by the accurate excess fiber length. Critical protection to fibers, based on the excellent hydrolysis resistance. Excellent crush resistance and flexibility. PSP enhances the cable crush-resistance, impact-resistance and moisture-proof. Two parallel steel wires...
Referencia: 10275
Marca: Kodicam
Model: G.652.D-06-Singelmode Armored 6 Strand Indoor Fiber Optic Distribution Cable, OS2 9/125 Single mode, Corning Optical Fiber, Riser Rated, Yellow, Spool Extremely flexible, tight buffer cable design. ATM, FDDI, Fiber channel cable performance guarantee Meets the fire performance test for IEC60332-3C 10Gbps 40/100Gbps Ethernet 550MHz Broadband...
Referencia: 10255
Marca: Kodicam
Model: FC2399-12-R5 Outdoor OM3-150 12 Core Fiber Cable PE jacket 500m Optical Fiber Cable GYFTY 6A1a type Aqua 50/125um Multimode Construction 1+6 E-glass water-blocking yarn, MAT2000N OD: 10mm packed in 500m/ reel 1,640 FT
Referencia: 10251
Marca: Kodicam
Model: FC2389-06-R5 Indoor/ Outdoor OM3-150 6 Core Fiber Cable PE jacket 500m, Optical Fiber Cable GYFXTY type Aqua, 50/125um Multimode, Aramid yarn, OD: 5.0mm, packed in 500m/ reel 1,640 FT
Referencia: 10253
Marca: Kodicam
Model: FC2379L-12-R5 Indoor OM3 12 Core Tight Buffered Fiber LSZH 500m Optical Fiber Cable GJFJH type Aqua 50/125um Multimode Aramid yarn OD: 4.5mm packed in 500m
Referencia: 10254
Marca: Kodicam
Model: FC2389-12-R5 Indoor/ Outdoor OM3-150 12 Core Fiber Cable PE jacket 500m, Optical Fiber Cable GYFXTY type Aqua, 50/125um Multimode, Aramid yarn, OD: 5.0mm, packed in 500m/ reel 1,640 FT
Referencia: 10252
Marca: Kodicam
Model: FC2389-06-R5 Outdoor OM3-150 6 Core Fiber Cable PE jacket 500m Optical Fiber Cable GYFTY 6A1a type Aqua 50/125um Multimode Construction 1+6 E-glass water-blocking yarn, MAT2000N OD: 10mm packed in 500m/ reel 1,640 FT
Model: FC2379L-06-R5
