Reference: 5981
Brand: Apagon
Model: 5M-16AWG MULTI-CONTACT ELECTRICAL EXTENSION 3-OUTPUT STRIP TYPE 5MTS LONG HARD CABLE, HIGH RESISTANCE AND DURABILITY RESISTS FOR OUTDOORS
Reference: 3811
Brand: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Reference: 3809
Brand: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3808
Brand: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3807
Brand: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3806
Brand: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2451
Brand: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

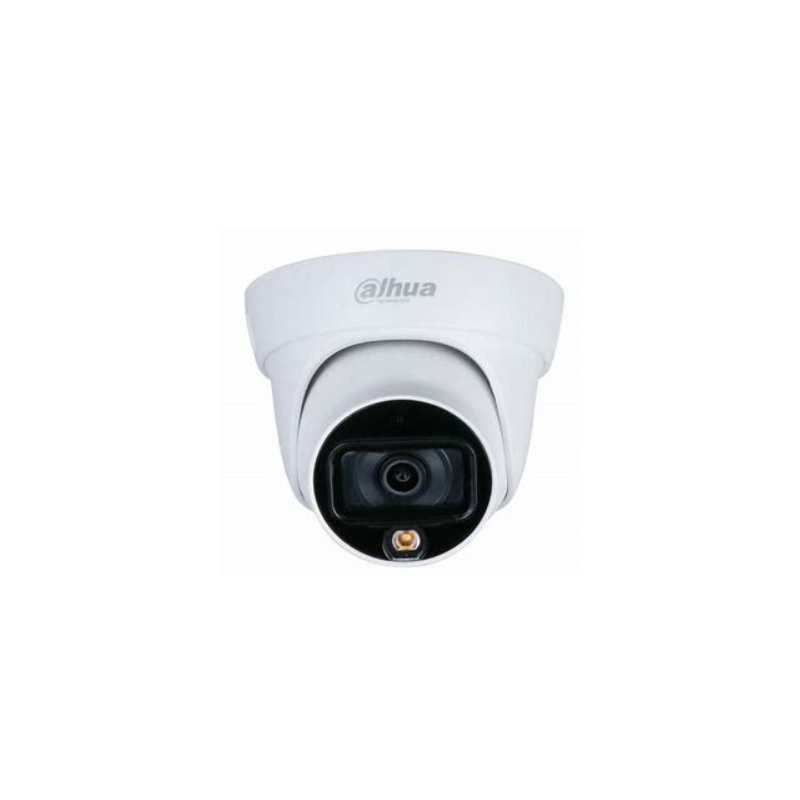

Model: HAC-HDW1239TL(-A)-LED
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/2.8 inch 2.16 Mega Pixels CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Effective Pixels |
1920 (H)×1080 (V), 2MP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
PAL:1/25s–1/100000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Minimum Illumination |
0.005Lux/F1.6, 30IRE, 0Lux white Light on |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Fill Light (White Light) Distance |
Distance up to 20m (65.61ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Fill Light On/Off Control |
Auto; Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Fill Light Number |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt/Rotation Range |
Pan: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mount Type |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
2.8m/3.6mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Aperture |
F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle of View |
2.8mm: 126.2°×106.0°×56.5° (diagonalxhorizontalxvertical) (diagonalxhorizontalxvertical) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Iris Type |
Fixed iris |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
2.8mm: 0.6m (1.97ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
2.8mm |
38.6m (126.6ft) |
15.4m (50.5ft) |
7.7m (25.3ft) |
3.9m (12.8ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
3.6mm |
55.2m (181.1ft) |
22.1m (72.5ft) |
11.0m (36.0ft) |
5.5m (18.0ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Data sheet
Reference: 3354
Brand: Dahua
Model: PFA152-E Material: aluminum & SUS304 Pole mount bracket Aesthetic design
Reference: 3304
Brand: Dahua
Model: PFB220C Neat & Integrated design. Ceiling mount bracket. Material: Aluminum.
Reference: 3323
Brand: Dahua
Model: PFA12A Material: weatherability and nondisclosure PP Structural water-proof design Hidden line design, can place video balun with HDCVI/AHD/TVI/CVBS cameras Aesthetic design
Reference: 3325
Brand: Dahua
Model: PFA13G Aluminum alloy material, cost-effective. Dedicated for particular cameras, beautiful and elegant designed. Cabling inside the junction box. Cable threading through bottom or side.
Reference: 3351
Brand: Dahua
Model: PFA135 Aesthetic design Material: aluminum Junction box
Reference: 5580
Brand: Apagon
Model: SW-24FE Port: Auto negotiation and auto MDI/MDIX Switching: Store and forward method Full duplex flow control and half duplex backpressure Mac address auto learning and auto aging LED indicators for monitoring power, link/activity, speed Management: Unmanaged (Plug and Play)
Reference: 762
Brand: Dahua
Model: PFS3005-5GT Supports five 10/100/1000 Mbps adaptive ports. Small and light, it is easy to carry and has multiple chips embedded in it. Easy to operate.
Reference: 1901
Brand: Kodicam
Model: HDC-EV/2M-2.8 ELEVATOR Camera- SUPPORTS TVI, CVI AND AHD 2.8" 2.4 Megapixel CMOS 1080P@30 2.8mm Len Long Distance, No delay Support ICR auto switch Support AHD/ CVI/ TVI/ Analog transfer
Reference: 466
Brand: Dahua
Model: SD6CE225U-HNI 1/2.8” 2Megapixel STARVIS™ CMOS Powerful 25x optical zoom Starlight technology Max. 50/60fps@1080P Auto-tracking and IVS IR distance up to 200m Support PoE+ IP67, IK10
Reference: 5553
Brand: Apagon
1000Mbps 12 Ports PoE Switch with 1 SFP Ports (Built-in Power)
Reference: 1857
Brand: Dahua
Model: HAC-HDW2241M-E2 Starlight, 120dB true WDR, 3DNR One-way power supply for dual-way video outputs Broadcast-quality audio HD/SD output switchable Single view: max. 30fps@1080P 3.6mm fixed lens (2.8mm, 6mm optional) Max. IR length 30m, Smart IR IP67, DC12V±30%
Reference: 1751
Brand: Dahua
Model: IPC-HDBW2431R-ZS-S2 4MP, 1/3” CMOS image sensor, low illuminance, high image definition Outputs 4MP (2560 × 1440) @25/30 fps, Max. supports 4MP (2688 × 1520) @20 fps H.265 codec, high compression rate, ultra-low bit rate Built-in IR LED, max IR distance: 40 m ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage...
Reference: 1803
Brand: Dahua
Model: HAC-HFW1200R-Z-IRE6-A-POC Max 30 fps@1080P. 2.7mm-12mm motorized lens. CVI/CVBS/AHD/TVI switchable. Built-in mic. Max. IR length 60m, Smart IR. IP67, PoC (only CVI)/12V±30% DC.
Reference: 5551
Brand: Apagon
16 Gigabit POE + 2 SFP CCTV Ethernet POE Switch
Reference: 806
Brand: Dahua
Model: DSS7016DR-S2 3.5" chassis with up to 15 hot-swapping hard drives and extends storage through ISCSI. Up to 1,000 video channels per server and the number can be larger with distributed deployment. Redundant power option makes the system more stable. Hot standby application of two servers ensures 7 × 24h stable operation. N+M...
Reference: 893
Brand: Dahua
Model: IPC-PFW8601N-H-A180 Three 1/2.8” 2Megapixel progressive scan STARVIS. CMOS H.265/H.264 triple-stream encoding Max 25/30fps@4096×832 Support 180-degree panoramic view Day/Night (ICR), 3DNR, AWB, AGC, BLC, WDR Smart detection Intelligent Function Max. IR LEDs length 30m Micro SD memory, IP67, IK10, PoE+
Reference: 5570
Brand: Apagon
Model: SW08GS 8 Ports Gigabit Ethernet Switch Rj45 network. Support camera, wireless AP, and IP phone etc.
Reference: 1902
Brand: Dahua
Model: HAC-HDW1509TLQ(-A)-LED Max 25 fps@5MP (16:9 video output) 120dB true WDR, 3D NR 24/7 color imaging 20 m illumination distance CVI/CVBS/AHD/TVI switchable Built-in mic (-A) 2.8 mm optional IP67, 12 V DC Quick-to-install eyeball saves installation time
Reference: 3261
Brand: Dahua
Model: ASC1204B-S Support 100,000 valid cards & 150,000 records. Support card, password, fingerprint, and combination. TCP/IP interface to PC. Wiegand or RS-485 interface to readers (4 door). Door time out alarm, intrusion alarm, duress alarm and tamper alarm. Anti-pass back, multi-door interlock, multi-card open. Support 128 efficient time and...
Reference: 1049
Brand: Dahua
Model: HAC-HDBW3231E-Z Starlight, 120dB true WDR, 3DNR Max 30fps@1080P HD and SD dual-output 2.7-12mm motorized lens Max. IR length 50m, Smart IR IP67, IK10, AC24V/DC12V
Reference: 1810
Brand: Dahua
Model: HAC-HUM3201B-B Starlight, 120dB true WDR, 3DNR Max 30fp@1080P HD and SD output switchable 2.8mm fixed lens Audio in interface DC12V
Model: HAC-HDW1239TL(-A)-LED
