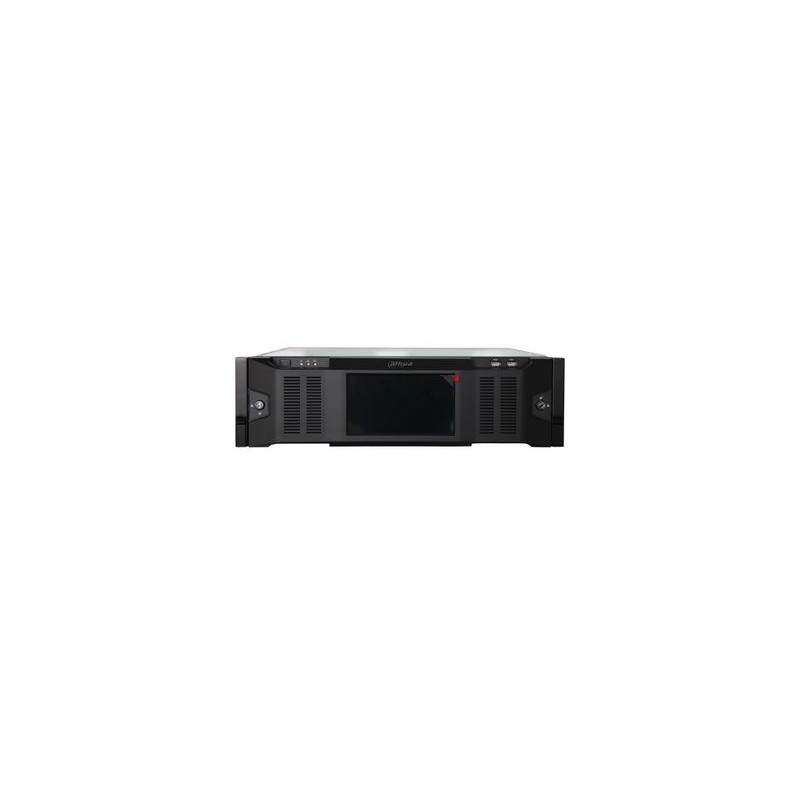

DSS7016DR-S2 A Powerful Surveillance System

Recommended

CPU

Intel Core i5, 64 bits 4 Core Processor

Memory

8 GB

Graphics Card

NVIDIA® GeForce®GT 730

Hard Drive Capacity

200 GB free for DSS Control Client

Ethernet Port

1000 Mbps

Minimum

CPU

Intel Core i3, 64 bits 4 Core Processor

Memory

4 GB

Graphics Card

Intel® HD Graphics 4400

Hard Drive Capacity

100 GB free for DSS Control Client

Ethernet Port

1000 Mbps

Hardware for Mobile Client

iPhone

iPhone 5S and above

Android

Resolution: 1280 × 720 and above

RAM: 3 GB and above

System

Main Processor

Intel i5-6600, 64 bits 4 Core Processor

Operating System

Embedded Linux

Memory

8 GB

Motherboard

Embedded board (7 × 24 operation)

Hard Disk Hot swap

Support hot swap and online replacement

Hard Disk Compatibility

SAS/SATA disk

Interface

Number of Network Ports

4 Ethernet ports (100/1000 Mbps)

RS-485

Reserved

RS-232

Reserved

USB

2 × USB 2.0 on front panel; 2 × USB 3.0 on rear panel

HDMI

3 HDMI ports

VGA

1 VGA port

Storage

HDD Installation

Support 15 HDDs (3.5") for video or picture storage

(8 TB per HDD)

Storage

Up to 200 TB per server

HDD Mode

Single; raid 0/1/5/6/10

Bandwidth of Video

Storage per Server

600 Mbps

Other

Power

Maximum power 315W; stable power 210W

Working Environment

Temperature

0°C to 40°C (32°F to 104°F)

Working Environment Humidity

10% 80% (RH) (non-condensation)

Storage Environment Temperature

-20°C to +70°C (-4°F to +158°F)

Storage Environment Humidity

5%–90% (RH) (non-condensation)

Working Altitude

0 m–5000 m (0 ft–16,404.2 ft)

Weight

(Without Package)

19.1 kg (42.1 lb)

Dimension

444.8 mm × 133.2 mm × 522.2 mm

(17.5" × 5.24" × 20.6")

Installation Method

Standard 19-inch rack mount

Secondary Development

Platform SDK provided

Organization, User and Role

Organization

10 hierarchies, 999 organizations per hierarchy

Role (User Permission)

100

User

50 online users and 200 total users

User for VDP Mobile APP

500 online users and 5,000 total users

Performance Specification

Event with Picture (for ANPR)

ANPR

12 per second (12 per 3 s for entrance and exit )²

Event with Picture (for others)

Alarm with Picture

40 per second²

Face Capture

120 per second²

Object Detection

40 per second²

Distributed System

Server Number

Number of Slave Server

Up to 5

Device and Channel

Total Device Number

Total Device Number

5,000 devices

Video Device and Channel

Total Number of Video Devices and Channels

2,500 devices; 5,000 channels

Auto-register

2,500 devices; 5,000 channels

ONVIF

400 devices; 800 channels

ANPR Device

320 channels

Face Recognition Channel

500 channels

Object Detection Channel

100 channels

Heatmap Channel

320 channels

People Counting Channel

500 channels

ACS Device

Access Control

500 IPs; 2,500 doors

Event

Total Event

480 per second²

Event without Picture

Alarm without Picture

480 per second²

Access Control Event

96 per second²

Event with Picture (for ANPR)

ANPR Event

120 per second (120 per 3 s for entrance and exit)²

Event with Picture (for others)

Alarm with Picture

120 per second²

Face Capture

280 per second²

Object Detection

80 per second²
