Reference: 5981
Brand: Apagon
Model: 5M-16AWG MULTI-CONTACT ELECTRICAL EXTENSION 3-OUTPUT STRIP TYPE 5MTS LONG HARD CABLE, HIGH RESISTANCE AND DURABILITY RESISTS FOR OUTDOORS
Reference: 3811
Brand: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Reference: 3809
Brand: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3808
Brand: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3807
Brand: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3806
Brand: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2451
Brand: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

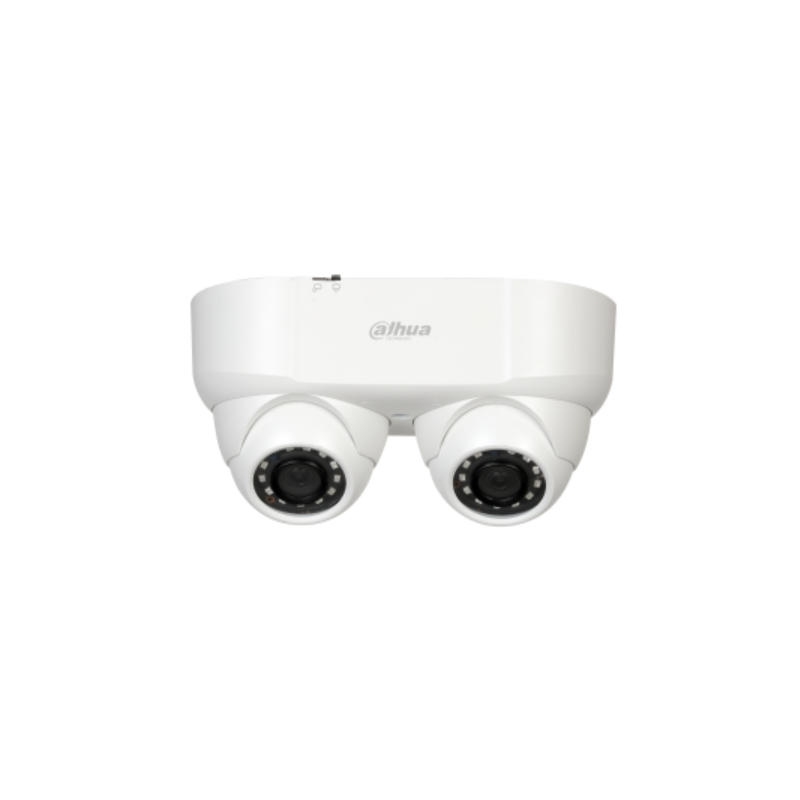

Model: HAC-HDW2241M-E2
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
2×1/2.8" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Effective Pixels |
Single view: 1920(H)×1080(V), 2MP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
PAL: 1/4s~1/100000s NTSC: 1/3s~1/100000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Minimum Illumination |
0.004Lux/F1.6, 30IRE, 0Lux IR on |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
More than 65dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR Distance |
Up to 30m (98feet) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR On/Off Control |
Auto / Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR LEDs |
2×12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Fixed lens / Fixed iris |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mount Type |
Board-in |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
3.6mm (2.8mm, 6mm Optional) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max Aperture |
F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle of View |
Single view(H): 86.9° (110°/52.8°) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focus Control |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
1200mm (500mm, 2200mm) 47.2'' (19.7"/ 86.6") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DORI Distance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DORI Definition |
Distance |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Detect |
25px/m (8px/ft) |
2.8mm: 39m(128ft) 3.6mm: 55m(180ft) 6mm:83m(272ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Observe |
63px/m (19px/ft) |
2.8mm: 15m(49ft) 3.6mm:22m(27ft) 6mm:33m(108ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Recognize |
125px/m (38px/ft) |
2.8mm: 8m(26ft) 3.6mm: 11m(36ft) 6mm: 17m(56ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Identify |
250px/m (76px/ft) |
2.8mm: 4m(13ft) 3.6mm: 6m(20ft) 6mm: 8m(26ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan / Tilt / Rotation |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt/Rotation |
Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
Single view: 1080P (1920×1080) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Frame Rate |
25/30fps@1080P, 25/30/50/60fps@720P |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Output |
2-channel BNC high definition video output / CVBS video output (DIP switch) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Day/Night |
Auto (ICR) / Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
OSD Menu |
Multi-language |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
BLC Mode |
BLC / HLC / WDR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WDR |
120dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gain Control |
AGC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Noise Reduction |
2D / 3D |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
White Balance |
Auto / Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart IR |
Auto / Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Data sheet
Reference: 3352
Brand: Dahua
Model: PFA151 Material: SECC Corner mount bracket Aesthetic design
Reference: 755
Brand: Dahua
Model: HAC-HDBWV1200RN-VF 1/2.7" 2Megapixel CMOS 30fps@1080P High speed, long distance real-time transmission Day/Night (ICR), AWB, AGC, BLC, 2D-DNR 2.7~12mm vari-focal lens Max. IR LEDs length 30m, Smart IR IP67, IK10, DC12V
Reference: 372
Brand: Dahua
Model: HAC-HDW1200MN-028BS4 Max 30fps@1080P HD and SD output switchable 2.8 mm fixed lens Max. IR length 30 m, Smart IR IP67, DC12V
Reference: 1863
Brand: Dahua
Model: HAC-HDBW2241F-A Starlight, 120dB true WDR, 3DNR Max. 30fps@1080P HD/SD output switchable Audio in interface, built-in mic 3.6mm fixed lens (2.8mm optional) Max. IR length 20m, Smart IR IP67, IK10, DC12V±30%
Reference: 1910
Brand: Dahua
Model: HAC-HDW1239T-Z-A-LED 24/7 color imaging, Max. 30 fps@1080p Super Adapt, 130 dB true WDR, 3D NR Auto focus, 2.7 mm–13.5 mm motorized lens 40 m illumination distance Built-in mic CVI/CVBS/AHD/TVI switchable IP67, DC 12V
Reference: 2254
Brand: Uniview
Model: UAC-T142-AF28(40)LM-DL High quality imaging with 2MP resolution TVI/AHD/CVI/CVBS Supports IR-cut filter with auto-switch (ICR) Smart Dual Light 3D noise reduction technology delivers clean and sharp images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high...
Reference: 2252
Brand: Uniview
Model: UAC-T122-AF28(40)LM High quality imaging with 2MP resolution TVI/AHD/CVI/CVBS Supports IR-cut filter with auto-switch (ICR) LightHunter monitoring with high-sensitivity sensor 3D noise reduction technology delivers clean and sharp images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and...
Reference: 1906
Brand: Dahua
Model: HAC-HDW1209TLQP-A-LED Full-color starlight 20 m illumination distance Max. 30fps@1080P Built-in mic (-A) Quick-to-install eyeball saves installation time CVI/CVBS/AHD/TVI switchable Fixed lens (2.8 mm;3.6 mm optional) IP67, 12V±30% DC
Reference: 2250
Brand: Uniview
Model: UAC-T112-F28 2MP, HD Fixed lens 2.8mm/4mm AHD/TVI/CVI/CVBS IR-cut filter with auto switch (ICR) Smart-IR function is available, effectively prevents overexposure at short range Support image horizontal flip 180°, vertical rotation 180° Support OSD configuration, which is easy to configure and operate IP67 High reliability with...
Reference: 2286
Brand: Uniview
Model: UAC-B122-AF28M-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 1904
Brand: Dahua
Model: HAC-HDW1239T-LED 24/7 color imaging, Max. 30 fps@1080p 40 m illumination distance Super Adapt, 130 dB true WDR, 3D NR No mic 3.6 mm fixed lens (2.8 mm optional) CVI/CVBS/AHD/TVI switchable IP67, DC 12 V
Reference: 2251
Brand: Uniview
Model: UAC-T112-F28-W High quality image with 2MP Fixed lenses 2.8mm and 4.0mm AHD/TVI/CVI/CVBS White fill light, 7*24 hours full-color Support image horizontal flip 180°, vertical rotation 180° Support OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability 11 languages available
Reference: 1856
Brand: Dahua
Model: HAC-T2A21 Max. 30 fps@1080p. Smart IR Illumination. 20 m illumination distance. 3.6 mm fixed lens CVI/CVBS/AHD/TVI switchable. IP67, 12 VDC.
Reference: 1865
Brand: Dahua
Model: HAC-HDW1200T-Z-A Max 30fps@1080P HD and SD output switchable Built-in mic 2.7-12mm motorized lens Max. IR length 60m, Smart IR IP67, DC12V
Reference: 1864
Brand: Dahua
Model: HAC-HDBW1200E Max 30fps@1080P HD and SD output switchable 3.6mm fixed lens (2.8mm optional) Max. IR length 30m, Smart IR IP67, IK10, DC12V
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 1908
Brand: Dahua
Model: HAC-HDW1200T-IL-A Max. 30 fps@1080p. 3D NR. Smart Dual Light. 40 m illumination distance. Super Adapt. Built-in mic. 2.8 mm fixed lens. CVI/CVBS/AHD/TVI switchable. IP67, 12 VDC.
Model: HAC-HDW2241M-E2
