Reference: 5981
Brand: Apagon
Model: 5M-16AWG MULTI-CONTACT ELECTRICAL EXTENSION 3-OUTPUT STRIP TYPE 5MTS LONG HARD CABLE, HIGH RESISTANCE AND DURABILITY RESISTS FOR OUTDOORS
Reference: 3811
Brand: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Reference: 3809
Brand: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3808
Brand: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3807
Brand: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3806
Brand: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2451
Brand: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

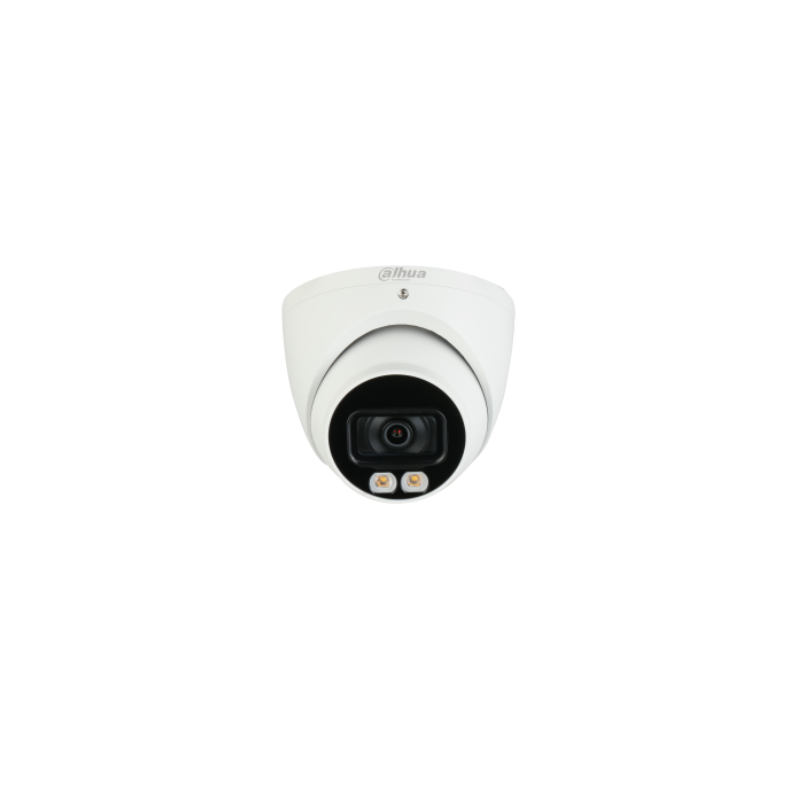

Model: HAC-HDW1200T-IL-A
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
2 MP CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Resolution |
1920 (H) × 1080 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
PAL: 1/25 s–1/100000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Min. Illumination |
0.01 lux@F2.0 (Color, 30 IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
>65 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illumination Distance |
IR: 40 m (131.23 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator On/Off Control |
Auto |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator Number |
2 (Warm light); 2 (IR light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle Adjustment |
Pan: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Auto Focus |
No |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Mount |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
2.8 mm; 3.6 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Aperture |
F2.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Field of View |
2.8 mm: H: 102°; V: 60°; D: 129° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Iris Control |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
2.8 mm: 0.5 m (1.64 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
2.8 mm |
41.1 m (135.83 ft) |
16.5 m (42.13 ft) |
8.3 m (27.23 ft) |
4.1 m (13.45 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
3.6 mm |
50.9 m (166.99 ft) |
20.3 m (66.60 ft) |
10.2 m (33.46 ft) |
5.1 m (16.73 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Frame Rate |
CVI: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Day/Night |
Auto(ICR)/Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
BLC |
BLC; HLC; DWDR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WDR |
DWDR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
White Balance |
Auto;Area white balance |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gain Control |
Auto |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Noise Reduction |
3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illumination Mode |
Smart IR&WL; WL Mode; IR Mode |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mirror |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Privacy Masking |
Off/On (8 areas, rectangle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE-LVD: EN 62368-1; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Input |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 VDC ± 30% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Max 4.1W (12 VDC, IR on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
<95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
<95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
φ106.0 mm × 99.2 mm (φ4.17" × 3.91") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.45 kg (0.99lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.58kg (1.28 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Wall mount; ceiling mount; vertical pole mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reference: 3354
Brand: Dahua
Model: PFA152-E Material: aluminum & SUS304 Pole mount bracket Aesthetic design
Reference: 3304
Brand: Dahua
Model: PFB220C Neat & Integrated design. Ceiling mount bracket. Material: Aluminum.
Reference: 3307
Brand: Dahua
Model: PFA106 Neat & Integrated design. Material: Aluminum.
Reference: 3320
Brand: Dahua
Model: PFA139 Aesthetic design Material: aluminum Junction box
Reference: 3331
Brand: Dahua
Model: PFB204W Aesthetic design Wall mount bracket Material: aluminum & SECC
Reference: 3350
Brand: Dahua
Model: PFA130-E Neat & Integrated design Material: Aluminum IP66 junction box
Reference: 2252
Brand: Uniview
Model: UAC-T122-AF28(40)LM High quality imaging with 2MP resolution TVI/AHD/CVI/CVBS Supports IR-cut filter with auto-switch (ICR) LightHunter monitoring with high-sensitivity sensor 3D noise reduction technology delivers clean and sharp images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and...
Reference: 1863
Brand: Dahua
Model: HAC-HDBW2241F-A Starlight, 120dB true WDR, 3DNR Max. 30fps@1080P HD/SD output switchable Audio in interface, built-in mic 3.6mm fixed lens (2.8mm optional) Max. IR length 20m, Smart IR IP67, IK10, DC12V±30%
Reference: 1807
Brand: Dahua
Model: HAC-HFW3231E-Z Starlight, 120dB true WDR, 3DNR Max 30fps@1080P HD and SD dual-output 2.7-12mm motorized lens Max. IR length 100m, Smart IR IP67, IK10, AC24V/DC12V
Reference: 1856
Brand: Dahua
Model: HAC-T2A21 Max. 30 fps@1080p. Smart IR Illumination. 20 m illumination distance. 3.6 mm fixed lens CVI/CVBS/AHD/TVI switchable. IP67, 12 VDC.
Reference: 2285
Brand: Uniview
Model: UAC-B112-F28-W High quality image with 2MP Fixed lenses 2.8mm and 4.0mm AHD/TVI/CVI/CVBS White fill light, 7*24 hours full-color Support image horizontal flip 180°, vertical rotation 180° Support OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability 11 languages available
Reference: 372
Brand: Dahua
Model: HAC-HDW1200MN-028BS4 Max 30fps@1080P HD and SD output switchable 2.8 mm fixed lens Max. IR length 30 m, Smart IR IP67, DC12V
Reference: 1904
Brand: Dahua
Model: HAC-HDW1239T-LED 24/7 color imaging, Max. 30 fps@1080p 40 m illumination distance Super Adapt, 130 dB true WDR, 3D NR No mic 3.6 mm fixed lens (2.8 mm optional) CVI/CVBS/AHD/TVI switchable IP67, DC 12 V
Reference: 1950
Brand: Dahua
Model: HAC-HFW1239TU-Z-A-LED 24/7 color imaging, Max. 30 fps@1080p Super Adapt, 130 dB true WDR, 3D NR Auto focus, 2.7 mm–13.5 mm motorized lens 60 m illumination distance Built-in mic CVI/CVBS/AHD/TVI switchable IP67, DC 12V
Reference: 2250
Brand: Uniview
Model: UAC-T112-F28 2MP, HD Fixed lens 2.8mm/4mm AHD/TVI/CVI/CVBS IR-cut filter with auto switch (ICR) Smart-IR function is available, effectively prevents overexposure at short range Support image horizontal flip 180°, vertical rotation 180° Support OSD configuration, which is easy to configure and operate IP67 High reliability with...
Reference: 2286
Brand: Uniview
Model: UAC-B122-AF28M-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 1857
Brand: Dahua
Model: HAC-HDW2241M-E2 Starlight, 120dB true WDR, 3DNR One-way power supply for dual-way video outputs Broadcast-quality audio HD/SD output switchable Single view: max. 30fps@1080P 3.6mm fixed lens (2.8mm, 6mm optional) Max. IR length 30m, Smart IR IP67, DC12V±30%
Reference: 2287
Brand: Uniview
Model: UAC-B122-AF28(40)LM High quality imaging with 2MP resolution TVI/AHD/CVI/CVBS Supports IR-cut filter with auto-switch (ICR) LightHunter monitoring with high-sensitivity sensor 3D noise reduction technology delivers clean and sharp images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and...
Reference: 1864
Brand: Dahua
Model: HAC-HDBW1200E Max 30fps@1080P HD and SD output switchable 3.6mm fixed lens (2.8mm optional) Max. IR length 30m, Smart IR IP67, IK10, DC12V
Reference: 2254
Brand: Uniview
Model: UAC-T142-AF28(40)LM-DL High quality imaging with 2MP resolution TVI/AHD/CVI/CVBS Supports IR-cut filter with auto-switch (ICR) Smart Dual Light 3D noise reduction technology delivers clean and sharp images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high...
Reference: 1049
Brand: Dahua
Model: HAC-HDBW3231E-Z Starlight, 120dB true WDR, 3DNR Max 30fps@1080P HD and SD dual-output 2.7-12mm motorized lens Max. IR length 50m, Smart IR IP67, IK10, AC24V/DC12V
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Model: HAC-HDW1200T-IL-A
