Reference: 5981
Brand: Apagon
Model: 5M-16AWG MULTI-CONTACT ELECTRICAL EXTENSION 3-OUTPUT STRIP TYPE 5MTS LONG HARD CABLE, HIGH RESISTANCE AND DURABILITY RESISTS FOR OUTDOORS
Reference: 3811
Brand: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Reference: 3809
Brand: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3808
Brand: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3807
Brand: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3806
Brand: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2451
Brand: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

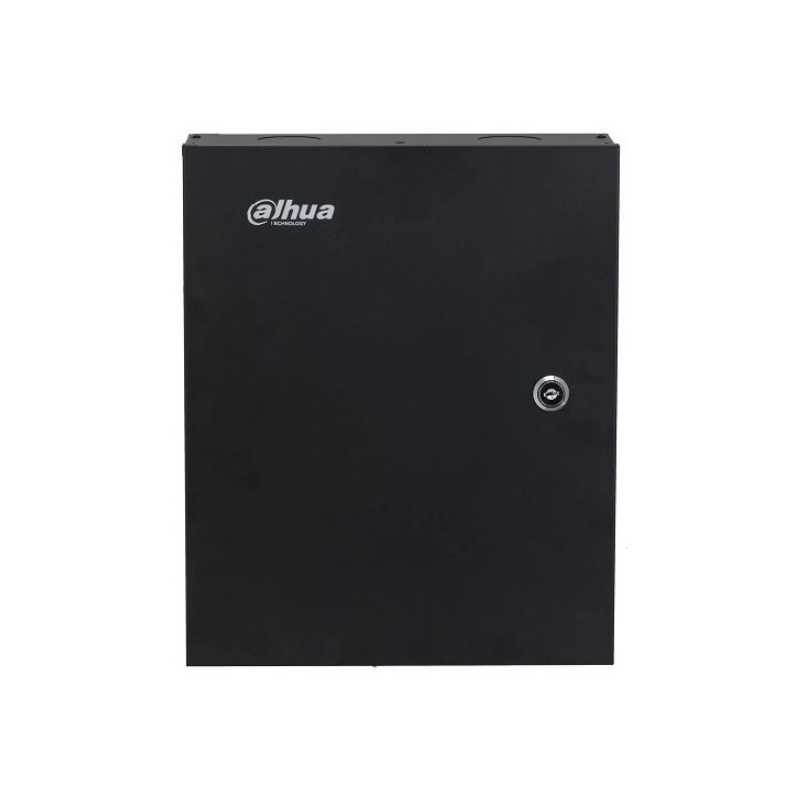

Model: ASC2208C-S
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Internet Protocol |
IPv4; TCP; UDP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
OSDP Protocol |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SDK |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Appearance |
Type C Iron Container |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Buzzer |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
SECC steel board |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Unlock Mode |
Card swiping; Remote; Password; Fingerprint |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Period List |
128 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Holiday Period |
128 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Update |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
First-Card Unlock |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Remote Verification |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Blocklist/Allowlist |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Peripheral Card Reader |
8-Channel RS-485 card reader |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multi-door Interlock |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Group Combination |
Card swiping; password; fingerprint |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Real-Time Surveillance |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multiple Authentication |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User (Card) Type |
General user; VIP user; patrol user; guest user; blocklist user; other user |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Capacity |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User |
100,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Fingerprint |
3,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card |
100,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Record Capacity |
500,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RS-485 Port |
9 × RS-485 ports |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wiegand |
8 × Wiegand ports |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
1 × 10/100 Mbps Ethernet port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Input |
8 (digital quantity) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Output |
8 (relay) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Linkage |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Exit Button |
8 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Door Status Detection |
8 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lock Control |
8 channels, NO by default |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anti-Passback |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Tamper |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Duress |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Door Unlock Timeout |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Intrusion |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illegal Card Exceeding Threshold |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Duress Fingerprint |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
100-240 V AC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IP Rating |
IP20; Ik04 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤ 0.8 W (standby), ≤ 39.6 W (working) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
337 mm × 272 mm × 90 mm (13.27”× 10.71”× 3.54") (H × W × D) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
472 mm × 352 mm × 163 mm (18.58" × 13.86" × 6.42") (H × W × D) (one product in an inner carton) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30°C to +60°C (–22 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
5%–95% RH (non-condensing) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Environment |
Indoor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
3.5 kg (7.72 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Surface mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
CE; FCC; UL |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reference: 1222
Brand: Kodicam
Model: KS-50M Features: 1. Special Design, Suitable for Access Control board. 2. No relay, just for power offer, lock connect to board but via power 3. Built-in current circuit to prevent electric lock inductance reverse, Reduce the load on the access controller 4. With screw column inside, for access control board fixing. 5. Black metal housing, prevent...
Reference: 1243
Brand: Kodicam
Model: KS-900C Specification: Door control: 4 Readers can connect: 4 (4 IN) Memory up to 20,000 Users/Cards Event Buffers/Record up to 20,000 Network Communication via TCP/IP (remote access through internet) Support 125KHz RFID ,13.56MHz IC ,125KHz HID Card. Professional Software: Easy to check and query (Who enter the...
Reference: 3297
Brand: Dahua
Model: ASC3202B Bulit-in Web server features main and sub control modes. The main control mode offers access control Platform functions,can connect with and manage up to 19 sub controllers. The sub-control modes can be added to multiple platforms. Supports 1000 users, 3000 fingerprints, and 300,000 records. Accesses card readers through Wiegand...
Reference: 6602
Brand: ZKTECO
Model: InBio-460-PRO Users: 60,000 Fingerprints: 20,000 Number of Readers Supported: 12 (8 RS-485 and 4 Wiegand) Types of Readers Supported: 26-bit Wiegand FR1500-ID Others upon request Communication: TCP/IP Number of Inputs: 12 (4 Exit Button, 4 Door Status, 4 Aux) Number of Outputs: 8 (4 Form C relay for lock and 4 Form C relay for Aux...
Reference: 3296
Brand: Dahua
Model: ASC2204B-S Support TCP/IP communication Two dual communication protocols: RS-485 and Wiegand (W26 and W34) Holds 100,000 users and stores 500,000 card swiping records. Support interlock, group combination, anti-passback, remote unlock, and more. Support card reader tamper alarm, intrusion alarm, door sensor timeout alarm, duress alarm, illegal...
Reference: 6604
Brand: ZKTECO
Model: EC10 Floor Button Control Relay: 10 Fingerpant Capacity: 3000 RFID Card Capacity: 30,000 Event Capacity: 100,000 Power Supply: 12V DC 1A Communication to PC: TCP/IP. RS485 Communication to EX16: R5485 Number of supported EX16: 3 Dimension(Lx0xH): 242mmx95mmx60mm Net weight: 0.8Kg
Reference: 1219
Brand: Kodicam
Model: KS-8820 The access time zone of one door could have 16 groups, and it can be set up with multi ways of access, such as: Card, Card+ Password Password, Double Card, and First Card to open etc.Support Alarm Output of multi-Alarms, such as: Invalid Card, Invalid Time, Door Alarm and Timed Out of Open. Multi door controller support to lock to each...
Reference: 6612
Brand: ZKTECO
Model: BUN-1460B 4-Door Relays Connection for Exit Button Door Sensor Connection Auxiliary Input Connection Alarm Output Compatible Slave Reader Connection (RS485) Wiegand Input for Compatible Readers Storage: RF-ID Cards and Mobile Credentials: 400,000 (1:N) / 800,000 (1:1) Fingerprints: 50,000 (1:N) / 100,000 (1:1) Faces: 5,000...
Reference: 1324
Brand: Kodicam
Model: SEMAC-D4 Access Control Panel Web based management Software provides for advance management 4 Doors manageable thru one controller card (1- or two-ways access control) 4-Lock\4-Exit 4-Wiegand TCP/IP Upto 20,000 user accounts can be registered 60,000 logs IP Camera integrated if needed for real time image monitoring Economic solution for RFID card...
Reference: 4762
Brand: Hikvision
Model: DS-K2210 Master elevator controller Control 128 floors' permissions 20,000 cards and 50,000 events storage Uplink Communication: TCP/IP and RS-485 Multiple authentication modes Configure and manage device via web client and client software Watchdog and tamper-proof function Accessible Card Reader: 2 Wiegand readers or 2 RS485 readers
Reference: 6601
Brand: ZKTECO
Model: InBio460+Box Number of doors checked: 4 doors Number of Supported Drives 12 (8 RS-485 Drives, 4 26-bit Wiegand Drives) Supported Drive Types 26-bit Wiegand and RS485 FR Series Reader Number of Inputs 12 (4 Device Status Output and 4 Gate Output, 1 AUX) Number of outputs 8 (4 Form C relays for locking and 4 Form C relays for auxiliary...
Reference: 4760
Brand: Hikvision
Model: DS-K2604-G 100,000 cards and 300,000 events storage Communication via TCP/TP, ISUP5.0 and RS-485 ISAPI, OSDP supported 4 doors access control Alarm input/output and alarm event upload RS-485 interface and Wiegand interface for accessing card reader UL294 Standard Qualified Supports battery access
Reference: 1220
Brand: Apagon
Model: KS-3000DT20 KS-3000DT20 Elevator/Multi-Door Access Control Unit can be restricted based on various user credentials, including RFID card, password or biometric. Normal management of the Access Control are "One for One", that means one card reader control one door. Valid card can open the door, invalid card can not open. Bur we can found that in...
Reference: 1244
Brand: Kodicam
Model: KS-720E 4-way input and 4-way alarm output. You can set specific function to any door in the controlled area It can connect to fire control output, when fire signal received, doors in the controlled area will be opened automatically, and fire alarm will be recorded Allow to change anti-intimidation password Set long time unclocking...
Reference: 1242
Brand: Apagon
Model: XP2005-WIFI Authentication: Mode RFID/Password/RFID+Password/Temporary Password Communication: WIFI and Bluetooth User Capacity: 1,000 Number of Doors Supported by Default: 1 Tuya Advanced Access Control Function: Scheduled, Temporary Password, APP Online Authorization, Record Inquiry, Remote Unlock, Automation Wiegand Reader Port: 2 Number of...
Reference: 6600
Brand: ZKTECO
Model: C3-400 Package B Number of Doors Controlled: 4 Door Number of Readers Supported: 4 Number of Inputs: 12 (4 Exit Device, 4 Door Status, 4 AUX) Number of Outputs: 8 (4-Form C Relay for Lock and 4-Form C Relay for Aux Output) Card Holders Capacity: 30,000 Log Events Capacity: 100,000 Weight: 3.55kg Communication: TCP/IP and RS-485* Enclosure:...
Model: ASC2208C-S
