Reference: 3811
Brand: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Reference: 3809
Brand: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3808
Brand: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3807
Brand: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3806
Brand: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 8510
Brand: Apagon
Model: Exit-NPT5A Design with no Mechanical Bolt Infrared no touch Button With the Bottom Box, Easy to Install Three Contact Output, Suitable for all kinds of Locks
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2451
Brand: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

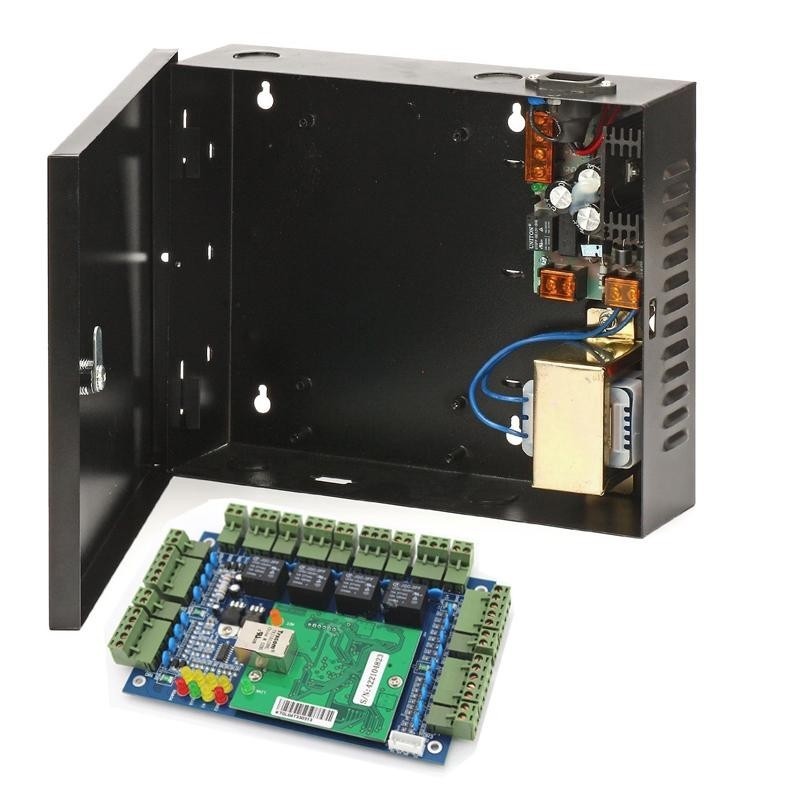

Model: KS-900C
Specification:
Door control: 4
Readers can connect: 4 (4 IN)
Memory up to 20,000 Users/Cards
Event Buffers/Record up to 20,000
Network Communication via TCP/IP (remote access through internet)
Support 125KHz RFID ,13.56MHz IC ,125KHz HID Card.
Professional Software:
Easy to check and query (Who enter the door at what time)
Time and Attendance printable report form can export as excel
Supportable database: Access or SQL
| Parameter | Single Door Control Panel | Multi Door (2) Control Panel | Multi Door (4) Control Panel |
| Model | KS-901 | KS-902 | KS-900 |
| Communication | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive |
| Description | Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button | Control 2 doors, get in and out door by swiping card, or get in by swiping card and get out door by button | Control 4 doors, get in the door by swiping card, and get out door by button |
| Size of PCB board | 160mm *106mm | 160mm *106mm | 218mm *106mm |
| Size of Case | 273mm*228mm*65mm | ||
| Power Supply | 12VDC 4-7A | ||
| Power Consumption of Circuit Board | Less than 100mA | ||
| Input Format of Reader | Wiegand 26 (All card reader with compatible protocol, such as Motorola ,HID,EM,Mifare one etc) | ||
| Quantity of Readers | 2 pcs | 4 pcs | 4 pcs |
| Door Controled | 1 door | 2 doors | 4 doors |
| Door opening time extending setting | 1-600 seconds(adjustable) | ||
| Max q ' ty of controller | No limit | ||
| Operation Temperature | -40℃~70℃ | ||
| Operation Humidity | 10-90 ％ RH ， No Condensation | ||
| Q ' ty of users | 20,000 Users | ||
| Q ' ty of Event Buffers(offline) | 100,000 event buffers | ||
| Power interruption protection measure | High Speed Memory, Records never lose | ||
| Max Distance from Reader to Controller | 100m (suggestion distance 80m) | ||
| Max Distance between Controllers | TCP/IP: Depends on net coverage area | ||
| Package included: | PCB board, software, manual, certificate. carton | ||
| Alarm for long time door open, ilegal break in, intimidate | Yes | ||
| Fire and alarm linkage | If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm, Model is ACB-EA05 | ||
| Complsive open and close door at long time | Yes | ||
| Open door in remote distance | Yes | ||
| Interlock | No | Yes | Yes |
| Anti pass back and tail | Yes | Yes | Yes |
| Multi-card open door | Yes | ||
| Open long time at specified time | Yes | ||
| Electronic map | Yes | ||
| Urgency locking | Yes | ||
| First card unlocking | Yes | ||
| Unlock based on internal and external validation | Yes | ||
| Keypad (card+passwor, supper password) | Yes | ||
Reference: 1011
Brand: Kodicam
Model: KS-280S/260S Features: 1.Fine cooper coils, make sure enough holding force at 600lbs2.A grade Aluminum housing, strong enough for installation3.With LED indicated, RED to open, green to lock4.With monitor sensor feedback, can monitor the door's status (NO/NC)5. Aluminum Anodizing for the plate and housing,6. Blue zinc plating for the locks7. 13mm...
Reference: 1021
Brand: Kodicam
Model: 502-902E 125KHz Proximity /13.56MHz Mifare Card Reader Read Range: Up to 10CM(125KHz)/5CM(13.56MHz) 26/34bit Wiegand (default) Easy to install on Metal Door Frame or Mullion External LED Control External Buzzer Control Indoor / Outdoor Operation Solid Epoxy Potted Waterproof IP65 Reverse Polarity Protection
Reference: 1020
Brand: Kodicam
Model: KS601EM-W Card type: EM or MF Card Metal structure design, anti-vandal Digital backlit keyboard All-in-one, WG26 output/input Three-way to open the door, card, password, card + password The doorbell button and interface: buttons and isolation circuit, connect to any external bell
Reference: 1202
Brand: Kodicam
Model: KS-2315D04W12A Operating Voltage: 3V ~ 12V Approximate consumption current: 30 mA Resonance frequency: 400 Hz ± 100 Hz Loudness: 70dB ~ 85dB
Reference: 1222
Brand: Kodicam
Model: KS-50M Features: 1. Special Design, Suitable for Access Control board. 2. No relay, just for power offer, lock connect to board but via power 3. Built-in current circuit to prevent electric lock inductance reverse, Reduce the load on the access controller 4. With screw column inside, for access control board fixing. 5. Black metal housing, prevent...
Reference: 6602
Brand: ZKTECO
Model: InBio-460-PRO Users: 60,000 Fingerprints: 20,000 Number of Readers Supported: 12 (8 RS-485 and 4 Wiegand) Types of Readers Supported: 26-bit Wiegand FR1500-ID Others upon request Communication: TCP/IP Number of Inputs: 12 (4 Exit Button, 4 Door Status, 4 Aux) Number of Outputs: 8 (4 Form C relay for lock and 4 Form C relay for Aux...
Reference: 6612
Brand: ZKTECO
Model: BUN-1460B 4-Door Relays Connection for Exit Button Door Sensor Connection Auxiliary Input Connection Alarm Output Compatible Slave Reader Connection (RS485) Wiegand Input for Compatible Readers Storage: RF-ID Cards and Mobile Credentials: 400,000 (1:N) / 800,000 (1:1) Fingerprints: 50,000 (1:N) / 100,000 (1:1) Faces: 5,000...
Reference: 1324
Brand: Kodicam
Model: SEMAC-D4 Access Control Panel Web based management Software provides for advance management 4 Doors manageable thru one controller card (1- or two-ways access control) 4-Lock\4-Exit 4-Wiegand TCP/IP Upto 20,000 user accounts can be registered 60,000 logs IP Camera integrated if needed for real time image monitoring Economic solution for RFID card...
Reference: 3296
Brand: Dahua
Model: ASC2204B-S Support TCP/IP communication Two dual communication protocols: RS-485 and Wiegand (W26 and W34) Holds 100,000 users and stores 500,000 card swiping records. Support interlock, group combination, anti-passback, remote unlock, and more. Support card reader tamper alarm, intrusion alarm, door sensor timeout alarm, duress alarm, illegal...
Reference: 4760
Brand: Hikvision
Model: DS-K2604-G 100,000 cards and 300,000 events storage Communication via TCP/TP, ISUP5.0 and RS-485 ISAPI, OSDP supported 4 doors access control Alarm input/output and alarm event upload RS-485 interface and Wiegand interface for accessing card reader UL294 Standard Qualified Supports battery access
Reference: 6601
Brand: ZKTECO
Model: InBio460+Box Number of doors checked: 4 doors Number of Supported Drives 12 (8 RS-485 Drives, 4 26-bit Wiegand Drives) Supported Drive Types 26-bit Wiegand and RS485 FR Series Reader Number of Inputs 12 (4 Device Status Output and 4 Gate Output, 1 AUX) Number of outputs 8 (4 Form C relays for locking and 4 Form C relays for auxiliary...
Reference: 6604
Brand: ZKTECO
Model: EC10 Floor Button Control Relay: 10 Fingerpant Capacity: 3000 RFID Card Capacity: 30,000 Event Capacity: 100,000 Power Supply: 12V DC 1A Communication to PC: TCP/IP. RS485 Communication to EX16: R5485 Number of supported EX16: 3 Dimension(Lx0xH): 242mmx95mmx60mm Net weight: 0.8Kg
Reference: 3297
Brand: Dahua
Model: ASC3202B Bulit-in Web server features main and sub control modes. The main control mode offers access control Platform functions,can connect with and manage up to 19 sub controllers. The sub-control modes can be added to multiple platforms. Supports 1000 users, 3000 fingerprints, and 300,000 records. Accesses card readers through Wiegand...
Reference: 4762
Brand: Hikvision
Model: DS-K2210 Master elevator controller Control 128 floors' permissions 20,000 cards and 50,000 events storage Uplink Communication: TCP/IP and RS-485 Multiple authentication modes Configure and manage device via web client and client software Watchdog and tamper-proof function Accessible Card Reader: 2 Wiegand readers or 2 RS485 readers
Reference: 1220
Brand: Apagon
Model: KS-3000DT20 KS-3000DT20 Elevator/Multi-Door Access Control Unit can be restricted based on various user credentials, including RFID card, password or biometric. Normal management of the Access Control are "One for One", that means one card reader control one door. Valid card can open the door, invalid card can not open. Bur we can found that in...
Reference: 3295
Brand: Dahua
Model: ASC2208C-S TCP/IP communication. Two communication protocols: RS-485 and Wiegand. Supports storing 100,000 user and 500,000 card-swiping records. Supports multi-door interlock, multi-user unlock, anti-passback, and remote unlock. Supports reader tamper alarm, intrusion alarm, unlocking timeout alarm, duress alarm, invalid card exceeding...
Reference: 4763
Brand: Hikvision
Model: DS-K2M0016A Distributed elevator controller Connectable with up to 16 relays to control floor buttons in the elevator RS-485 communication with the master elevator controller DIP switch settings for device address and relay types Up to 8 distributed elevator controllers can be linked to the master elevator controller Control the elevator via the...
Reference: 1242
Brand: Apagon
Model: XP2005-WIFI Authentication: Mode RFID/Password/RFID+Password/Temporary Password Communication: WIFI and Bluetooth User Capacity: 1,000 Number of Doors Supported by Default: 1 Tuya Advanced Access Control Function: Scheduled, Temporary Password, APP Online Authorization, Record Inquiry, Remote Unlock, Automation Wiegand Reader Port: 2 Number of...
Reference: 1244
Brand: Kodicam
Model: KS-720E 4-way input and 4-way alarm output. You can set specific function to any door in the controlled area It can connect to fire control output, when fire signal received, doors in the controlled area will be opened automatically, and fire alarm will be recorded Allow to change anti-intimidation password Set long time unclocking...
Reference: 6600
Brand: ZKTECO
Model: C3-400 Package B Number of Doors Controlled: 4 Door Number of Readers Supported: 4 Number of Inputs: 12 (4 Exit Device, 4 Door Status, 4 AUX) Number of Outputs: 8 (4-Form C Relay for Lock and 4-Form C Relay for Aux Output) Card Holders Capacity: 30,000 Log Events Capacity: 100,000 Weight: 3.55kg Communication: TCP/IP and RS-485* Enclosure:...
Model: KS-900C
Specification:
Door control: 4
Readers can connect: 4 (4 IN)
Memory up to 20,000 Users/Cards
Event Buffers/Record up to 20,000
Network Communication via TCP/IP (remote access through internet)
Support 125KHz RFID ,13.56MHz IC ,125KHz HID Card.
Professional Software:
Easy to check and query (Who enter the door at what time)
Time and Attendance printable report form can export as excel
Supportable database: Access or SQL
