Reference: 3811
Brand: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Reference: 3809
Brand: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3808
Brand: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3807
Brand: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3806
Brand: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 8510
Brand: Apagon
Model: Exit-NPT5A Design with no Mechanical Bolt Infrared no touch Button With the Bottom Box, Easy to Install Three Contact Output, Suitable for all kinds of Locks
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2451
Brand: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

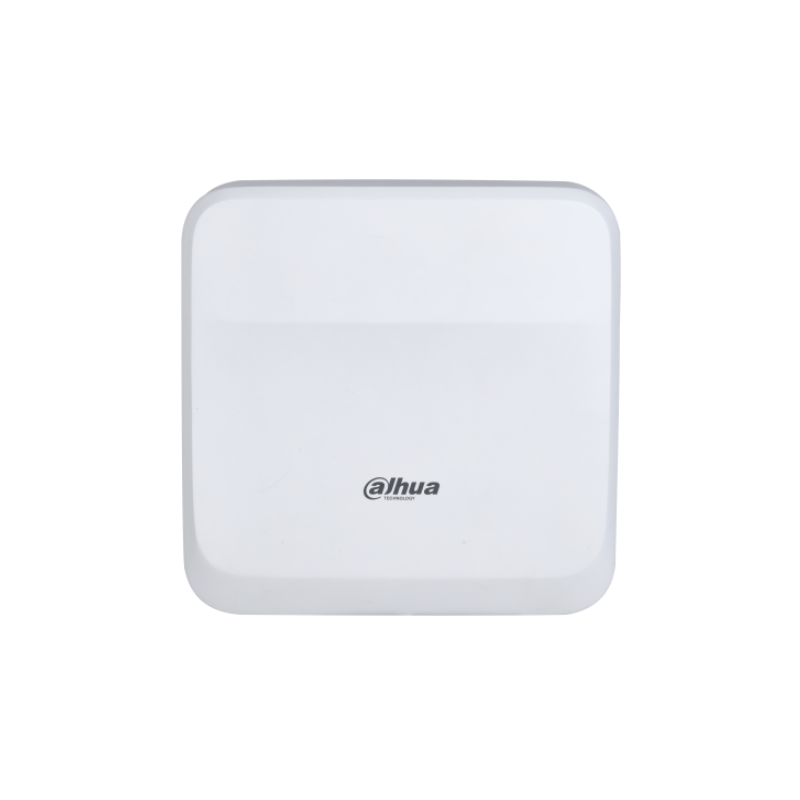

Model: ASC3202B
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Internet Protocol |
P2P; IPv4; DNS; DDNS; TCP; UDP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF; CGI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SDK and API |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Type |
Controller |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Buzzer |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
PC + ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Unlock Mode |
Card; remote; password; fingerprint; combination unlock |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Period List |
128 periods |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Holiday Period |
128 periods |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Update |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Blocklist/Allowlist |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Peripheral Card Reader |
Supports 2 × RS-485 card readers; 2 × Wiegand card readers |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multi-user Authentication |
Yes (Use with platform) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Real-time Monitoring |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multi-factor Authentication |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Web Configuration |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User (Card) Type |
General users, patrol users, blocklist users, VIP users, guest users, custom user 1, custom user 2, and other users |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Capacity |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User Capacity |
1000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Fingerprint Capacity |
3000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Capacity |
5000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Record Capacity |
300,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RS-485 |
3 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wiegand |
2 × input |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Port |
1 × RJ-45 10/100 Mbps Ethernet port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Input |
2 (digital quantity) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Output |
2 (digital quantity) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Linkage |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Exit Button |
2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Door Status Detection |
2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lock Control |
2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Tamper Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Duress Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Door Sensor Timeout |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Intrusion |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illegal Card Exceeding Threshold |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Duress Fingerprint |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
Power in: 12V DC or Power over Ethernet IEEE 802.3at Type 2 Class 4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IK06 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Standby Power (no peripheral devices): ≤2 W Working Power: Total power budget if powered by DC: 1700 mA at 12 V for peripheral devices (locks, readers etc.) Total power budget if powered by PoE: 1200 mA at 12 V for peripheral devices (locks, readers etc.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
186.4 mm × 185.8 mm × 58.3mm (7.34" × 7.31" × 2.30") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
254 mm × 243 mm × 86 mm (10.00" × 9.57" × 3.39") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–10 °C to +55 °C (+14 °F to 131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
5%–95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Environment |
Indoor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.99 kg (2.18 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Surface Mount; Guide Rail Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE; FCC; UL |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reference: 6605
Brand: ZKTECO
Model: EX16 Floor Button Control Relay: 16 Communication to EC10: RS485 RS485 address: Set by DIP switch Power Supply: 12V DC 1A Dimension: 160mmx106mm Net weight: 0.2Kg
Reference: 4760
Brand: Hikvision
Model: DS-K2604-G 100,000 cards and 300,000 events storage Communication via TCP/TP, ISUP5.0 and RS-485 ISAPI, OSDP supported 4 doors access control Alarm input/output and alarm event upload RS-485 interface and Wiegand interface for accessing card reader UL294 Standard Qualified Supports battery access
Reference: 1221
Brand: Kodicam
Model: KS-50T Features: 1. Special Design, Suitable for Access Control board. 2. Built-in current circuit to prevent electric lock inductance reverse, Reduce the load on the access controller 3. With screw column inside, for access control board fixing. 4. Black metal housing, prevent the power and access control board 5. Produced with High Quality...
Reference: 4762
Brand: Hikvision
Model: DS-K2210 Master elevator controller Control 128 floors' permissions 20,000 cards and 50,000 events storage Uplink Communication: TCP/IP and RS-485 Multiple authentication modes Configure and manage device via web client and client software Watchdog and tamper-proof function Accessible Card Reader: 2 Wiegand readers or 2 RS485 readers
Reference: 1219
Brand: Kodicam
Model: KS-8820 The access time zone of one door could have 16 groups, and it can be set up with multi ways of access, such as: Card, Card+ Password Password, Double Card, and First Card to open etc.Support Alarm Output of multi-Alarms, such as: Invalid Card, Invalid Time, Door Alarm and Timed Out of Open. Multi door controller support to lock to each...
Reference: 1220
Brand: Apagon
Model: KS-3000DT20 KS-3000DT20 Elevator/Multi-Door Access Control Unit can be restricted based on various user credentials, including RFID card, password or biometric. Normal management of the Access Control are "One for One", that means one card reader control one door. Valid card can open the door, invalid card can not open. Bur we can found that in...
Reference: 6612
Brand: ZKTECO
Model: BUN-1460B 4-Door Relays Connection for Exit Button Door Sensor Connection Auxiliary Input Connection Alarm Output Compatible Slave Reader Connection (RS485) Wiegand Input for Compatible Readers Storage: RF-ID Cards and Mobile Credentials: 400,000 (1:N) / 800,000 (1:1) Fingerprints: 50,000 (1:N) / 100,000 (1:1) Faces: 5,000...
Reference: 6601
Brand: ZKTECO
Model: InBio460+Box Number of doors checked: 4 doors Number of Supported Drives 12 (8 RS-485 Drives, 4 26-bit Wiegand Drives) Supported Drive Types 26-bit Wiegand and RS485 FR Series Reader Number of Inputs 12 (4 Device Status Output and 4 Gate Output, 1 AUX) Number of outputs 8 (4 Form C relays for locking and 4 Form C relays for auxiliary...
Reference: 6600
Brand: ZKTECO
Model: C3-400 Package B Number of Doors Controlled: 4 Door Number of Readers Supported: 4 Number of Inputs: 12 (4 Exit Device, 4 Door Status, 4 AUX) Number of Outputs: 8 (4-Form C Relay for Lock and 4-Form C Relay for Aux Output) Card Holders Capacity: 30,000 Log Events Capacity: 100,000 Weight: 3.55kg Communication: TCP/IP and RS-485* Enclosure:...
Reference: 6604
Brand: ZKTECO
Model: EC10 Floor Button Control Relay: 10 Fingerpant Capacity: 3000 RFID Card Capacity: 30,000 Event Capacity: 100,000 Power Supply: 12V DC 1A Communication to PC: TCP/IP. RS485 Communication to EX16: R5485 Number of supported EX16: 3 Dimension(Lx0xH): 242mmx95mmx60mm Net weight: 0.8Kg
Reference: 3296
Brand: Dahua
Model: ASC2204B-S Support TCP/IP communication Two dual communication protocols: RS-485 and Wiegand (W26 and W34) Holds 100,000 users and stores 500,000 card swiping records. Support interlock, group combination, anti-passback, remote unlock, and more. Support card reader tamper alarm, intrusion alarm, door sensor timeout alarm, duress alarm, illegal...
Reference: 6602
Brand: ZKTECO
Model: InBio-460-PRO Users: 60,000 Fingerprints: 20,000 Number of Readers Supported: 12 (8 RS-485 and 4 Wiegand) Types of Readers Supported: 26-bit Wiegand FR1500-ID Others upon request Communication: TCP/IP Number of Inputs: 12 (4 Exit Button, 4 Door Status, 4 Aux) Number of Outputs: 8 (4 Form C relay for lock and 4 Form C relay for Aux...
Reference: 1243
Brand: Kodicam
Model: KS-900C Specification: Door control: 4 Readers can connect: 4 (4 IN) Memory up to 20,000 Users/Cards Event Buffers/Record up to 20,000 Network Communication via TCP/IP (remote access through internet) Support 125KHz RFID ,13.56MHz IC ,125KHz HID Card. Professional Software: Easy to check and query (Who enter the...
Reference: 1324
Brand: Kodicam
Model: SEMAC-D4 Access Control Panel Web based management Software provides for advance management 4 Doors manageable thru one controller card (1- or two-ways access control) 4-Lock\4-Exit 4-Wiegand TCP/IP Upto 20,000 user accounts can be registered 60,000 logs IP Camera integrated if needed for real time image monitoring Economic solution for RFID card...
Reference: 1222
Brand: Kodicam
Model: KS-50M Features: 1. Special Design, Suitable for Access Control board. 2. No relay, just for power offer, lock connect to board but via power 3. Built-in current circuit to prevent electric lock inductance reverse, Reduce the load on the access controller 4. With screw column inside, for access control board fixing. 5. Black metal housing, prevent...
Reference: 3295
Brand: Dahua
Model: ASC2208C-S TCP/IP communication. Two communication protocols: RS-485 and Wiegand. Supports storing 100,000 user and 500,000 card-swiping records. Supports multi-door interlock, multi-user unlock, anti-passback, and remote unlock. Supports reader tamper alarm, intrusion alarm, unlocking timeout alarm, duress alarm, invalid card exceeding...
Model: ASC3202B
