Referencia: 5981
Marca: Apagon
Model: 5M-16AWG MULTI-CONTACT ELECTRICAL EXTENSION 3-OUTPUT STRIP TYPE 5MTS LONG HARD CABLE, HIGH RESISTANCE AND DURABILITY RESISTS FOR OUTDOORS
Referencia: 3811
Marca: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Referencia: 3809
Marca: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 3808
Marca: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 3807
Marca: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 3806
Marca: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2451
Marca: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

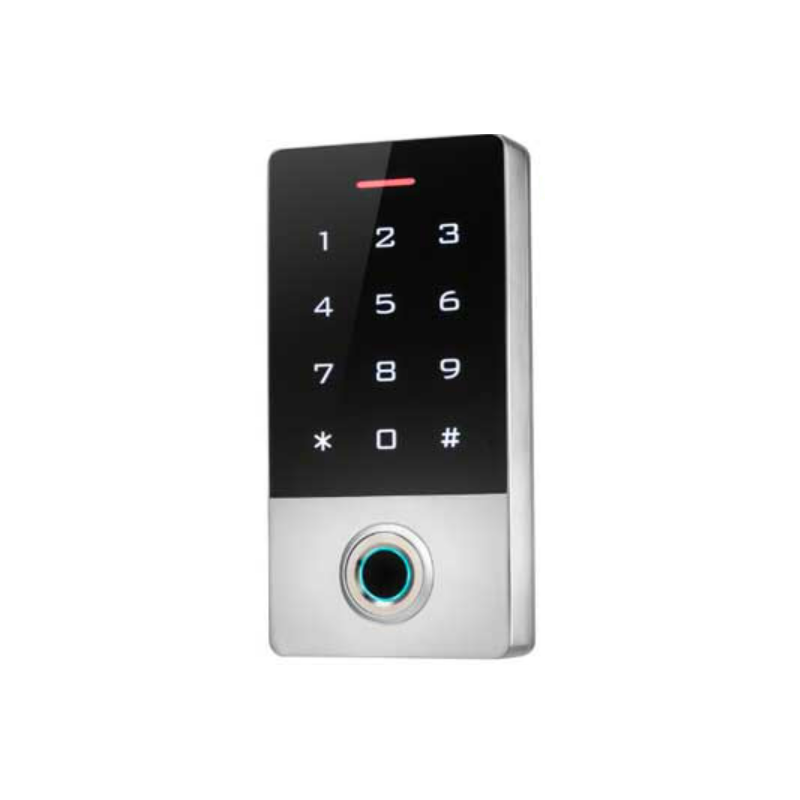

Model: TF1-EM-W
| Materials: | Zinc Alloy Housing |
| APP Model | Tuya smart control |
| Mobile available | IOS 7.0 , Android 4.3 above |
| Voltage: | 12V - 24V DC |
| Current |
Open max current: 100mA Max Static current: 35mA max |
| User Capacity: |
10000 users for Card or pin 600 users for Fingerprint |
| Frequency distance | 2- 6cm |
| Wiegand Interface | Build in Wg26-44 in & out |
| Wiring connections |
Relay output, Exit button, Alarm, Door Contact Wiegand in & out |
| PIN Length | 4 - 6 digits |
| Card type: |
EM 12.5Khz and HID Card (Optional) Mifare 13.56Mhz and CPU Card (optional) |
| IP rate: | IP68 |
| Operating Temp | -40℃ - 60℃ |
| Operating Humidity | 0-95% |
| Open door method | Fingerpint Card, pin , Tuya APP |
| Door relay time | 1-300S |
| Lock output load | 2Amp Max. |
| Colour: | Silver |
| Dimension | 140mm * 70 mm * 22mm |
| Weight: | 0.57kg |
| Box Size | 19*13*6 cm |
| Packing : | 54pcs per Cartons |
| Carton Size: | 56*41*40 CM |
| Total GS Weight: | 32kg/ctn |
Features:
· Read 125KHz EM Card and HID Card (Optional)
· Read 13.56MHz Mifare card and CPU card (Optional)
· Touch backlight keypad
· Contain reader mode, the transmission format could be adjusted by user.
· Support admin add card and admin delete card
· 10,000 card/pin users and 600 fingerprint users.
· With Wiegand input and output, Can be worked as reader only
· With Tuya App, Can control it from smart phone
Wiring Indication:
| Colour | Function | Description |
| Green | D0 | WG output D0 |
| White | D1 | WG output D1 |
| Yellow | OPEN | Exit button one end(the other end connected GND) |
| Red | 12V+ | 12V + DC Regulated Power Input |
| Black | GND | 12V - DC Regulated Power Input |
| Blue | NO | Relay normally-on end(Connect positive electric lock "-") |
| Purple | COM | Relay Public end, connect GND |
| Orange | NC | Relay Public end, connect NC |
Connector Diagram:
Model one: Connector to Normal Power supply
Model Two: Connector to Special access Control Power supply
Worked As as Reader Only
Referencia: 1029
Marca: Kodicam
Model: KS-T03 Product Name: RFID Card,125Khz; Material: Plastic, PVC Standard: EM4200, EM4100; Reader Distance: 5-12mm Compatible with all ID door access devices or ID reader Contactless transmission of data, only can be read, can’t be rewritten, or used to copy other RFID cards 125Khz, RFID type only, only compatible with the RFID 125Khz Card Reader
Referencia: 1028
Marca: Kodicam
Model: KS-T01 Access control EM4100 chip 125KHZ RFID ID thin card Product Dimension:86*54*0.8(mm) Product Chip: EM Product Frequency: 125KHz Product Weight: 7 g
Referencia: 1299
Marca: Kodicam
Model: ProxKey-HID Configuration: 1346LNSMN Frequency: 125 KHz Color: Black with gray
Referencia: 1030
Marca: Kodicam
Model: KS-T05 High quality copper coils chip. PVC housing, comfortable feel Smaller, easy to bring 100pcs per bag Color with blue, yellow, red, grey
Referencia: 2500
Marca: Kodicam
Model: KS-HF3-BT Bluetooth TouchKey Access Controller Capacitive Fingerprint Sensor,touch keypad Waterproof, conforms to IP66 Metal housing, anti-vandal Card type: EM Card or Mifare Card iOS and Android available Add / Delete users by APP Support checking Opening Record Support Gateway Multiple Access Modes: Smartphone, Fingerprint, Card, PIN
Referencia: 2514
Marca: Apagon
Model: F695-V-WIFI 2.4G WiFi connection; Pixel: 2.0Mpx (1080P); Visual Angle: Horizontal 140° (Colorful at daytime, black and white at night) TF card with unlimited capacity; voice intercom Motion detection; Playback; Take picture/video; Unlock remotely. User Capacity: 1000(100 fingerprints + 900 card&PINs); Common User: 988; Visitor User: 10 Panic...
Referencia: 2505
Marca: Apagon
Model: K35EM-WIFI Digital backlit keypad Multi-function standalone access controller and reader, WG26 output/Input Capacity: 10000 cards/ codes Access ways: card, code, card + code, mobile APP Card type: EM/MF/HID/CPU Plastic case Lock output: ≤1A Working voltage: DC12V-24V...
Referencia: 2502
Marca: Apagon
Model: KS-HF3-WIFI Capacitive Fingerprint Sensor, touch keypad Waterproof, conforms to IP66 Metal housing, anti-vandal Card type: EM Card or Mi fare Card iOS and Android available Add / Delete users by APP Can set Time Restriction for users Temporary Password (One-time or Period Code) Support checking Opening Record Remotely Access (Support 3G/4G/5G)...
Referencia: 2503
Marca: Apagon
Model: KS-H3-WIFI Touch keypad Waterproof, conforms to IP66 Metal housing, anti-vandal Card type: EM Card or Mi fare Card iOS and Android available Add / Delete users by APP Can set Time Restriction for users Temporary Password (One-time or Period Code) Support checking Opening Record Remotely Access (Support 3G/4G/5G) Multiple Access Modes:...
Referencia: 2513
Marca: Apagon
Model: T695-V-WIFI 2.4G WiFi connection; Pixel: 2.0Mpx (1080P); Visual Angle: Horizontal 140° IR-CUT (Colorful at daytime, black and white at night) TF card with unlimited capacity; Full duplex voice intercom Motion detection; Playback; Take picture/video; Unlock remotely User Capacity: 1000; Common User: 988; Visitor User: 10; Panic User: 2; PIN...
Referencia: 2501
Marca: Apagon
Model: KS-601-WIFI The excellent design, surface waterproof keyboard, silver plating, fashion style. The multi-function equipment. The high and low temperature environment to use, surface waterproof. The storage capacity of 2000 user card, 2000 user password. Open three ways: card, password. Card and password. Ultra-low power consumption: Standby current...
Referencia: 1294
Marca: Kodicam
Model: KS-T12-Wifi Waterproof degree, IP65/IP68 (Can be selected) Full programming from the keypad 2000 users, supports Card, PIN, Card + PIN Frequency: 125KHz Can be used as a standalone keypad Backlight keys Wiegand 26 input for connection to external reader Wiegand 26 output for connection to a controller Adjustable Alarm time and Door Open time Very...
Referencia: 2504
Marca: Apagon
Model: T1202EM-WIFI Digital backlit keypad Multi-function standalone access controller and reader, WG26 output/Input Capacity: 2000 cards/ codes Access ways: card, code, card + code, mobile APP
Model: TF1-EM-W
