Referencia: 8527
Marca: Apagon
Model: Exit-NMEB1406-W Surface mount: Zinc Alloy Dimensions: 80Lx32Wx23H(mm) Input: DC12V
Referencia: 8515
Marca: Apagon
Model: Exit-NMEB1407 Surface mount: Zinc Alloy Input: DC12V Output Contact:NO/NC/COM
Referencia: 8514
Marca: Apagon
Model: Exit-NPT9E-T Design with no Mechanical Bolt Infrared no touch Button With the Bottom Box, Easy to Install Three Contact Output, Suitable for all kinds of Locks
Referencia: 8511
Marca: Apagon
Model: Exit-NPT5D-T Design with no Mechanical Bolt Infrared no touch Button With the Bottom Box, Easy to Install Three Contact Output, Suitable for all kinds of Locks
Referencia: 9061
Marca: Apagon
Model: Board-2DRA-011 Inside remote control of center motor, one board Input voltage: AC110V-250V 50HZ/60HZ Motor voltage: AC110V-250V 50HZ/60HZ Protective Tube: 250V 10A Output Power: 1000W Temperature: -20°C -65°C
Referencia: 5982
Marca: Apagon
Model: 8M-16AWG MULTI-CONTACT ELECTRICAL EXTENSION 3-OUTPUT STRIP TYPE 8MTS LONG HARD CABLE, HIGH RESISTANCE AND DURABILITY RESISTS FOR OUTDOORS
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2451
Marca: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

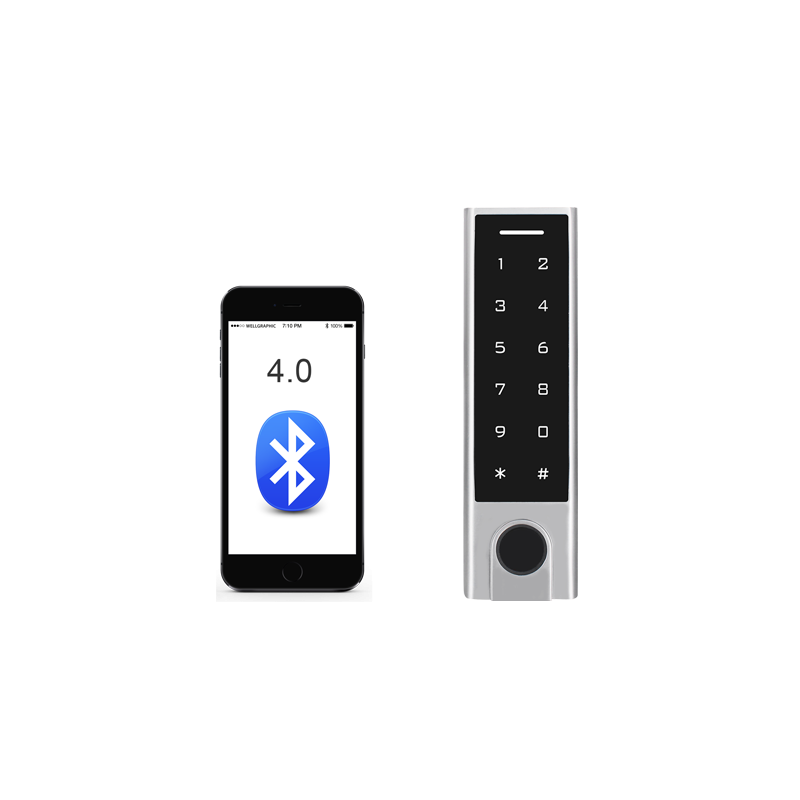

Model: KS-HF3-BT
|
User Capacity
Common User
Visitor User Panic User |
Hardware User: 1000 APP User: 100 (including 255 fingerprint / card/ PIN users)
988 (100 Fingerprint Users + 888 PIN/Card Users)
10
2 |
| PIN Length | 4~6 digits |
|
Operating Voltage
Idle Current
Active Current |
12~18V DC
≤ 60mA
≤ 150mA |
| Proximity Card Reader Radio Technlogy Read Range |
EM or Mifare 125KHz/13.56MHz 2~6cm |

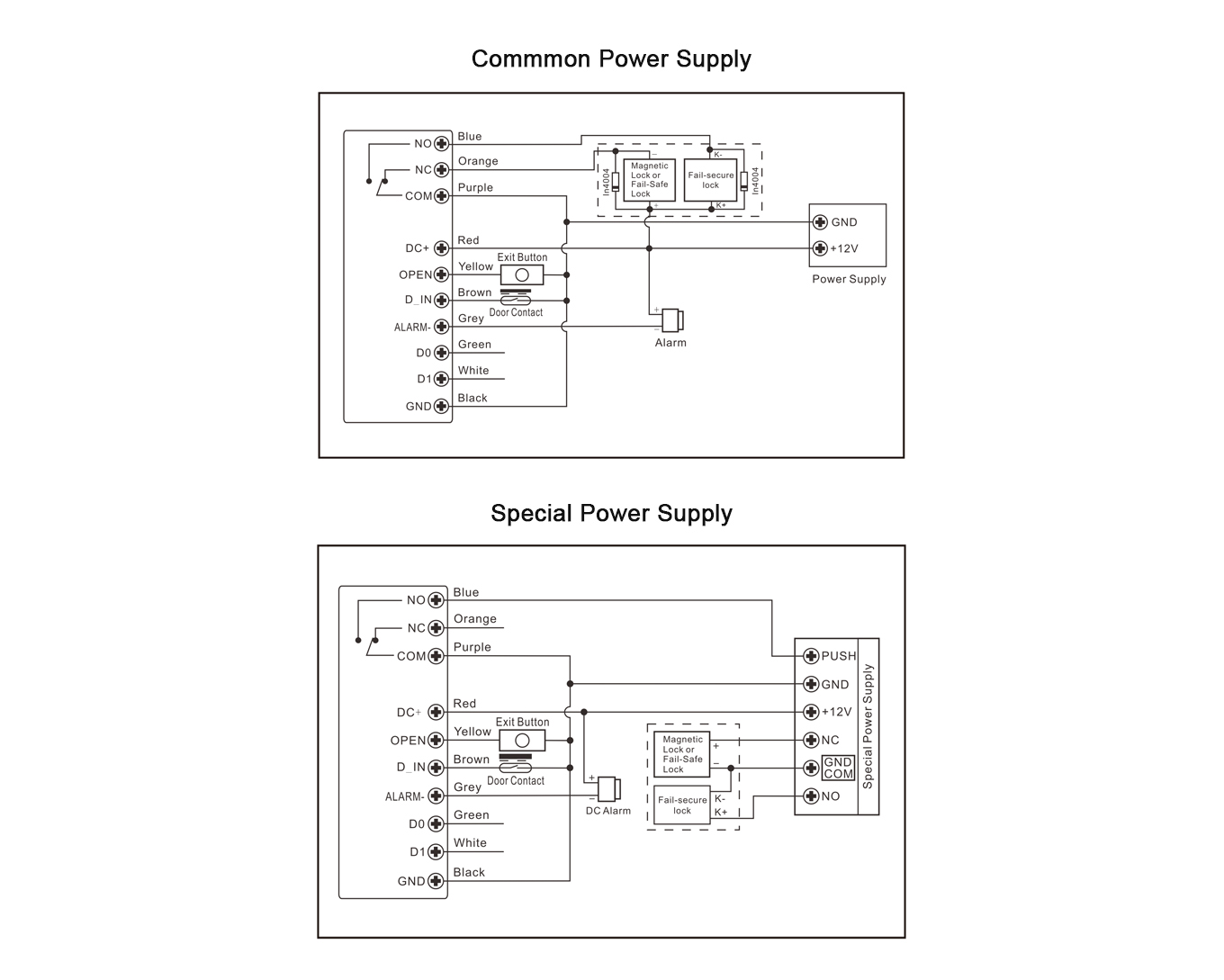

| Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand input/output |
|
Relay
Adjustable Relay Output Time
Lock Output Load
|
One (NO, NC, Common)
0~99 Seconds (5 seconds default)
2 Amp Maximum
|
| Wiegand Interface PIN Output |
EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits) Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output (Factory default: Wiegand 34bits) 4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits) |
|
Environment
Operating Temperature
Operating Humidity
|
Meets IP66
-30°C ~ 60°C (-22°F ~ 140°F)
0%RH ~ 98%RH
|
|
Physical
Color
Dimensions
Unit Weight
Shipping Weight
|
Zinc-Alloy
Sliver & Black
L148 x W43.5 x H22 (mm)
330g
405g
|
Referencia: 2504
Marca: Apagon
Model: T1202EM-WIFI Digital backlit keypad Multi-function standalone access controller and reader, WG26 output/Input Capacity: 2000 cards/ codes Access ways: card, code, card + code, mobile APP
Referencia: 2502
Marca: Apagon
Model: KS-HF3-WIFI Capacitive Fingerprint Sensor, touch keypad Waterproof, conforms to IP66 Metal housing, anti-vandal Card type: EM Card or Mi fare Card iOS and Android available Add / Delete users by APP Can set Time Restriction for users Temporary Password (One-time or Period Code) Support checking Opening Record Remotely Access (Support 3G/4G/5G)...
Referencia: 2514
Marca: Apagon
Model: F695-V-WIFI 2.4G WiFi connection; Pixel: 2.0Mpx (1080P); Visual Angle: Horizontal 140° (Colorful at daytime, black and white at night) TF card with unlimited capacity; voice intercom Motion detection; Playback; Take picture/video; Unlock remotely. User Capacity: 1000(100 fingerprints + 900 card&PINs); Common User: 988; Visitor User: 10 Panic...
Referencia: 2501
Marca: Apagon
Model: KS-601-WIFI The excellent design, surface waterproof keyboard, silver plating, fashion style. The multi-function equipment. The high and low temperature environment to use, surface waterproof. The storage capacity of 2000 user card, 2000 user password. Open three ways: card, password. Card and password. Ultra-low power consumption: Standby current...
Referencia: 1294
Marca: Kodicam
Model: KS-T12-Wifi Waterproof degree, IP65/IP68 (Can be selected) Full programming from the keypad 2000 users, supports Card, PIN, Card + PIN Frequency: 125KHz Can be used as a standalone keypad Backlight keys Wiegand 26 input for connection to external reader Wiegand 26 output for connection to a controller Adjustable Alarm time and Door Open time Very...
Referencia: 2505
Marca: Apagon
Model: K35EM-WIFI Digital backlit keypad Multi-function standalone access controller and reader, WG26 output/Input Capacity: 10000 cards/ codes Access ways: card, code, card + code, mobile APP Card type: EM/MF/HID/CPU Plastic case Lock output: ≤1A Working voltage: DC12V-24V...
Referencia: 1295
Marca: Kodicam
Model: TF1-EM-W Read 125KHz EM / HID Card / 13.56MHz Misfire / CPU Card (Factory default: EM 125KHz) Metal backlight keypad Contains card reader mode. The transmission format could be adjusted by user. Supports different access ways: Entry by Card + Code or Entry by multi cards Support master added a card and deleted the card User capacity: 10,000 users
Referencia: 2503
Marca: Apagon
Model: KS-H3-WIFI Touch keypad Waterproof, conforms to IP66 Metal housing, anti-vandal Card type: EM Card or Mi fare Card iOS and Android available Add / Delete users by APP Can set Time Restriction for users Temporary Password (One-time or Period Code) Support checking Opening Record Remotely Access (Support 3G/4G/5G) Multiple Access Modes:...
Referencia: 2513
Marca: Apagon
Model: T695-V-WIFI 2.4G WiFi connection; Pixel: 2.0Mpx (1080P); Visual Angle: Horizontal 140° IR-CUT (Colorful at daytime, black and white at night) TF card with unlimited capacity; Full duplex voice intercom Motion detection; Playback; Take picture/video; Unlock remotely User Capacity: 1000; Common User: 988; Visitor User: 10; Panic User: 2; PIN...
Model: KS-HF3-BT
