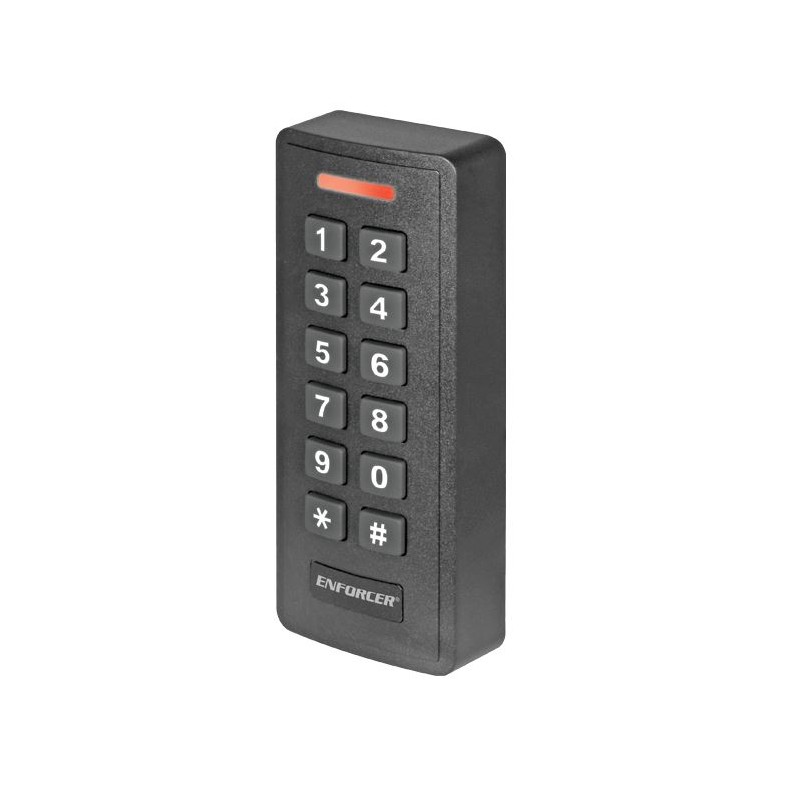

SK-2612-SPQ Outdoor Stand-Alone / Wiegand Keypad with Proximity Reader

Model: SK-2612-SPQ

• 1,000 Users (up to 998 users and 2 duress users)

• User code length 4~6 digits

• 9~18 VDC Operation, low current draw – 105mA max.

• Form C relay output – 2A@12VDC

• Adjustable output time – 0.5~99s, or toggle

• Built-in tamper alarm and external alarm (duress) output

• Backlit keypad and multicolor status LED

• EM 125kHz, Proximity cards (PR-K1S1-A) and Keyfobs (PR-K1K1-AQ) sold separately

• Easy transfer of users to additional devices using Wiegand output

• All features programmed directly on the keypad: No need for an external programmer

• Egress input lets users exit the premises without a code/card

• Can serve as either Wiegand reader or controller, both output and input are selectable 26~37 bits

• 2-Door interlock function

• Epoxy-filled black ABS plastic housing –Weatherproof IP66
