Referencia: 8592
Marca: Apagon
Model: Exit-PHS870M8-E Size(mm): 115L*70W*50H Power Supply: DC12V Output Contact: NO/NC/COM Material: Stainless steel panel
Referencia: 8591
Marca: Apagon
Model: Exit-PHS870M9Z-E Size(mm):115L*70W*38H Power Supply: DC12V Output Contact: NO/NC/COM Reset Mode: Manual reset Material: Stainless steel panel
Referencia: 8590
Marca: Apagon
Model: Exit-PHMS886-H Size(mm):86L*86W*34H Power Supply: DC12V Output Contact: NO/NC/COM
Referencia: 8589
Marca: Apagon
Model: Exit-PHMS870-H Size(mm):115L*70W*34H Power Supply: DC12V Output Contact: NO/NC/COM Material: Stainless Steel Panel
Referencia: 8587
Marca: Apagon
Model: Exit-PHMS870-P Size(mm):115L*70W*34H Power Supply: DC12V Output Contact: NO/NC/COM Material: Stainless Steel Panel
Referencia: 8588
Marca: Apagon
Model: Exit-PHMS886-P Size(mm):86L*86W*34H Power Supply: DC12V Output Contact: NO/NC/COM
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2451
Marca: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

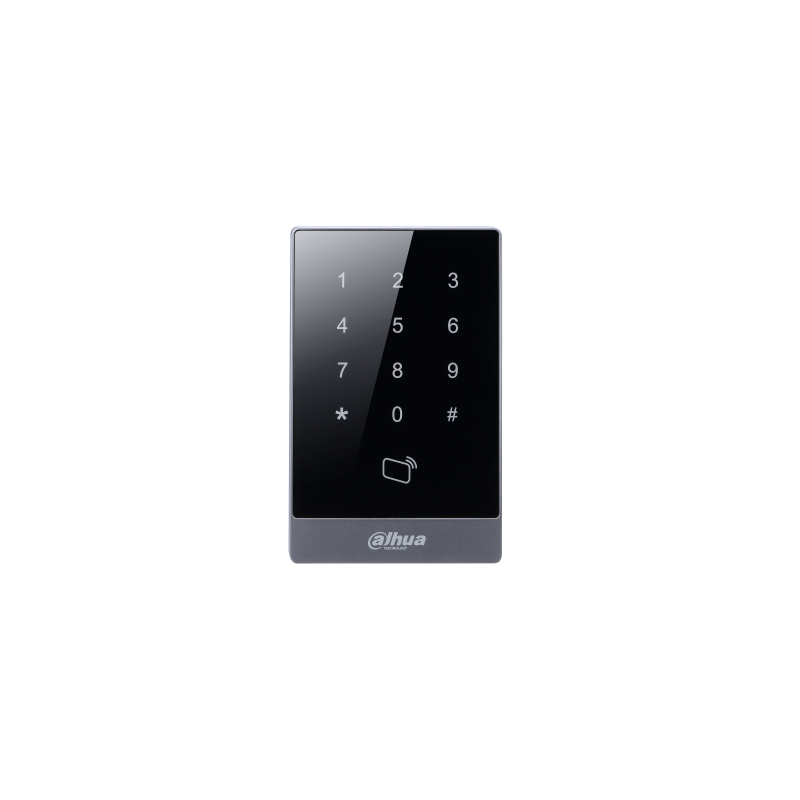

Model: ASR1101A
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mode |
ASR1101A |
ASR1101A-D |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
8 Bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Read |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Read Format |
13.56MHz |
125KHz |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Read Range |
1cm–4cm (max.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Reading time |
<0.1s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Tamper Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interface |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
To Controller |
RS485, Wiegand34 (Wiegand 26 optional) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Keypad |
12Keys (0-9,*,#) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Sensitive touch keypad |
Blue backlight |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Beep Tone |
Buzzer |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
9V–15V DC/100mA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
-30°C to +60°C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Humidity |
≤95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimension(W×D×H) |
87mm×13mm×136mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Weight |
0.25kg |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Environment |
Indoor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certificates |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
CE |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
FCC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Referencia: 3269
Marca: Dahua
Model: IC-S50 Standard: MIFARE S50, 13.56 MHz Compatibility: ISO/IEC 14443A Range: Approximately 10 cm (3.94 in.) Dimensions: 86.0 mm x 54.0 mm x 0.80 mm (3.39 in. x 2.13 in. x 0.03 in.) Weight: 0.006 kg (0.013 lb) Manufacturer/Brand: Dahua
Referencia: 3285
Marca: Dahua
Features: Standard: MIFARE S50, 13.56MHz Compatibility: ISO/IEC 14443A Range: Approximately 10 cm (3.94 in.) Manufacturer/Brand: Dahua
Referencia: 3287
Marca: Dahua
Model: Mifare Tag Size: customized Memory configuration: 1k byte, 4K Byte Reading distance: 1-3cm Printing craft & encoding: printing and laser logo, barcoding Chip:MIFARE 1K, MIFARE 4K Application: access control system
Referencia: 1276
Marca: Kodicam
Model: KS-280W Features: 1. Fail safe, Power to lock 2. Collinear Load Test 280kg, 600pounds 3. Dual Voltage 12 or 24 VDC (optional) 4. The Standard Voltage is 12VDC when Finished 5. MOV Provides Reverse Current Protection 6. Suitable for Wooden Door, Glass Door, Metal Door, Fireproof Door 7. LED Indicates the Lock Status, lock Status sensor (NO/NC/COM)...
Referencia: 642
Marca: Kodicam
Model: ASI-8910 Features: Independent and concise, configurable by the panel without connecting to computer Three modes of access: Card alone, Card plus Password and Password alone. Facilitated with a capacity of 800 cards with one password. Supportive for disassemble-preventative alarm. Exit button input and doorbell input. All data can be kept for...
Referencia: 2597
Marca: Kodicam
Model: K-T4EM Features: Metal case, anti-vandal Digital backlit touch keypad Multi-function standalone access controller and reader, WG26 output/ Input Capacity: 2000 cards/ codes Three ways to open the door: Card, password, card + password
Referencia: 581
Marca: SECO-LARM
Model: SK-B241-PQ No Codes to Remember – Intuitive, visual app-based programming and management, 1,000 users. More Than Access – Control doors, gates, lighting, machinery, etc. Secure, Integrated Bluetooth – Passcode protected, AES 128 Output Modes – Timed relock (1~1,800 seconds), continually unlocked or locked, toggle User Customization – Individually...
Referencia: 1272
Marca: Kodicam
Model: 502-K031E Card type: EM Card Multi-function standalone device can be used as a WG26 card reader Capacity: 2000 card users, 2000 PIN users Three-door open methods: card, code, card+code Backlit keypad: Can operate keyboard in the dark night
Referencia: 582
Marca: SECO-LARM
Model: SK-B941-PQ No Codes to Remember – Intuitive, visual app-based programming and management, 1,000 users. More Than Access – Control doors, gates, lighting, machinery, etc. Secure, Integrated Bluetooth – Passcode protected, AES 128 Output Modes – Timed relock (1~1,800 seconds), continually unlocked or locked, toggle User Customization –...
Referencia: 3291
Marca: Dahua
Model: ASI1201E Support 30,000 valid cards & 60,000 records Support multiple cards (default IC card) (“-D” means ID EM card) Support card, password and combination TCP/IP to PC Wiegand or RS-485 interface to reader Door time out alarm, intrusion alarm, duress alarm and tamper alarm Anti-passback, multi-card open Water-proof design Support 128...
Referencia: 593
Marca: SECO-LARM
Model: SD-962H-8LAQ Non-handed installation External and internal entry lever 13 code buttons, over 8,000 possible codes Lock code easily changed Suitable for door thicknesses from1-3/16″~2-1/8″ (30~54 mm) Tubular latchbolt included Heavy-duty steel case US32D/630 Fully mechanical No batteries or other power source required Free...
Referencia: 1230
Marca: Kodicam
Model: KCC1EM Pure Zinc alloy case; waterproof conform to IP 68 Built-in 125KHz OR 13.56MHz card reader Perfect digital backlit key, the back light can be set to Normal ON, Normal OFF or Human-Approach ON With anti-tamper Alarm, door contact Alarm, Anti-duress Alarm function Add and delete card user quickly With Manager cards Can...
Referencia: 586
Marca: SECO-LARM
Model: SK-1323-SPQ 12~24 VAC/VDC operation 1,010 Users (Output #1: 1,000 users, Output #2: 10 users) 2 Form C relays, each rated 1 Amp @ 30VDC Each relay has programmable output time from 1~99 seconds or toggle Output #2 can be programmed for use with a doorbell 2 Egress inputs and 1 door sensor input Backlit keys for easy nighttime use...
Referencia: 3266
Marca: Dahua
Model: ASR1101M Support RS485, Wiegand34 protocol (Wiegand 26 optional) 13.56MHz(Mifare) All-metal buttons with blue backlight Red and Green indicator LEDs Watch dog function ensure device free from halting Surface mounted installation
Referencia: 3279
Marca: Dahua
Model: ASR2201D-BD Wiegand34(26 optional) bits RS-485 protocol Support OSDP; 125KHz (EM-ID) Water-proof design Red, blue and green indicator LEDs Surface mounted installation
Referencia: 3272
Marca: Dahua
Model: ASI2201H-W PC + ABS, suitable for indoor and outdoor use. 2.4" LCD screen with a resolution of 240 × 320. IP65 rated (silicone sealant is needed, see Quick Start Guide). Option to switch between reader and controller mode for added convenience. Card/remote/password unlock and unlock through their combinations. IC card,ID card and NFC...
Referencia: 1231
Marca: Kodicam
Model: KT-K302A Features: Built-in proximity reader. 125kHz (EM125) 4 Available programmable access modes for all 3 outputs: card only, code only, card and common user code, card, and unique user code. 1,100 Users over 2 Outputs. Codes may be 4~8 digits: - Output #1 – Form C relay, 1A@30VDC, 1,000 users - Output #2 – Form C relay, 1A@30VDC, 100 users...
Referencia: 590
Marca: SECO-LARM
Model: SK-1323-SDQ 12~24 VAC/VDC operation 1,010 Users (Output #1: 1,000 users, Output #2: 10 users) 2 Form C relays, each rated 1 Amp @ 30VDC Each relay has programmable output time from 1~99 seconds or toggle Output #2 can be programmed for use with a doorbell 2 Egress inputs and 1 door sensor input Backlit keys for easy nighttime use...
Referencia: 1271
Marca: Kodicam
Model: 502-K030E Multi-function standalone device, can be used as a WG26 card reader Capacity: 2000 card users, 2000 PIN users Three-door open methods: card, code, card+code Backlit keypad: Can operate keyboard in the dark night
Referencia: 707
Marca: SECO-LARM
Model: SK-1011-SDQ Up to 1,000 possible user codes (4-8 digits) Output: Form C relay, 1A@30VDC max. Output can be programmed to activate for up to 99,999 seconds (nearly 28 hours) Always-on backlit keypad Up to 50 (01~50) possible temporary visitor codes, which can be programmed for onetime or limited-time use (1~99 hours) Durable and attractive...
Model: ASR1101A
