Referencia: 5981
Marca: Apagon
Model: 5M-16AWG MULTI-CONTACT ELECTRICAL EXTENSION 3-OUTPUT STRIP TYPE 5MTS LONG HARD CABLE, HIGH RESISTANCE AND DURABILITY RESISTS FOR OUTDOORS
Referencia: 3811
Marca: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Referencia: 3809
Marca: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 3808
Marca: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 3807
Marca: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 3806
Marca: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2451
Marca: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

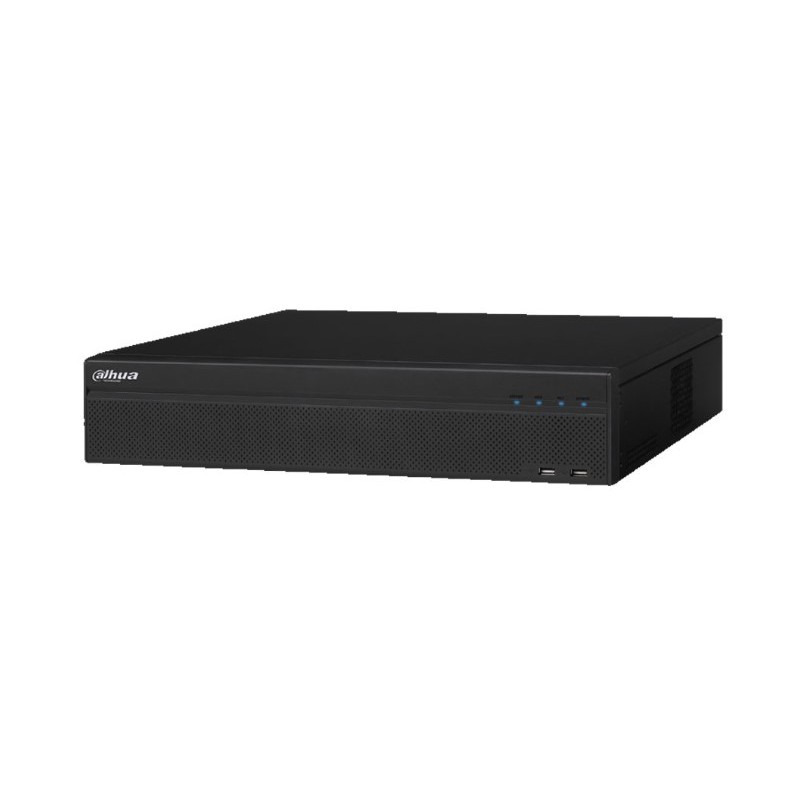

Model: XVR5832S-X
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded Processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating System |
Embedded LINUX |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video and Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Analog Camera Input |
32 Channel, BNC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HDCVI Camera |
5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AHD Camera |
5MP, 4MP, 1080P@25/30, 720P@25/30fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TVI Camera |
5MP, 4MP, 1080P@25/30, 720P@25/30fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
CVBS Camera |
PAL/NTSC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IP Camera Input |
32 Channel, each channel up to 8MP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio In/Out |
16/1, BNC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Two-way Talk |
1 Mic In, 1 Mic Out, BNC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Recording |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Compression |
H.265+/H.265/H.264+/H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Record Rate |
Main stream: 5M-N(1~10fps), 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/CIF (1~25/30fps) Sub stream: D1/CIF(1~15fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Bit Rate |
32Kbps ~ 6144Kbps Per Channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Record Mode |
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Record Interval |
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Compression |
G.711A, G.711U, PCM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Sample Rate |
8KHz, 16 bit Per Channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Bit Rate |
64Kbps Per Channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Display |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interface |
2 HDMI ,1 VGA, 1 TV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
HDMI 1:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 HDMI 2 / VGA: 1920×1080, 1280×1024, 1280×7201920×1080, 1280×1024, 1280×720 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multi-screen Display |
1/4/8/9/16/25/36 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interface |
2 RJ-45 Ports (1000M) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Function |
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. User Access |
128 users |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart Phone |
iPhone, iPad, Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF 16.12, CGI Conformant |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ficha técnica
Referencia: 818
Marca: Kodicam
Model: DVR-Lockbox Size: 9" H x 20" W x 21″ D. Weight capacity of 35.5 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 20 inches from front to back.
Referencia: 1184
Marca: Dahua
Model: ST8000VX0002 Seagate SkyHawk 8TB Surveillance Hard Drive - SATA 6Gb/s 256MB Cache 3.5-Inch Internal Drive
Referencia: 1182
Marca: Dahua
Model: ST4000VX000 Seagate SV35 Series Surveillance HDD, 4TB - Hard Drive (4TB SV35 Series, Serial ATA III, 4000 GB, 8.89 cm (3.5"), 8W, 0.75W, 5.4W)
Referencia: 393
Marca: Dahua
Model: ST2000VX003 Seagate Skyhawk 2TB Surveillance Hard SATA 6Gb/s 64MB Cache 3.5" Internal Drive-Frustration Free Packaging
Referencia: 395
Marca: Dahua
Model: ST1000VX001 Seagate Skyhawk 1TB Surveillance Hard SATA 6Gb/s 64MB Cache 3.5" Internal Drive-Frustration Free Packaging
Referencia: 2431
Marca: Uniview
Model: XVR302-32Q3 Support H.265/H.264 video formats Support audio over coaxial cable (only for Uniview CVI protocol cameras) Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access Recording Resolution: 8MP Lite/5MP Lite/4MP Lite /1080P/720P/D1 32-channel BNC input Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to...
Referencia: 2432
Marca: Uniview
Model: XVR308-32Q3 Support H.265/H.264 video formats Support audio over coaxial cable(TVI & Uniview CVI protocol cameras) Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access 32-channel BNC input Support 1-ch CVBS output, 1-ch VGA output, 2-ch HDMI, HDMI2 output at up to 4K(3840 x 2160) HDMI1 and VGA simultaneous output, HDMI2 and HDMI1/VGA...
Referencia: 1064
Marca: Dahua
Model: XVR5232AN-I3 H.265+/H.265 dual-stream video compression. Supports 16-channel AI-Coding. Supports HDCVI/AHD/TVI/CVBS/IP video inputs. Max 32 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth. Up to 4 channels video stream (analog channel) Perimeter Protection. Up to 16 channels video stream (analog...
Referencia: 1066
Marca: Dahua
Model: XVR4232AN-I H.265+/H.265 dual-stream video compression. Supports 8-channel AI-Coding. Supports HDCVI/AHD/TVI/CVBS/IP video inputs. Max 16 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth. Up to 16 channels video stream (analog channel) SMD Plus. Long transmission distance over coax cable.
Model: XVR5832S-X
