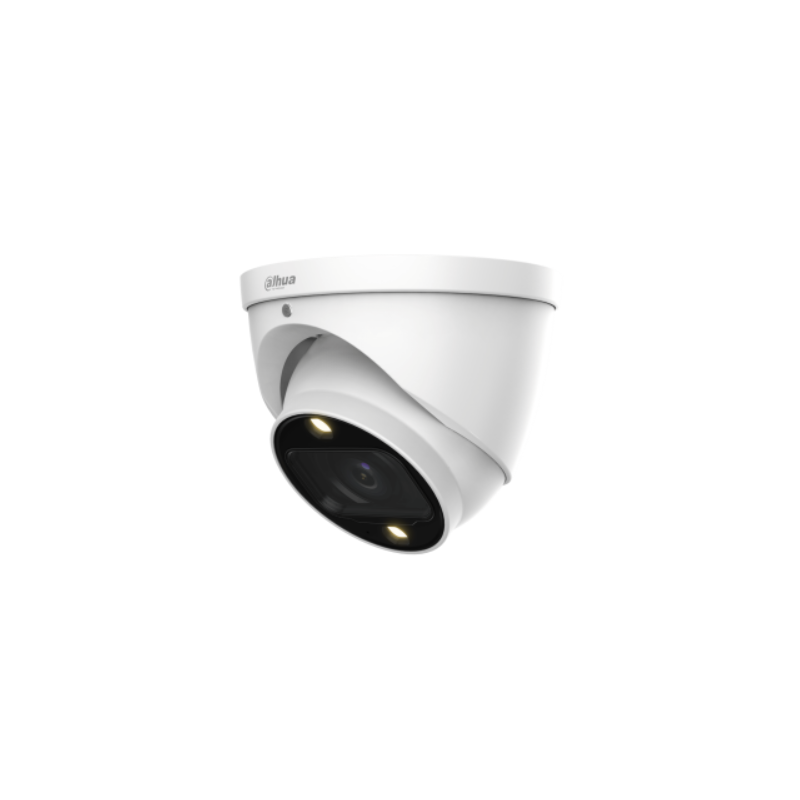

HAC-HDW1239T-Z-A-LED 2MP Full-color HDCVI Eyeball Camera

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

1920 (H) × 1080 (V)

Pixel

2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

S/N Ratio

>65 dB

Min. Illumination

0.001 Lux/F1.2, 30IRE, 0 Lux LED on

Illumination Distance

40 m (131.2 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

2

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Auto Focus

Yes

Mount Type

φ16

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.2

Field of View

Diagonal: 39°–130°
Horizontal: 34°–107°
Vertical: 19°–56°

Iris Type

Fixed iris

Close Focus Distance

1.5 m (4.9 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.7 mm

44.9 m (147.3 ft)

17.9 m (58.7 ft)

8.9 m

(29.2 ft)

4.5 m

(14.8 ft)

13.5 mm

128.6 m (421.9 ft)

51.4 m (168.6 ft)

25.7 m (84.3 ft)

12.8 m (42 ft)

Video

Frame Rate

CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960 × 576H;
NTSC: 960 × 480H;

Resolution

1080P (1920 × 1080); 960H (960 × 576/960 × 480);

BLC

BLC/WDR/HLC

WDR

130 dB

White Balance

Auto;Area WB

Gain Control

Auto; manual

Noise Reduction

3D NR

Smart Light

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in mic

Power

Power Supply

DC 12V ±30%

Power Consumption

Max 6.7W (12V DC, LED on)

Environment

Operating Temperature

–30°C to +60°C (-22°F to 140°F);< 95% (non-condensation)

Storage Temperature

–30°C to +60°C (-22°F to 140°F);< 95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

φ122 mm × 104.8 mm (φ4.8" × 4.13")

Net Weight

0.57 kg (1.26 lb)

Gross Weight

0.72 kg (1.59 lb)
