Referencia: 5981
Marca: Apagon
Model: 5M-16AWG MULTI-CONTACT ELECTRICAL EXTENSION 3-OUTPUT STRIP TYPE 5MTS LONG HARD CABLE, HIGH RESISTANCE AND DURABILITY RESISTS FOR OUTDOORS
Referencia: 3811
Marca: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Referencia: 3809
Marca: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 3808
Marca: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 3807
Marca: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 3806
Marca: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2451
Marca: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

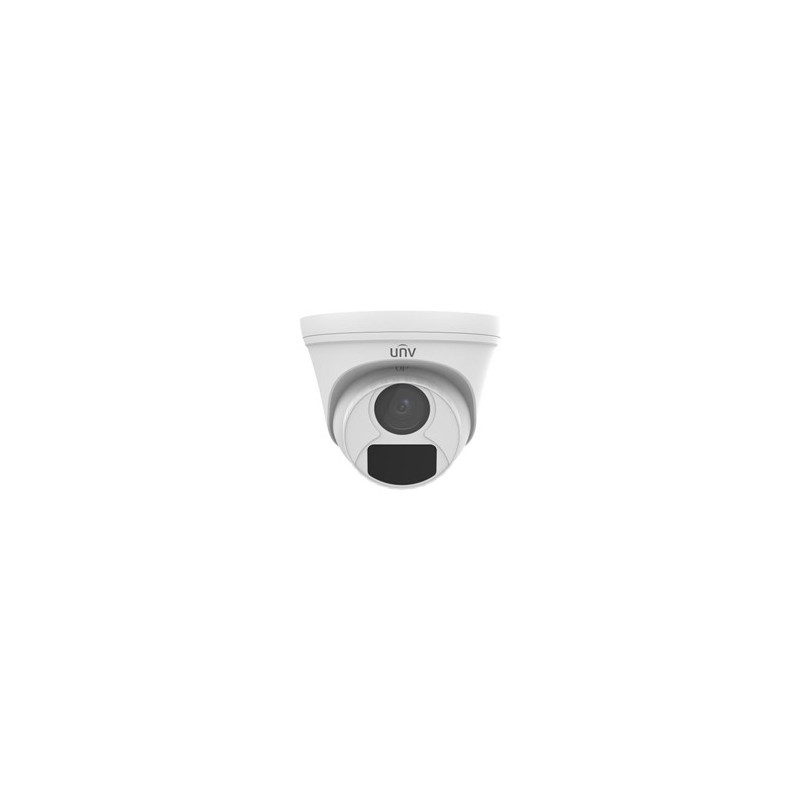

Model: UAC-T112-F28
|
Model |
UAC-T112-F28/F40 |
|
Sensor |
|
|
Pixel |
2MP |
|
Size |
1/3" |
|
Minimum Illumination |
colour 0.02Lux@F2.0 |
|
Lens |
|
|
Lens |
|
|
Lens mount |
M12 |
|
FOV |
2.8mm：H 90.3°；V 48.6°；D 107.6° 4.0mm：H 75.7°；V 41.9°；D 90.5° |
|
IR Range |
|
|
Fill-in Light |
An IR Light |
|
IR distance |
20m |
|
Life span |
≥60000h |
|
Image |
|
|
Resolution |
Max. resolution：1920(H)×1080(V) |
|
Frame rate |
AHD/TVI/CVI：1080P@25fps, 720P@25fps ；1080P@30fps, 720P@30fps CVBS：1200*576@50fps；1200*480@60fps (PAL: 25fps/50fps；NTSC: 30fps/60fps) |
|
Shutter |
PAL：1/25s-1/50000s NTSC：1/30s–1/50000s |
|
Image control |
|
|
Exposion mode |
Three modes optional: Overall (Default), BLC, DWDR； |
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
DNR |
2D |
|
White balance |
Auto |
|
WDR |
DWDR |
|
Smart IR |
Avaliable |
|
Flip |
Support image horizontal flip 180°, vertical rotation 180° |
|
Interface |
|
|
Power |
DC12V(±25%), Support anti-reverse connection and overvoltage protection |
|
Video output |
BNC，Support AHD/TVI/CVI/CVBS transmission |
|
Transmission distance |
|
|
Transmission distance |
SYV-75-3 cable supports 500m transmission |
|
Working Environment |
|
|
Temperature |
-30℃~60℃ |
|
Humidity |
≤95% RH (non-condensing) |
|
Surge Protection |
4KV |
|
Ingress Protection |
IP67 |
|
General |
|
|
Installation |
the camera is equipt with 3-axis bracket，support surface installation (default)，adaptable to junction box、wall-mount bracket and ceil-mount bracket. |
|
Dimensions |
Φ118mmx96mm |
|
Certifications |
CB、CE、FCC、IC、UL、BIS |
Ficha técnica
Referencia: 3304
Marca: Dahua
Model: PFB220C Neat & Integrated design. Ceiling mount bracket. Material: Aluminum.
Referencia: 3307
Marca: Dahua
Model: PFA106 Neat & Integrated design. Material: Aluminum.
Referencia: 3330
Marca: Dahua
Model: PFB203W Aesthetic design Wall mount bracket Material: aluminum & SECC
Referencia: 3350
Marca: Dahua
Model: PFA130-E Neat & Integrated design Material: Aluminum IP66 junction box
Referencia: 2456
Marca: Uniview
Model: TR-JB03-I-IN Application: Wall installation for IPC36XXL and IPCT1XX Series fixed dome Dimensions: Ø117.8 × 36mm (Ø4.64” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy
Referencia: 2459
Marca: Uniview
Model: TR-WM03-D-IN Application: Wall installation for IPC32XS/E/L and IPCT1XX series Dimensions: 126.7 × 126.4 × 183.4mm (4.99” × 4.98” × 7.22”) Weight: 0.52kg (1.15lb) Material: Aluminum alloy
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 1904
Marca: Dahua
Model: HAC-HDW1239T-LED 24/7 color imaging, Max. 30 fps@1080p 40 m illumination distance Super Adapt, 130 dB true WDR, 3D NR No mic 3.6 mm fixed lens (2.8 mm optional) CVI/CVBS/AHD/TVI switchable IP67, DC 12 V
Referencia: 2288
Marca: Uniview
Model: UAC-B142-AF28(40)LM-DL High quality imaging with 2MP resolution TVI/AHD/CVI/CVBS Supports IR-cut filter with auto-switch (ICR) Smart Dual Light 3D noise reduction technology delivers clean and sharp images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high...
Referencia: 1807
Marca: Dahua
Model: HAC-HFW3231E-Z Starlight, 120dB true WDR, 3DNR Max 30fps@1080P HD and SD dual-output 2.7-12mm motorized lens Max. IR length 100m, Smart IR IP67, IK10, AC24V/DC12V
Referencia: 2287
Marca: Uniview
Model: UAC-B122-AF28(40)LM High quality imaging with 2MP resolution TVI/AHD/CVI/CVBS Supports IR-cut filter with auto-switch (ICR) LightHunter monitoring with high-sensitivity sensor 3D noise reduction technology delivers clean and sharp images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and...
Referencia: 2254
Marca: Uniview
Model: UAC-T142-AF28(40)LM-DL High quality imaging with 2MP resolution TVI/AHD/CVI/CVBS Supports IR-cut filter with auto-switch (ICR) Smart Dual Light 3D noise reduction technology delivers clean and sharp images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high...
Referencia: 1910
Marca: Dahua
Model: HAC-HDW1239T-Z-A-LED 24/7 color imaging, Max. 30 fps@1080p Super Adapt, 130 dB true WDR, 3D NR Auto focus, 2.7 mm–13.5 mm motorized lens 40 m illumination distance Built-in mic CVI/CVBS/AHD/TVI switchable IP67, DC 12V
Referencia: 1864
Marca: Dahua
Model: HAC-HDBW1200E Max 30fps@1080P HD and SD output switchable 3.6mm fixed lens (2.8mm optional) Max. IR length 30m, Smart IR IP67, IK10, DC12V
Referencia: 372
Marca: Dahua
Model: HAC-HDW1200MN-028BS4 Max 30fps@1080P HD and SD output switchable 2.8 mm fixed lens Max. IR length 30 m, Smart IR IP67, DC12V
Referencia: 1950
Marca: Dahua
Model: HAC-HFW1239TU-Z-A-LED 24/7 color imaging, Max. 30 fps@1080p Super Adapt, 130 dB true WDR, 3D NR Auto focus, 2.7 mm–13.5 mm motorized lens 60 m illumination distance Built-in mic CVI/CVBS/AHD/TVI switchable IP67, DC 12V
Referencia: 2252
Marca: Uniview
Model: UAC-T122-AF28(40)LM High quality imaging with 2MP resolution TVI/AHD/CVI/CVBS Supports IR-cut filter with auto-switch (ICR) LightHunter monitoring with high-sensitivity sensor 3D noise reduction technology delivers clean and sharp images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and...
Referencia: 755
Marca: Dahua
Model: HAC-HDBWV1200RN-VF 1/2.7" 2Megapixel CMOS 30fps@1080P High speed, long distance real-time transmission Day/Night (ICR), AWB, AGC, BLC, 2D-DNR 2.7~12mm vari-focal lens Max. IR LEDs length 30m, Smart IR IP67, IK10, DC12V
Referencia: 1908
Marca: Dahua
Model: HAC-HDW1200T-IL-A Max. 30 fps@1080p. 3D NR. Smart Dual Light. 40 m illumination distance. Super Adapt. Built-in mic. 2.8 mm fixed lens. CVI/CVBS/AHD/TVI switchable. IP67, 12 VDC.
Referencia: 1863
Marca: Dahua
Model: HAC-HDBW2241F-A Starlight, 120dB true WDR, 3DNR Max. 30fps@1080P HD/SD output switchable Audio in interface, built-in mic 3.6mm fixed lens (2.8mm optional) Max. IR length 20m, Smart IR IP67, IK10, DC12V±30%
Referencia: 1865
Marca: Dahua
Model: HAC-HDW1200T-Z-A Max 30fps@1080P HD and SD output switchable Built-in mic 2.7-12mm motorized lens Max. IR length 60m, Smart IR IP67, DC12V
Referencia: 1906
Marca: Dahua
Model: HAC-HDW1209TLQP-A-LED Full-color starlight 20 m illumination distance Max. 30fps@1080P Built-in mic (-A) Quick-to-install eyeball saves installation time CVI/CVBS/AHD/TVI switchable Fixed lens (2.8 mm;3.6 mm optional) IP67, 12V±30% DC
Model: UAC-T112-F28
