Reference: 5981
Brand: Apagon
Model: 5M-16AWG MULTI-CONTACT ELECTRICAL EXTENSION 3-OUTPUT STRIP TYPE 5MTS LONG HARD CABLE, HIGH RESISTANCE AND DURABILITY RESISTS FOR OUTDOORS
Reference: 3811
Brand: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Reference: 3809
Brand: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3808
Brand: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3807
Brand: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3806
Brand: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2451
Brand: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

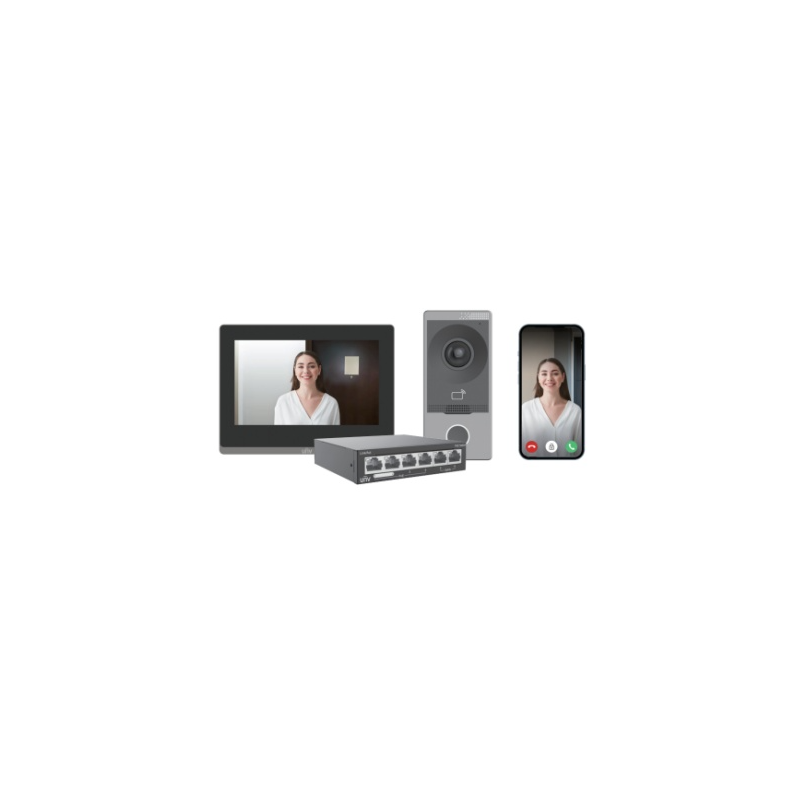

Model: KIT/201S/372S/NSW202
OEU-201S-HMK-W
OEI-372S-H-W
NSW2020-6T-POE-IN
|
Model |
KIT/201S/372S/NSW2020 |
|
Kit dimensions (L×W×H) |
268mm*213mm*180mm |
|
Kit weight |
2.005kg |
|
Model |
OEU-201S-HMK-W |
|
Power supply |
DC12V ±25%, PoE power supply |
|
Card capacity |
10000 |
|
Operating system |
Linux |
|
Illuminator |
IR light (adaptive) |
|
WDR |
Support |
|
FOV |
Horizontal: 124.3° |
|
Power consumption |
< 10W |
|
Volume adjustment |
Support |
|
Audio quality |
Noise reduction, echo cancellation, auto gain control |
|
Audio input |
Built-in mic |
|
Audio output |
Built-in speaker |
|
Protocol |
Uniview private protocol |
|
Audio compression format |
PCM, G711, MP3 |
|
Audio compression bit rate |
128kbps |
|
Button |
Call button |
|
Ingress protection |
IP65 (Apply waterproof glue to the gap between the device and the wall. See the corresponding quick guide for details.) |
|
Weight |
0.267kg |
|
Mount method |
Wall mount, flush mount |
|
Interface |
Power supply*1, network interface*1, RS485*1, door lock interface*2, IO input*4 |
|
Communication mode |
100Mbps network interface, supports IEEE802.3af; Wi-Fi |
|
Dimensions (L×H×W) |
79mm*171mm*34mm |
|
Operating environment |
- 30°C to 60°C, 10% to 90% RH noncondensing, outdoor |
|
Model |
OEI-372S-H-W |
|
Power supply |
DC12V ±25%, PoE power supply |
|
Screen resolution |
1024 x 600 |
|
Display screen |
7-inch ultra-thin TFT LCD touch screen |
|
Operating system |
Linux |
|
Audio quality |
Noise reduction, echo cancellation, auto gain control |
|
Audio input |
Built-in mic |
|
Audio output |
Built-in speaker |
|
Audio compression format |
MP3, G711 |
|
Audio compression bit rate |
128kbps |
|
Protocol |
Uniview private protocol |
|
TF card |
1 x 32G TF card, capable of storing 100 live video snapshots, 200 call records and call snapshots. |
|
Power consumption |
< 10W |
|
Weight |
0.377kg |
|
Interface |
Power supply*1, network interface*1, RS485*1, IO output*2, IO input*8, TF card slot*1 |
|
Communication mode |
100Mbps network interface, supports IEEE802.3af; Wi-Fi |
|
Dimensions (L×H×W) |
193.2mm*143.4mm*25mm |
|
Operating environment |
- 10°C to 55°C, 10% to 90% RH noncondensing, indoor |
|
Model |
NSW2020-6T-POE-IN |
|
Service port |
6 x 100M copper port (RJ45), including 4 x 100M copper port (supports PoE power supply) |
|
Standards |
IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at |
|
Switching capacity |
1.2Gbps |
|
Packet forwarding rate |
0.90Mpps |
|
Packet buffer |
448kbit |
|
MAC |
1K |
|
Dimensions (W×D×H) |
107*99*25mm |
|
Weight |
0.19kg |
|
Power |
DC 48V/51V |
|
PoE |
Supports IEEE802.3af and IEEE802.3at |
|
PoE power supply mode |
Mode B, 4/5+, 7/8- |
|
PoE power |
Maximum total power: 60W |
|
Priority port |
1 to 2 |
|
Mount method |
Desktop mount, wall mount |
|
Fan |
Fanless |
|
Operating temperature |
0°C to 40°C |
|
Operating humidity |
10% to 90% RH, noncondensing |
|
Storage temperature |
-40°C to 70°C |
|
Storage humidity |
5% to 90% RH, noncondensing |
Reference: 3257
Brand: Dahua
Model: KTP02 IP Villa Door Station High-definition camera; WDR Operating temperature -30°C to 60°C IP65(Silicone sealant is needed. For details, see the quick start guide.) Supports auto IR illumination and D/N Card/app remote/indoor monitor unlock Supports two-way voice call; support calls between door stations and app 10,000 cards Tamper Alarm Support...
Reference: 3210
Brand: Dahua
Model: KTA02M 7" TFT screen Video intercom function: Unlock, voice call, video call, volume adjustment, doorway monitoring System Capacity：2 door stations + 3 indoor monitors Multiple bell sounds Support digital wide dynamic range (DWDR)
Reference: 608
Brand: SECO-LARM
Model: DP-264-1C7Q Simple 2-wire connection Remotely and securely talk to visitors and unlock doors, gates, etc. from the monitor Easily connect 2 additional monitors and an additional camera Camera has four IR LEDs for nighttime operation Built-in microphone and speaker for hands-free two-way communication Soft-touch button operation Adjustable color...
Reference: 3251
Brand: Dahua
Model: DHI-KTP01(S) IP Outdoor Station 2 MP Wide Angle Camera with Night Vision Built-in Microphone with Two-way Talk and Group Call Aluminum Panel can be Surface- or Flush-mounted. IP65 Ingress Protection and IK07 Vandal Resistance Power via PoE IP Indoor Monitor 7-inch TFT Screen, 1024 x 600 Resolution Integrated 8 GB Micro SD Card Setup and activate...
Reference: 3209
Brand: Dahua
Model: KTA04 Video intercom function: Unlock, voice call, video call, volume Multiple bell sounds Support digital wide dynamic range (DWDR)
Reference: 4370
Brand: Fanvil
Model: FAN-VIK-01 Fanvil VIK-01 Video Intercom Kit integrates the i504W SIP Indoor Station, i60 Video Door Phone, and Fanvil Link App, ideal for villas and single-family homes. Users can make HD video calls and remotely unlock doors via the indoor unit or Fanvil Link App, with multiple unlocking options and 2.4G/5G Wi-Fi support. Achieve...
Model: KIT/201S/372S/NSW202
OEU-201S-HMK-W
OEI-372S-H-W
NSW2020-6T-POE-IN
