Reference: 3811
Brand: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Reference: 3809
Brand: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3808
Brand: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3807
Brand: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3806
Brand: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 8510
Brand: Apagon
Model: Exit-NPT5A Design with no Mechanical Bolt Infrared no touch Button With the Bottom Box, Easy to Install Three Contact Output, Suitable for all kinds of Locks
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2451
Brand: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

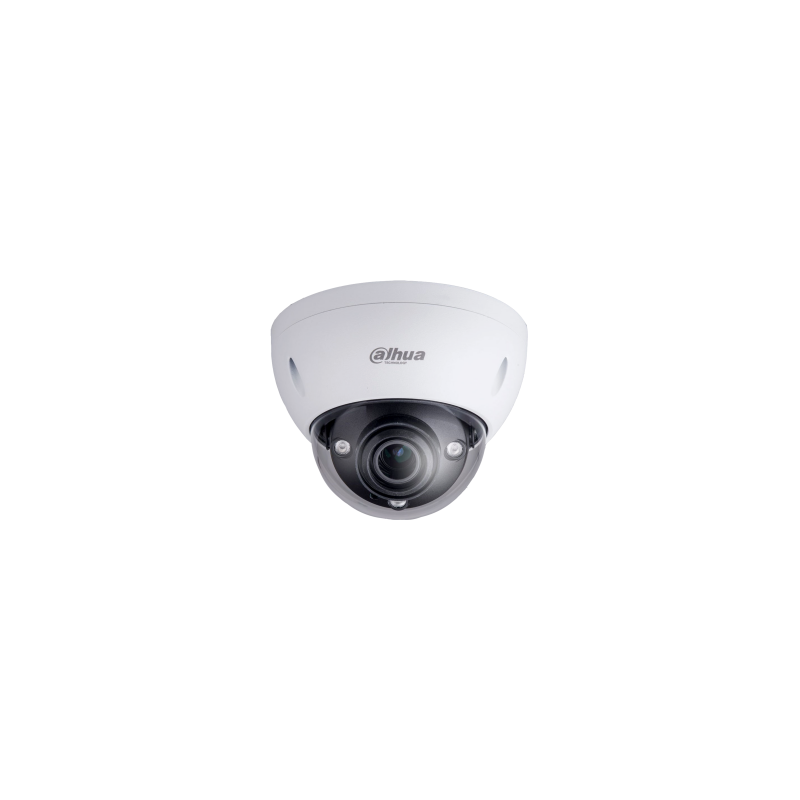

Model: IPC-HDBW5431E-ZE
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/3” 4Megapixel progressive scan CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Effective Pixels |
2688(H)x1520(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM/ROM |
512MB/32MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
Auto/Manual, 1/3~1/100000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Minimum Illumination |
0.03Lux/F1.4 (Color,1/3s,30IRE) 0.3Lux/F1.4 (Color,1/30s,30IRE) 0Lux/F1.4(IR on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
More than 50dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR Distance |
Distance up to 50m (164ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR On/Off Control |
Auto/ Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR LEDs |
3 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Motorized/ Auto Iris(DC) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mount Type |
Board-in |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
2.7mm~13.5mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Aperture |
F1.4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle of View |
H: 106°~31°, V:58°~17° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Optical Zoom |
5x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focus Control |
Motorized |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
0.3m |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
W |
64(210ft) |
26m(85ft) |
13m(42ft) |
6.5m(21ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
T |
208m(682ft) |
83m(272ft) |
41m(136ft) |
20m(68ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt/Rotation |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt/Rotation Range |
Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IVS |
Tripwire, Intrusion, Object Abandoned/Missing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Advanced Intelligent Functions |
Face Detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Data sheet
Reference: 3354
Brand: Dahua
Model: PFA152-E Material: aluminum & SUS304 Pole mount bracket Aesthetic design
Reference: 3300
Brand: Dahua
Model: PFB201C Aesthetic design In-ceiling Mount Bracket Material: SECC & PC
Reference: 3303
Brand: Dahua
Model: PFB300C Aesthetic design Material: aluminum & PC Ceiling mount bracket
Reference: 371
Brand: Dahua
Model: PFA101 Aesthetic design Material: aluminum Mount adapter
Reference: 432
Brand: Dahua
Model: PFB302S Neat & Integrated design Material: Aluminum Wall mount bracket with IP66 junction box
Reference: 387
Brand: Dahua
Model: PFA138 Material: aluminum Junction box Aesthetic design Safety rope hook attached, secure and reliable.
Reference: 1758
Brand: Dahua
Model: IPC-HDW1431T1-ZS-S4 4MP, 1/3” CMOS image sensor, low illuminance, high image definition Outputs 4MP (2560 × 1440) @25/30 fps, and supports max. 4MP (2688 × 1520) @20 fps H.265 codec, high compression rate, ultra-low bit rate Built-in IR LED, max. IR distance: 50 m ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth...
Reference: 2376
Brand: Uniview
Model: IPC3624LE-ADF28K-WP High quality image with 4MP, 1/1.8"CMOS sensor and F1.0 large aperture lens 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps Ultra 265, H.265, H.264, MJPEG Support ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely...
Reference: 6353
Brand: Uniview
Model: Uho-P1A-M3F4D High quality image with 3MP, 1/2.8"CMOS sensor 2304*1296@20fps in the mainstream Ultra 265, H.265, H.264 Support digital WDR (Wide Dynamic Range) Built in Mic & Speaker, support two way audio, offer better interaction Support sound and light warning, makes warning and alarming more noticeable Smart IR, up to 30 m (98 ft) IR and...
Reference: 2385
Brand: Uniview
Model: IPC2A14LP-ADF40KC-4G-E High quality image with 4MP, 1/3"CMOS sensor 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps Support 4G access to the network Alarm:1 in/1 out Audio: 1 in/1 out Built-in Mic & Speaker Smart IR, up to 50m (164ft) IR distance White Light, up to 30m (98ft) white light distance Support 512 G...
Reference: 2351
Brand: Uniview
Model: IPC-D124-PF28 Optics Day/night functionality Smart IR, up to 30m (98ft) IR distance 2D/3D DNR (Digital Noise Reduction) Compression Ultra 265, H.265, H.264, MJPEG ROI (Region of Interest) Network ONVIF Conformance Structure Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F) Wide voltage range of ±25% IK10 vandal resistant...
Reference: 2374
Brand: Uniview
Model: IPC3614LE-ADF28(40)KC-DL High quality image with 4MP, 1/3"CMOS sensor 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps; Ultra 265, H.265, H.264, MJPEG 120dB true WDR technology enables clear image in strong light scene Support 9:16 Corridor Mode Built-in Mic & Speaker Smart IR, up to...
Reference: 6310
Brand: Uniview
Model: Uho-B2D-M3F3D High quality image with 3MP, 1/3.0"CMOS sensor and F1.6 aperture lens 3MP (2304*1296)@25/20fps; 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps Ultra 265, H.265, H.264, MJPEG Built-in Mic Built-in Speaker Smart IR, up to 20m (66ft) IR distance Warm Light, up to 10m (33ft) warm light distance Support Dual Light mode, switch between...
Reference: 1764
Brand: Dahua
Model: IPC-HDW1439T1-A-LED 4-MP 1/3" CMOS image sensor, low luminance, and high-definition image. Outputs max. 4 MP (2560 × 1440) @25/30 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in warm light, and the max. illumination distance is 15 m. ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and...
Reference: 4501
Brand: Hikvision
Model: DS-2CD1343G2-LIU High quality imaging with 4 MP resolution Support Human and Vehicle Detection Smart Hybrid Light: advanced technology with long range Built-in microphone for real-time audio security Efficient H.265+ compression technology Support on-board storage up to 512 GB (SD card slot) (Optional) Water and dust resistant...
Reference: 2330
Brand: Uniview
Model: IPC2124SB-ADF28KMC-I0 High quality image with 4MP, 1/2.7"CMOS sensor 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps; Ultra 265, H.265, H.264, MJPEG Smart intrusion prevention, include cross line, enter area, leave area detection Based on target classification, smart intrusion prevention...
Reference: 2356
Brand: Uniview
Model: IPC3534LB-ADZK-G High quality image with 4MP, 1/3"CMOS sensor 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296)@ 30/25fps;2MP (1920*1080)@30/25fps Ultra 265, H.265, H.264, MJPEG 120dB true WDR technology enables clear image in strong light scene Support 9:16 Corridor Mode Built-in Mic Smart IR, up to 40m (131ft) IR distance...
Reference: 2304
Brand: Uniview
Model: IPC2124LE-ADF28KMC-WL High quality image with 4MP, 1/3"CMOS sensor 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps; Ultra 265, H.265, H.264, MJPEG 120dB true WDR technology enables clear image in strong light scene Support 9:16 Corridor Mode Built-in Mic & Speaker Smart IR, up to 30m...
Reference: 2339
Brand: Uniview
Model: PKC2640@Z28-P Optics Built-in lens supports motorized zoom to adapt to different scenes and allows for easy installation. Automatic gain control, white balance, and WDR for various light conditions. Compression Supports triple streams. Advanced H.265 encoding technology improves compression efficiency. Custom OSD allows various vehicle information...
Reference: 4551
Brand: Hikvision
Model: DS-2CD1143G2-LIU High quality imaging with 4 MP resolution Support Human and Vehicle Detection Smart Hybrid Light: advanced technology with long range Built-in microphone for real-time audio security Efficient H.265+ compression technology Support on-board storage up to 512 GB (SD card slot) (Optional) Water and dust resistant (IP67) and vandal...
Reference: 1762
Brand: Dahua
Model: IPC-HDW2439T-AS-LED-S2 4MP, 1/3" CMOS image sensor, low illuminance, high image definition Outputs 4MP (2560 × 1440) @ 25/30 fps, Max. supports 4MP (2688 × 1520) @ 20 fps H.265 codec, high compression rate, ultra-low bit rate Built-in warm lights, max. illumination distance: 30 m ROI, SMART H.264+/H.265+, flexible coding, applicable to...
Reference: 1763
Brand: Dahua
Model: IPC-HDW1431T1-S4 4MP, 1/3” CMOS image sensor, low illuminance, high image definition Outputs 4MP (2560 × 1440) @25/30 fps, and supports max. 4MP (2688 × 1520) @20 fps H.265 codec, high compression rate, ultra-low bit rate Built-in IR LED, max. IR distance: 30 m ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and...
Model: IPC-HDBW5431E-ZE
