Reference: 10168
Brand: Apagon
Model: FB-CJD-LCSMAPC Connector Type: SC-SC Polishing Type: APC Color: Green Fiber Type: Simplex Fiber Mode: Single Mode
Reference: 10166
Brand: Apagon
Model: FB-CJS-LCSM Connector Type: SC-SC Polishing Type: UPC Color: Blue Fiber Type: Simplex
Reference: 2875
Brand: Vertical Cable
Model: 077-2027/3YL The versatility of the CAT6A Slim Type Patch Cords – 077 Series makes them suitable for various applications: Office networking setups Home entertainment systems Data centers IoT devices Cloud-based applications
Reference: 2874
Brand: Vertical Cable
Model: 077-2036/2YL The versatility of the CAT6A Slim Type Patch Cords – 077 Series makes them suitable for various applications: Office networking setups Home entertainment systems Data centers IoT devices Cloud-based applications
Reference: 2873
Brand: Vertical Cable
Model: 077-2027/1YL The versatility of the CAT6A Slim Type Patch Cords – 077 Series makes them suitable for various applications: Office networking setups Home entertainment systems Data centers IoT devices Cloud-based applications
Reference: 2872
Brand: Vertical Cable
Model: 077-2018/0.5YL The versatility of the CAT6A Slim Type Patch Cords – 077 Series makes them suitable for various applications: Office networking setups Home entertainment systems Data centers IoT devices Cloud-based applications
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2451
Brand: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

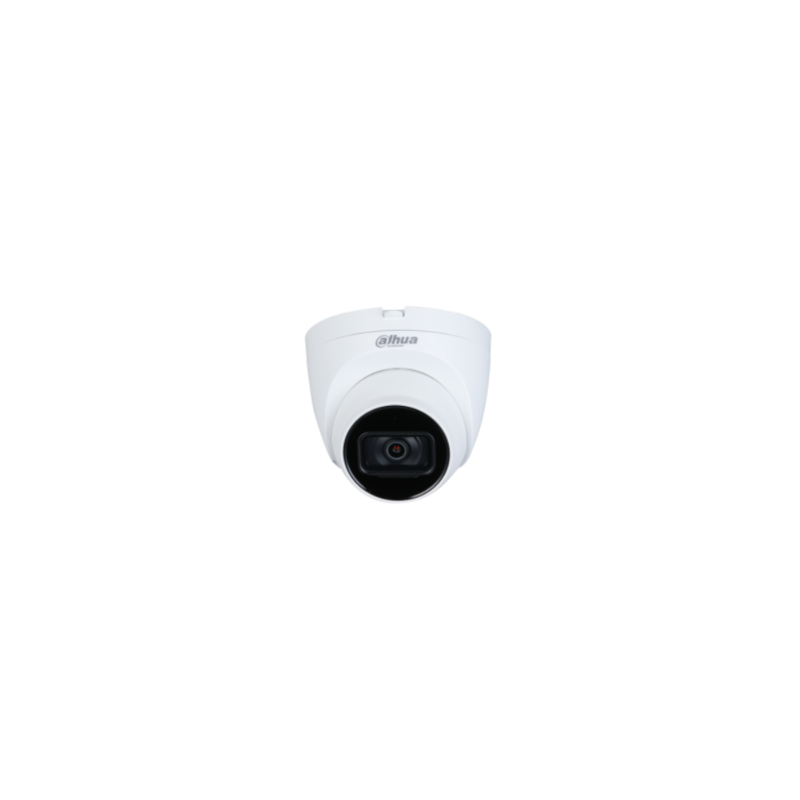

Model: IPC-HDW2431T-AS-S2
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/3” 4Megapixel progressive CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Resolution |
2688 (H) × 1520 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ROM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Min. Illumination |
0.008 Lux @ F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
>56 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illumination Distance |
30 m (98.43 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator On/Off Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator Number |
2 (IR LED) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt/Rotation Range |
Pan: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mount Type |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
2.8 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Aperture |
F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Field of View |
2.8 mm: 3.6 mm : |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Iris Type |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
2.8 mm: 0.9 m (2.95 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
2.8 mm |
56 m (183.73 ft) |
22.4 m (73.49 ft) |
11.2 m (36.75 ft) |
5.6 m (18.37 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
3.6 mm |
80 m (262.47 ft) |
32.0 m (104.99 ft) |
16.0 m (52.49 ft) |
8.0 m (26.25 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart event |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IVS |
Tripwire; intrusion |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Compression |
H.265; H.264; H.264B; MJPEG(only supported by sub stream) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart Codec |
Smart H.265+/ Smart H.264+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Frame Rate |
Main stream: 2688 × 1520 (1 fps-20 fps) 2560 × 1440 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Stream Capability |
2 streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Bit Rate Control |
CBR/VBR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Bit Rate |
H.264: 32 kbps–6144 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Day/Night |
Auto(ICR)/Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
BLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WDR |
120 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gain Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Noise Reduction |
3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Motion Detection |
Disable/Enable (4 areas, rectangle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Region of Interest(RoI) |
Yes (4 areas) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart Illumination |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Rotation |
0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mirror |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Privacy Masking |
4 areas |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Built-in MIC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Compression |
G.711A; G.711Mu; G.726 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
RJ-45 (10/100 Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SDK and API |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User/Host |
20 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
FTP; Micro SD card (support max. 256 G); NAS; SFTP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Browser |
IE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Management Software |
Smart PSS; DSS; DMSS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mobile Phone |
IOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE-LVD: EN62368-1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12V DC/PoE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Basic power consumption: 2.1W (12V DC), 2.5W (POE) Max power consumption (H.265, Max resolution, Max stream, WDR, IR full intensity, IVS): 5.7W (12V DC), 6.6W (POE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
-40°C to +60°C (-40°F to +140°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
≤95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
-40°C to +60°C (-40°F to +140°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
≤95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing |
Metal + Plastic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions |
100.9 mm × Φ109.9 mm (3.97" × Φ4.33") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.39 kg (0.86 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.52 kg (1.15 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Data sheet
Reference: 3354
Brand: Dahua
Model: PFA152-E Material: aluminum & SUS304 Pole mount bracket Aesthetic design
Reference: 3304
Brand: Dahua
Model: PFB220C Neat & Integrated design. Ceiling mount bracket. Material: Aluminum.
Reference: 3307
Brand: Dahua
Model: PFA106 Neat & Integrated design. Material: Aluminum.
Reference: 3325
Brand: Dahua
Model: PFA13G Aluminum alloy material, cost-effective. Dedicated for particular cameras, beautiful and elegant designed. Cabling inside the junction box. Cable threading through bottom or side.
Reference: 3330
Brand: Dahua
Model: PFB203W Aesthetic design Wall mount bracket Material: aluminum & SECC
Reference: 3350
Brand: Dahua
Model: PFA130-E Neat & Integrated design Material: Aluminum IP66 junction box
Reference: 4551
Brand: Hikvision
Model: DS-2CD1143G2-LIU High quality imaging with 4 MP resolution Support Human and Vehicle Detection Smart Hybrid Light: advanced technology with long range Built-in microphone for real-time audio security Efficient H.265+ compression technology Support on-board storage up to 512 GB (SD card slot) (Optional) Water and dust resistant (IP67) and vandal...
Reference: 6341
Brand: Uniview
Model: Uho-P2G-M3F4D-LA High quality image with 3MP, 1/2.8" CMOS sensor 2304*1296@15fps in the main stream Support 4G access to the network Ultra 265, H.265 Support digital WDR (Wide Dynamic Range) Built-in Mic & Speaker, support two-way audio, offer better interaction Smart IR, up to 30 m (98 ft) IR and 30m (98 ft) warm light distance, suitable for...
Reference: 2351
Brand: Uniview
Model: IPC-D124-PF28 Optics Day/night functionality Smart IR, up to 30m (98ft) IR distance 2D/3D DNR (Digital Noise Reduction) Compression Ultra 265, H.265, H.264, MJPEG ROI (Region of Interest) Network ONVIF Conformance Structure Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F) Wide voltage range of ±25% IK10 vandal resistant...
Reference: 1789
Brand: Dahua
Model: IPC-HDBW5431E-ZE 1/3” 4Megapixel progressive scan CMOS H.265&H.264 triple-stream encoding 25/30fps@4Mp (2688×1520) WDR (120dB), Day/Night (ICR), 3DNR, AWB, AGC, BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 2.7mm ~13.5mm motorized lens Max. IR LEDs Length 50m Micro SD card memory, IP67, IK10, PoE+
Reference: 4566
Brand: Hikvision
Model: DS-2CD1743G2-IZS High quality imaging with 4 MP resolution Support Human and Vehicle Detection 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring Up to 256 GB SD card slot for storage Water and dust resistant (IP67) and vandal proof (IK10) EXIR 2.0: advanced infrared technology with long IR range Clear imaging...
Reference: 2342
Brand: Uniview
Model: IPC2K24SE-ADF40KMC-W High quality image with 4MP, 1/2.9"CMOS sensor 4MP (3840*1080)@25fps（Human Body Detection off）; 4MP (3840*1080)@20fps（Human Body Detection on） The double lens splicing technology is adopted to realize the horizontal viewing angle of 160.00°±10° Ultra 265, H.265, H.264, MJPEG Support Human Body Detection Colorhunter...
Reference: 4501
Brand: Hikvision
Model: DS-2CD1343G2-LIU High quality imaging with 4 MP resolution Support Human and Vehicle Detection Smart Hybrid Light: advanced technology with long range Built-in microphone for real-time audio security Efficient H.265+ compression technology Support on-board storage up to 512 GB (SD card slot) (Optional) Water and dust resistant...
Reference: 6357
Brand: Uniview
Model: Uho-P2A-M3F4D High quality image with 3MP, 1/3" CMOS sensor 2304*1296@20fps in the main stream Ultra 265, H.265, H.264 Support digital WDR (Wide Dynamic Range) Built in Mic & Speaker, support two way audio, offer better interaction Support sound and light warning, makes warning and alarming more noticeable Smart IR, up to 30 m...
Reference: 1764
Brand: Dahua
Model: IPC-HDW1439T1-A-LED 4-MP 1/3" CMOS image sensor, low luminance, and high-definition image. Outputs max. 4 MP (2560 × 1440) @25/30 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in warm light, and the max. illumination distance is 15 m. ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and...
Reference: 2334
Brand: Uniview
Model: IPC2314LE-ADF28(40)KM-WP High quality image with 4MP, 1/1.8"CMOS sensor and F1.0 large aperture lens 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps Ultra 265, H.265, H.264, MJPEG Support ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely...
Reference: 2331
Brand: Uniview
Model: IPC2124LE-ADF28KM-G High quality image with 4MP, 1/3"CMOS sensor 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps; Ultra 265, H.265, H.264, MJPEG Easystar technology ensures high image quality in low illumination environment 120dB true WDR technology enables clear image in strong light...
Reference: 4531
Brand: Hikvision
Model: DS-2CD1H43G2-IZS High quality imaging with 4 MP resolution Support Human and Vehicle Detection 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring Up to 256 GB memory card slot for storage Water and dust resistant (IP67) EXIR 2.0: advanced infrared technology with long IR range Clear imaging even with strong back...
Reference: 1766
Brand: Dahua
Model: IPC-HDW1439V-A-IL 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image. Outputs max. 4 MP (2560 × 1440)@25/30 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in IR LED and warm light, the max. IR illumination distance is 30 m and warm light distance is 30 m. WDR, 3D NR, HLC, BLC, digital...
Reference: 1763
Brand: Dahua
Model: IPC-HDW1431T1-S4 4MP, 1/3” CMOS image sensor, low illuminance, high image definition Outputs 4MP (2560 × 1440) @25/30 fps, and supports max. 4MP (2688 × 1520) @20 fps H.265 codec, high compression rate, ultra-low bit rate Built-in IR LED, max. IR distance: 30 m ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and...
Reference: 1758
Brand: Dahua
Model: IPC-HDW1431T1-ZS-S4 4MP, 1/3” CMOS image sensor, low illuminance, high image definition Outputs 4MP (2560 × 1440) @25/30 fps, and supports max. 4MP (2688 × 1520) @20 fps H.265 codec, high compression rate, ultra-low bit rate Built-in IR LED, max. IR distance: 50 m ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth...
Reference: 2371
Brand: Uniview
Model: IPC3614LE-ADF28K-G High quality image with 4MP, 1/3"CMOS sensor 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps; Ultra 265, H.265, H.264, MJPEG Easystar technology ensures high image quality in low illumination environment 120dB true WDR technology enables clear image in strong light...
Model: IPC-HDW2431T-AS-S2
