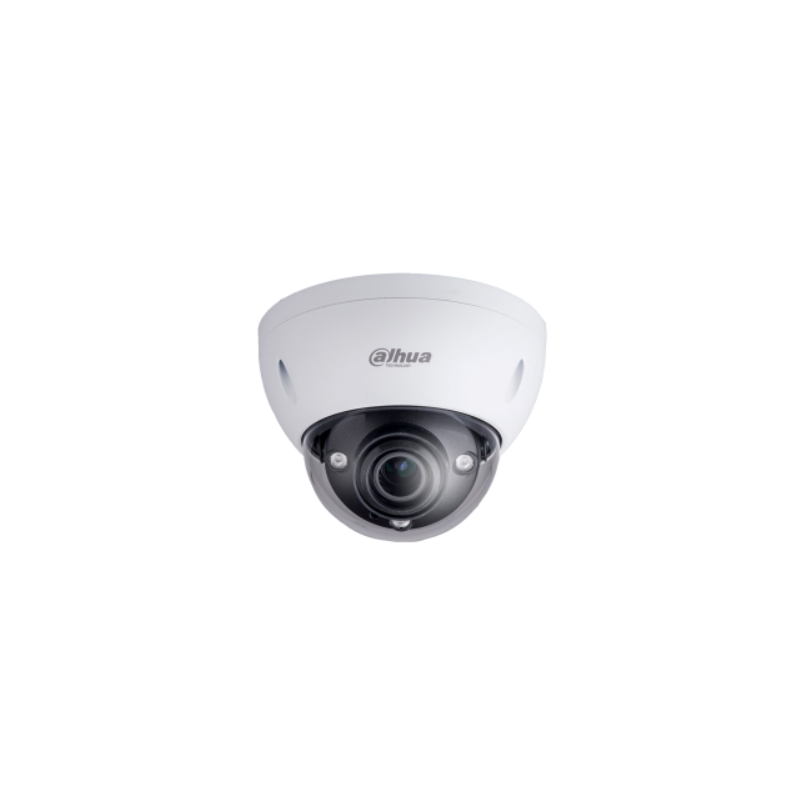

HAC-HDBW3802E-Z 8MP HDCVI WDR IR-Dome Camera

452

Model: HAC-HDBW3802E-Z

  • 1/2” 8Megapixel progressive scan CMOS
  • 3x optical motorized zoom lens
  • Max. 15fps@3840×2160
  • 120db true WDR,2D&3D NR
  • Intelligent functions
  • Max.50m IR distance, smart IR
  • IP67&IK10 ingress protection
  • Dual voltage input (DC 12v±25%/AC 24V±25%)
  • DC12V voltage output
  • Up to 500m transmission with RG59 coaxial cable.
$292.50
Tax excluded
Quantity
2

Description

Camera

Image Sensor

1/1.8" CMOS

Effective Pixels

3840(H)×2160(V), 8MP

Scanning System

Progressive

Electronic Shutter Speed

1/1s~1/100,00s

Minimum Illumination

0.005Lux/F1.5(Color), 30IRE, 0Lux/F1.5(B/W)

S/N Ratio

More than 65dB

IR Distance

Up to 50m (164feet)

IR On/Off Control

Auto / Manual

IR LEDs

3

Lens

Lens Type

Motorized lens / Auto iris

Mount Type

Board-in

Focal Length

3.7-11mm

Max Aperture

F1.5

Angle of View

H: 112°~46°

Focus Control

Auto / Manual

Close Focus Distance

0.2m

7.87"

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

DORI

Definition

Distance

Wide

Tele

Detect

25px/m (8px/ft)

83m(273ft)

190m(624ft)

Observe

63px/m (19px/ft)

33m(109ft)

76m(250ft)

Recognize

125px/m (38px/ft)

17m(54ft)

38m(125ft)

Identify

250ppm (76px/ft)

8m(27ft)

19m(62ft)

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 355°

Tilt: 0° ~ 65°

Rotation: 0° ~ 355°

Video

Resolution

8MP (3840×2160)

Frame Rate

PAL:3840×2160@12.5fps,2560x1440@25fps;

NTSC:3840×2160@15fps,2560x1440@30fps;

Video Output

1-channel HDCVI 4K video output & 1-channel CVBS video output

Day/Night

Auto (ICR) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / WDR

WDR

120dB

Gain Control

AGC

Noise Reduction

2D/3D

White Balance

Auto / Manual

Smart IR

Auto / Manual

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface

1-channel audio in

Alarm I/O

2/1

Eelectrical

Power Supply

12V DC ±25%/24V AC ±25%

Power Output

DC 12V/Max 4W

Power Consumption

Max 12.4W

Environmental

Operating Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -30°C (-22°F)

Storage Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

Ingress Protection & Vandal Resistance

IP67&IK10

Construction

Casing

Aluminium

Dimensions

Φ159.1mm×117.9mm (Φ6.26"×4.64")

Net Weight

0.90kg (1.98lb)

Gross Weight

1.20kg (2.65lb)
Product Details
452
2 Items

Data sheet

MODEL
DOME CAMERA
RESOLUTION
4K RESOLUTION
Accessories
