Reference: 5981
Brand: Apagon
Model: 5M-16AWG MULTI-CONTACT ELECTRICAL EXTENSION 3-OUTPUT STRIP TYPE 5MTS LONG HARD CABLE, HIGH RESISTANCE AND DURABILITY RESISTS FOR OUTDOORS
Reference: 3811
Brand: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Reference: 3809
Brand: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3808
Brand: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3807
Brand: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3806
Brand: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2451
Brand: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

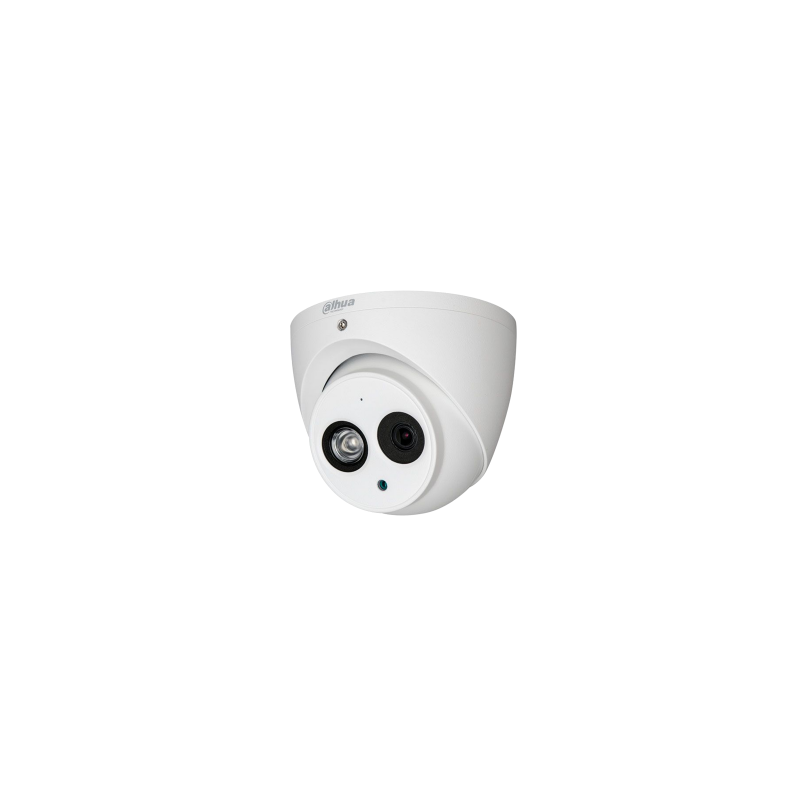

Model: HAC-HDW1801EM(-A)
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/2.7 inch CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Effective Pixels |
3840 (H)×2160 (V), 4K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
PAL: 1/3s-1/100000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Minimum Illumination |
0.03Lux/F2.0, 30IRE, 0Lux IR on |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR Distance |
Distance up to 50m (164.04ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR On/Off Control |
Auto; manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR LED Number |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt/Rotation Range |
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mount Type |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
3.6mm; 6mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Aperture |
F2.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle of View |
3.6mm: 104°×87°×47° (diagonal×horizontal×vertical) 6mm: 62.4°×54.7°×31.3° (diagonal×horizontal×vertical) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Iris type |
Fixed Iris |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
1.8m/3.6m (3.28ft/5.91ft/11.81ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
3.6mm |
107m (351ft) |
43m (141ft) |
21m (69ft) |
11m (36ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
6mm |
160m (525ft) |
64m (210ft) |
32m (105ft) |
16m (52ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Frame Rate |
CVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960×480) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Day/Night |
Auto switch by ICR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
BLC |
BLC/HLC/WDR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WDR |
120dB/WDR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
White Balance |
Auto; manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gain Control |
Auto; manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Noise Reduction |
2D&3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart IR |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Defog |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Digital Zoom |
4X |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mirror |
Off/On |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Privacy Masking |
Off/On (8 area, rectangle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Data sheet
Reference: 3331
Brand: Dahua
Model: PFB204W Aesthetic design Wall mount bracket Material: aluminum & SECC
Reference: 3350
Brand: Dahua
Model: PFA130-E Neat & Integrated design Material: Aluminum IP66 junction box
Reference: 1352
Brand: Apagon
Model: 131-1220V1/US Wall-mount Power Adapter, 12VDC2A, Vertical Pins, Input Voitage: AC100-240V 50/60Hz Output Voltage: 12V 2A, Operating Power: 24W with LED indicator, US Plug
Reference: 1853
Brand: Dahua
Model: HAC-HDBW2802R-Z Starlight, 120dB True WDR, 3DNR Max. 4K resolution HD/SD switchable Audio in interface 3.7-11mm motorized lens Max. IR length 30m, Smart IR IP67, IK10, DC12V±30%
Reference: 1808
Brand: Dahua
Model: HAC-HFW2802E-A Starlight, 120dB True WDR, 3DNR Max. 4K resolution HD/SD switchable Audio in interface, built-in mic 3.6mm fixed lens (2.8mm, 6mm optional) Max. IR length 40m, Smart IR IP67, DC12V±30%
Reference: 452
Brand: Dahua
Model: HAC-HDBW3802E-Z 1/2” 8Megapixel progressive scan CMOS 3x optical motorized zoom lens Max. 15fps@3840×2160 120db true WDR,2D&3D NR Intelligent functions Max.50m IR distance, smart IR IP67&IK10 ingress protection Dual voltage input (DC 12v±25%/AC 24V±25%) DC12V voltage output Up to 500m transmission with RG59 coaxial cable.
Reference: 1800
Brand: Dahua
Model: HAC-HFW2802T-Z-A Starlight, 120dB True WDR, 3DNR Max. 4K resolution HD/SD switchable Audio in interface, built-in mic 3.7-11mm motorized lens Max. IR length 80m, Smart IR IP67, DC12V±30%
Reference: 450
Brand: Dahua
Model: HAC-HFW3802E-Z-VP 1/2” 8Megapixel progressive scan CMOS 3x optical motorized zoom lens Max. 15fps@3840×2160 120db true WDR,2D&3D NR Intelligent functions Max.100m IR distance, smart IR IP67/IK10 ingress protection Dual voltage input (DC 12v±25%/AC 24V±25%) DC12V voltage output Up to 500m transmission with RG59 coaxial cable.
Reference: 1948
Brand: Dahua
Model: HAC-ME1809H-A-PV Max 15 fps@4K. 120 dB true WDR, 3D NR. Smart Dual Light. Protection Against Red-Blue Light Interference (Only 4K). Active deterrence with red, blue light, siren and alarm out interface. 40 m illumination distance. Super Adapt. Built-in mic. 3.6 mm fixed lens (2.8 mm optional). CVI/CVBS/AHD/TVI switchable....
Reference: 1862
Brand: Dahua
Model: HAC-HDW1801M 120dB True WDR, 3DNR Max. 4K resolution CVI/CVBS/AHD/TVI switchable Fixed lens (2.8mm; 3.6mm optional) Max. IR length 30m, Smart IR IP67, 12V±30%DC
Reference: 1911
Brand: Dahua
Model: HAC-HDW1801T-IL-A Max. 15 fps@4K. 120 dB true WDR, 3D NR. Smart Dual Illuminators. 40 m illumination distance. Super Adapt. Built-in MIC. 2.8 mm fixed lens. CVI/CVBS/AHD/TVI switchable. IP67, 12 VDC.
Reference: 1851
Brand: Dahua
Model: HAC-HDBW2802R Starlight, 120dB True WDR, 3DNR Max. 4K resolution HD/SD switchable Audio in interface 3.6mm fixed lens (2.8mm optional) Max. IR length 30m, Smart IR IP67, IK10, DC12V±30%
Reference: 1801
Brand: Dahua
Model: HAC-HFW2802E-A Starlight, 120dB True WDR, 3DNR Max. 4K resolution HD/SD switchable Audio in interface, built-in mic 3.6mm fixed lens (2.8mm, 6mm optional) Max. IR length 40m, Smart IR IP67, DC12V±30%
Model: HAC-HDW1801EM(-A)
