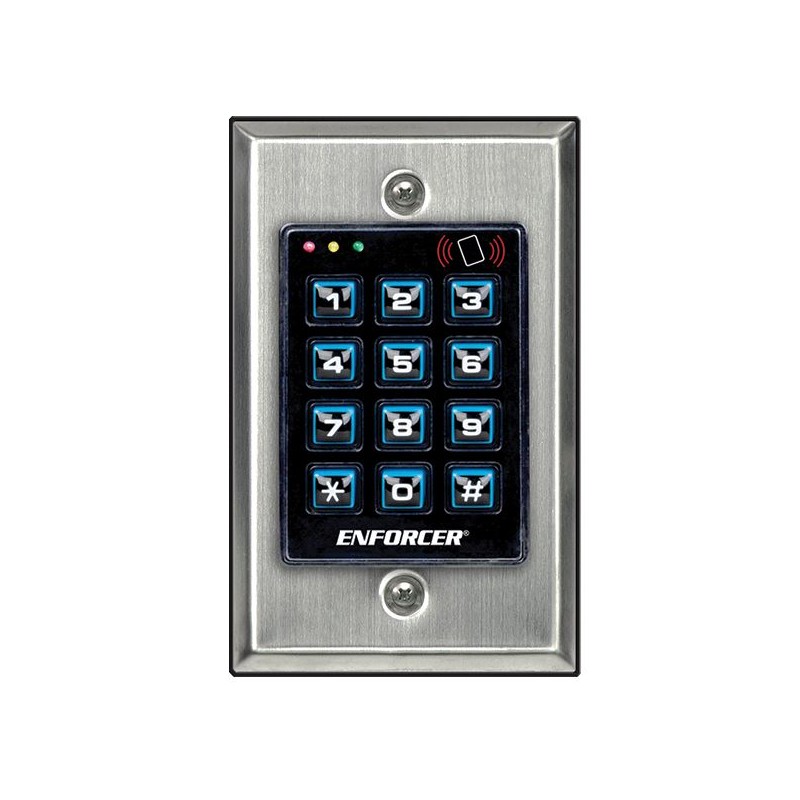

SK-1131-SPQ Access Control Keypad, Built-in Proximity Reader, 1,200 Users, 3 Outputs, Indoors

Model: SK-1131-SPQ

• Built-in proximity card reader

• 12~24 VAC/VDC Auto-adjusting operation

• Up to 1,000 possible user codes (000~999) and/or proximity cards programmable for output #1, 100 (001~100) for output #2, and 100 (001~100) for output #3

• Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited time use (1~99 hours)

• Output #1: Form C relay, 1A@30VDC max.

• Output #2: Form C relay, 1A@30VDC max.

• Output #3: Transistor ground, 100mA@24VDC

• Outputs #1, #2, and #3 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)

• Tamper output: N.C. Dry contact, 50mA@24VDC max.
• Egress input lets users exit the premises without keying in the code

• Door sensor input for anti-tailgating operation
