Referencia: 5981
Marca: Apagon
Model: 5M-16AWG MULTI-CONTACT ELECTRICAL EXTENSION 3-OUTPUT STRIP TYPE 5MTS LONG HARD CABLE, HIGH RESISTANCE AND DURABILITY RESISTS FOR OUTDOORS
Referencia: 3811
Marca: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Referencia: 3809
Marca: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 3808
Marca: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 3807
Marca: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 3806
Marca: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2451
Marca: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

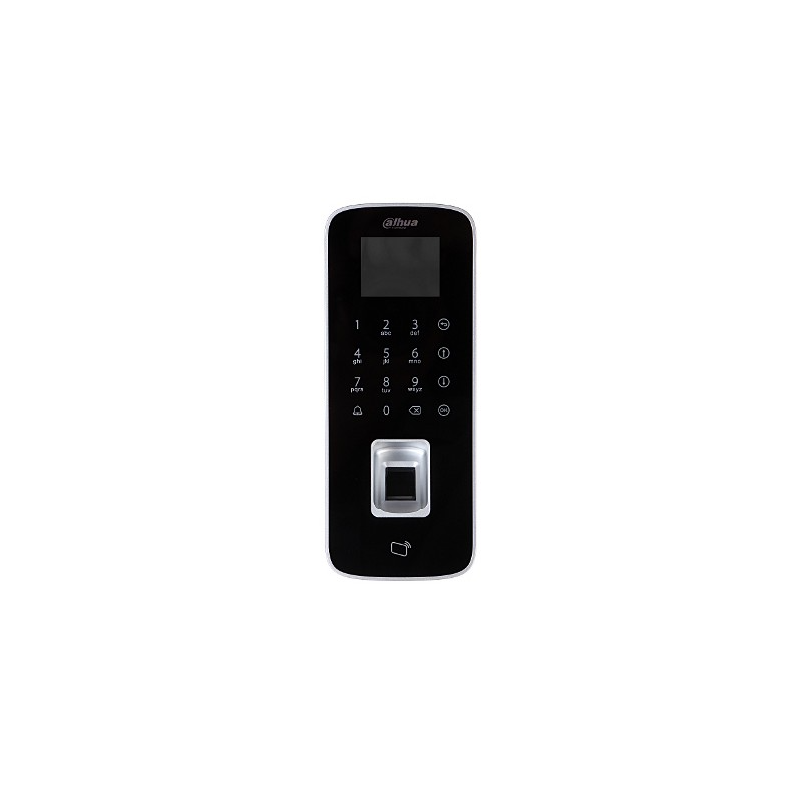

Model: ASI1212D
|
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
ASI1212D |
ASI1212D-D |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
32 Bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Input/Output Ports |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Input |
Inputs (Door sensor x 1, Exit button x 1, Alarm input x 1) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Output |
Output Relay x 3 (Door lockx 1, Bellx 1, Alarm x 1) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Read |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Read Format |
13.56MHz |
125KHz |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Read Range |
1-3cm (max.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Response Time |
<0.1s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Fingerprint Read |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Response Time |
≤1.5s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Capacity |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card holders |
30,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Events |
150,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Fingerprint |
3000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
P2P, DHCP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Access control |
Anti-passback, Multi-card unlock |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User Management |
General, VIP, Guest, Patrol, Black list, Duress |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Function |
Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Schedule Setting |
Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interface |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
To PC |
RJ45(10/100M) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
To Reader |
Wiegand34/26, RS485 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Genreal |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RTC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Voice Prompt |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Beep Tone |
Buzzer |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
DC 9-15V/400mA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
-10°C to +55°C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Humidity |
10%RH–90%RH (no-condensation) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimension(W×D×H) |
83.0mm×210.0mm×33.0mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Weight |
0.44kg |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Environment |
Indoor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Referencia: 3269
Marca: Dahua
Model: IC-S50 Standard: MIFARE S50, 13.56 MHz Compatibility: ISO/IEC 14443A Range: Approximately 10 cm (3.94 in.) Dimensions: 86.0 mm x 54.0 mm x 0.80 mm (3.39 in. x 2.13 in. x 0.03 in.) Weight: 0.006 kg (0.013 lb) Manufacturer/Brand: Dahua
Referencia: 3285
Marca: Dahua
Features: Standard: MIFARE S50, 13.56MHz Compatibility: ISO/IEC 14443A Range: Approximately 10 cm (3.94 in.) Manufacturer/Brand: Dahua
Referencia: 3287
Marca: Dahua
Model: Mifare Tag Size: customized Memory configuration: 1k byte, 4K Byte Reading distance: 1-3cm Printing craft & encoding: printing and laser logo, barcoding Chip:MIFARE 1K, MIFARE 4K Application: access control system
Referencia: 1276
Marca: Kodicam
Model: KS-280W Features: 1. Fail safe, Power to lock 2. Collinear Load Test 280kg, 600pounds 3. Dual Voltage 12 or 24 VDC (optional) 4. The Standard Voltage is 12VDC when Finished 5. MOV Provides Reverse Current Protection 6. Suitable for Wooden Door, Glass Door, Metal Door, Fireproof Door 7. LED Indicates the Lock Status, lock Status sensor (NO/NC/COM)...
Referencia: 1333
Marca: Apagon
Model: KS-EF2 Metal case, embedded design One Programming relay output Multi-color LED Status Display 1000 Users（100 Fingerprint Users + 890 Card Users + 10 Visitor User) Card type: 125KHz EM card Capacitive Fingerprint Sensor Wiegand 26 bits output Wiegand 26/34 bits input automatic identification
Referencia: 3268
Marca: Dahua
Model: ASM202 No driver installation, plug and play USB power supply and communication Optical fingerprint module.
Referencia: 1330
Marca: Apagon
Model: KF7EM-W Plastic case Fingerprint access controller and reader, WG26 Input / output Capacity: 200 fingerprints and 500 cards Two accesses: card, fingerprint
Referencia: 1228
Marca: ZKTECO
Model: F7 1-touch 1-second employee recognition Fingerprint reader with durable and highly accurate ZK optical sensor Capacity to store 2200 template and 50000 transactions No need to enter PINs Supports 50 time zones, 5 groups and 10 unlock combinations Tamper-proofs switch and alarm outputs Request-to-exit and alarm contacts...
Referencia: 1323
Marca: Kodicam
Model: Bio Mini (PC Based) Bio Mini incorporates high quality optical sensor that can capture fingerprints at resolution of 500dpi. The sensor also features IP65 protection on its surface for protection against dust and water to ensure high performance.
Referencia: 594
Marca: SECO-LARM
Model: SK-2612-SFSQ 500DPI Optical fingerprint reader Up to 3,000 users (up to 1,000 fingerprint users, up to 2,000 PIN users) User code length 4~6 digits Fingerprint identification time – ≤1 second Fingerprint false acceptance rate – ≤0.01% Fingerprint false rejection rate – ≤0.1% 12VDC Operation Form C relay output – 2A@12VDC Tamper...
Referencia: 3273
Marca: Dahua
Model: ASR2102A PC material, acrylic panel and IP65, suitable for indoor and outdoor use Support contactless recognition of IC card (Mifare card) Support card/fingerprint unlock Support RS-485 communication protocol Support buzzer and indicator prompt Support anti-tampering alarm The built-in watchdog can detect and control the abnormal operation status...
Referencia: 6650
Marca: ZKTECO
Model: FR1200 A fingerprint reader with RS485 communication interface works with biometric access controllers and fingerprint standalone access control, including inBIO series controllers, F8 and so on. It offers the function of capturing and transferring fingerprint samples to access control panel. Standard Functions: ID Card Module Voice Prompt:...
Referencia: 1326
Marca: Kodicam
Model: KS-EF1 Embedded design with mini size Metal case and waterproof, conform to IP66 User capacity: 100 fingerprints and 3000 cards Card type: 125KHz EM card One programmable relay operation Latch mode to hold door or gate open Tri-color LED status display
Referencia: 3262
Marca: Dahua
Model: DHI-ASR1102A-V3 RS-485 Protocol1 MIFARE 13.56 MHz Card or Fingerprint Stores Up to 3,000 Fingerprints Watch Dog Function for Tamper Detection Audible and Visual Indicators Surface-mount Installation
Referencia: 6521
Marca: ZKTECO
Model: MB160 Face Capacity: 1200 Fingerprint Capacity: 1500 ID Card Capacity: 2000(Optional) Record Capacity: 100,000 Display2.8-inch TFT Screen Communication: TCP/IP, USB-Host, Wi-Fi (Optional) Standard Functions: SMS, DST, Schedule-bell, Self-Service Query, Automatic Status Switch, T9/ Input, Photo ID, Camera, Multi-verification,12V Output,RS232...
Referencia: 6530
Marca: ZKTECO
Model: MA300 User & Card Capacity: 10,000 Fingerprint Capacity: 1,500 Transaction Capacity: 100,000 Hardware: 1GHz Single core, LPDDR 64M, Flash 128M Algorithm Version: ZKFinger V 10.0 Fingerprint Verification Accuracy: FAR≤0.0001% FRR≤0.01% Fingerprint Verification: 1:N Fingerprint Recognition Time: ＜0.2 second Supported Card Type: ID card (125kHz...
Referencia: 1329
Marca: Apagon
Model: KF3EM-W Zinc alloy case, durable, anti-vandal Waterproof degree：IP68 Antimagnetic: can prevent untrust personto open lock by strong magnetsLarge capacity with 200 fingerprints & 500 card usersCan be used as WG26 readerCan connect external EM/IC/HID WG26 readerTwo units can be interlocked
Referencia: 1257
Marca: ZKTECO
Model: MF-131 strictly follow the national security product standard. suitable for office entrances and exits, factory, hotel, school, etc. Adopt RS485 or tcp/ip performs networks. USB flash download/download engine is available. anti-disassembly alarm, threatens alarm, open an illegal alarm, and do not prevent the alarm available....
Referencia: 1246
Marca: Kodicam
Model: F2 Standalone Fingerprint reader Supports USB & RS485/232 communication 3,000 fingerprint users and 3,000 card users Supports to back up users’ data (fingerprint & card user info) Supports to upload & download users’ data Can be used as a standalone access control Wiegand26/34 output for connecting to a...
Referencia: 1334
Marca: Apagon
Model: KS-EF4 Capacitive Fingerprint Sensor, touch keypad Metal case, embedded design Waterproof, conforms IP66 One relay, 1000 users (990 common users +10 visitor users) Card Type: 125KHz EM Card Wiegand 26~44bits output Can be used as Wiegand reader with buzzer output User data can be transferred (except fingerprint users) Backlit keypad,...
Model: ASI1212D
