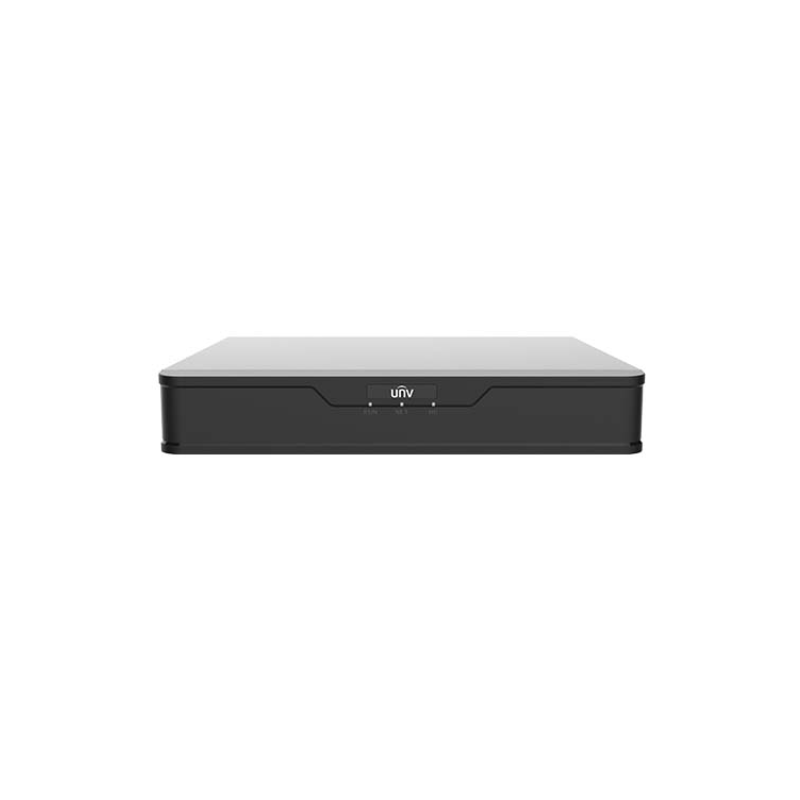

XVR301-16G3 Digital Video Recorder 1 SATA

Model

XVR301-16G3

Video/Audio Input

Analog Video Input

16-ch, BNC

IP Video Input

8-ch(up to 16-ch after analog camera conversion)

Supported Analog Camera Types

Support AHD input: 5MP@12fps
4MP@15fps
1080P@30fps
720P@30fps
Support TVI input: 5MP@12fps
4MP@15fps
1080P@30fps
720P@30fps
Support CVI input: 1080P@30fps
720P@30fps
Support CVBS input

Audio Input

1-ch, RCA

Audio Compression

G.711U

Video/Audio Output

VGA Output

1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

HDMI Output

1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Audio Output

1-ch, RCA

Synchronous Playback

HD:8-ch
SD:16-ch

Live view display

HDMI/VGA: 1/4/6/8/9/16/25

Two-way Audio

1-ch, RCA

Snapshot

FTP/Schedule/Event Snapshot

Schedule snapshot is not supported
16-ch snapshot, up to 704*576 resolution

Network

Incoming Bandwidth

40Mbps (up to 56Mbps after all analog camera conversion)

Outgoing Bandwidth

64Mbps

Remote Users

128

Protocols

TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP

Browser

IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows

Recording Resolution

5MP Lite/4MP Lite /1080P Lite/720P/D1/CIF

Recording
Frame Rate

Main stream:

Sub stream:

5MP Lite@6fps

D1@6fps

4MP Lite@8fps

D1@8fps

1080P Lite@12fps

D1@12fps

720P@12fps

D1@12fps

Audio Sample Rate

8KHz,16 bit per channel

Audio Bit Rate

64Kbps per channel

Decoding

Capability

Analog: 8 x 5MP Lite@6, 8 x 4MP Lite@8, 8 x 1080P Lite@12
IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30

Hard Disk

SATA

1 SATA interface

Capacity

Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature)

Smart Alarm

VCA Detection

Ultra Motion Detection(UMD) for analog:8-ch

VCA Search

Behavior Search

General Alarm

General Alarm

Motion detection

Alert Alarm

IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

External Interface

Network Interface

1 RJ45 10M/100M self-adaptive Ethernet Interface

USB Interface

Rear panel: 2 x USB2.0

Serial Interface

1 x RS485

General

Power Supply

12V DC
Power Consumption: ≤ 10 W( without HDD )

Working Environment

-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)

Dimensions(W×D×H)

260mm ×226mm× 47mm (10.2" × 8.9"×1.8")

Weight ( without HDD )

≤1.1 Kg ( 2.42lb )
