Referencia: 10167
Marca: Apagon
Model: FB-CJD-LCSM PVC White Cover LC/PC Duplex Single Mode Fits into any Keystone Opening
Referencia: 10164
Marca: Apagon
Model: FB-CJD-LCMM UPC polish Color: Aqua body with white keystone LC/UPC Duplex OM3 Multimode Fits into any Keystone Opening Female - Female
Referencia: 10163
Marca: Apagon
Model: FB-CJS-SCMM Simplex SC/UPC OM3 Multimode UPC polish White keystone inserter Aqua coupler
Referencia: 8350
Marca: Apagon
Model: DP-HDMI4K30HZ Connect a computer with a DisplayPort to an HDMI-equipped HDTV, monitor, or projector for audio/video streaming Supports video resolutions up to 4K@30Hz Converts signal from DisplayPort to HDMI only (not bi-directional) PLUG & PLAY: Ready to use, right out of the box; no external power adapter needed
Referencia: 8353
Marca: Apagon
Model: DP-HDMI8K30HZ Connect a computer with a DisplayPort to an HDMI-equipped HDTV, monitor, or projector for audio/video streaming Supports video resolutions up to 8K@30Hz Converts signal from DisplayPort to HDMI only (not bi-directional) PLUG & PLAY: Ready to use, right out of the box; no external power adapter needed
Referencia: 8352
Marca: Apagon
Model: DP-HDMI4K60HZ-2 Connects a computer with a DisplayPort to an HDMI-equipped HDTV, monitor, or projector for audio/video streaming Supports video resolutions up to 4K@60Hz Converts signal from DisplayPort to HDMI only (not bi-directional) PLUG & PLAY: Ready to use, right out of the box; no external power adapter needed
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2253
Marca: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Referencia: 2451
Marca: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

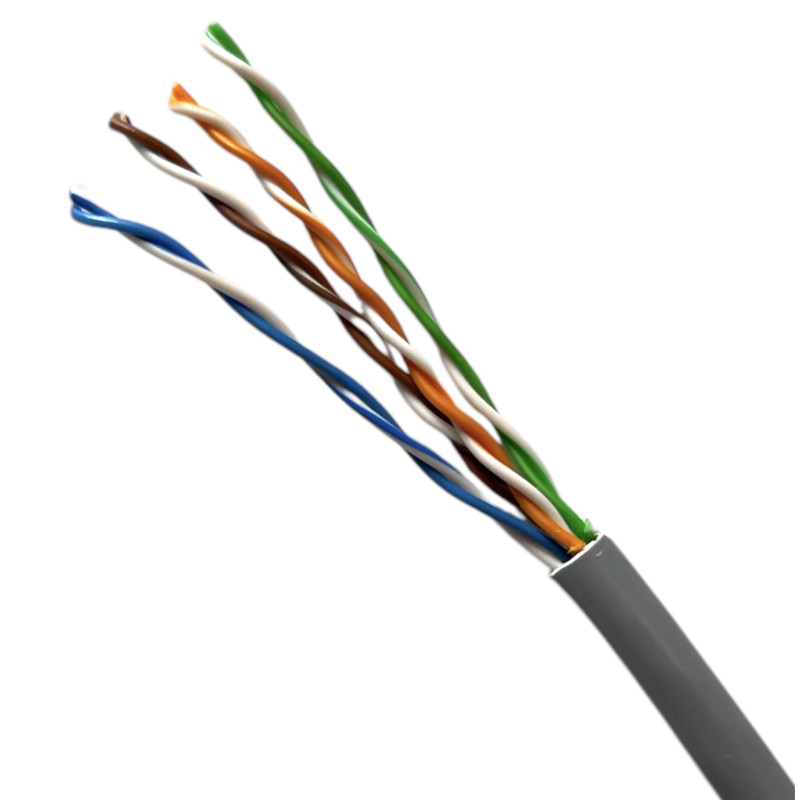

Model: CAB-LC2100A-IN
|
Test Standard |
YD/T1019-2013 |
|
Product specification |
HSYV-5e 4×2×0.50 |
|
Packing length |
305±1 m |
|
Ambient temperature |
-20℃～60℃ |
|
Rip-cord |
Yes |
|
Conductor |
|
|
Material |
Solid-Bare Copper |
|
AWG |
24 |
|
Nom.O.D.(mm) |
0.5±0.005 mm |
|
DC resistance |
≤95 Ω/km |
|
Insulation |
|
|
Diameter |
0.9±0.05 mm |
|
Material |
HDPE |
|
Thickness |
0.2±0.02 mm |
|
Color |
Blue/White- Blue,Green/White-Green,Orange/White-Orange,Brown/White-Brown |
|
Pitch |
|
|
Offset pitch |
≤25 mm |
|
Cable pitch |
≤140 mm |
|
Sheath |
|
|
Material |
PVC(complies RoHS/REACH) |
|
Thickness |
0.55±0.05 mm |
|
External O.D. |
5.1±0.3 mm |
|
Tensile strength |
>13.5 Mpa |
|
Color |
Gray(RAL7046) |
Referencia: 5132
Marca: Kodicam
Model: 5132-110/YL High-Performance Data Cable 350MHz Bandwidth for Data Applications Category-5E Unshielded Twisted Pair 24AWG Solid Copper Conductors Easily Identified Color-Striped Pairs Exceeds TIA/EIA-568C.2, ISO/IEC 11801 Riser Rated PVC Jacket, CMR ETL Listed, RoHS Compliant, TAA Compliant 1,000ft Pull Box
Referencia: 5000
Marca: Kodicam
Model: CCA-6-Blue Blue color 1000-foot of uncapped, unshielded twisted pair Ethernet cable Copper Clad Aluminum/Copper Clad Alloy (CCA) construction Conveniently packaged in a cardboard box with side outlet Category 6 Four pairs UTP EIA/TIA ETL Verified 24 AWG
Referencia: 982
Marca: Kodicam
Model: Cat5E+18/2-1000 CAT5e UTP 4pair CCAM+2Core power cable 18awg White
Referencia: 977
Marca: Kodicam
CAT5e UTP 4pair CCAM+2Core power cable 18awg outdoor jacket
Referencia: 315
Marca: Vertical Cable
Model: 151-110/YL High-Performance Data Cable 350MHz Bandwidth for Data Applications Category-5E Unshielded Twisted Pair 24AWG Solid Copper Conductors Easily Identified Color-Striped Pairs Exceeds TIA/EIA-568C.2, ISO/IEC 11801 Riser Rated PVC Jacket, CMR ETL Listed, RoHS Compliant, TAA Compliant 1,000ft Pull Box
Referencia: 5131
Marca: Kodicam
Model: 5131-109/WH High-Performance Data Cable 350MHz Bandwidth for Data Applications Category-5E Unshielded Twisted Pair 24AWG Solid Copper Conductors Easily Identified Color-Striped Pairs Exceeds TIA/EIA-568C.2, ISO/IEC 11801 Riser Rated PVC Jacket, CMR ETL Listed, RoHS Compliant, TAA Compliant 1,000ft Pull Box
Referencia: 5130
Marca: Kodicam
Model: 5130-102/BL High-Performance Data Cable 350MHz Bandwidth for Data Applications Category-5E Unshielded Twisted Pair 24AWG Solid Copper Conductors Easily Identified Color-Striped Pairs Exceeds TIA/EIA-568C.2, ISO/IEC 11801 Riser Rated PVC Jacket, CMR ETL Listed, RoHS Compliant, TAA Compliant 1,000ft Pull Box
Referencia: 5002
Marca: Kodicam
Model: CCA-5-5002 Black color 1000-foot of uncapped, unshielded twisted pair Ethernet cable Copper Clad Aluminum/Copper Clad Alloy (CCA) construction Conveniently packaged in a cardboard box with side outlet Category 5e - Suitable for Gigabit Ethernets (Also works great on 10BaseT and 100BaseTX Ethernets) Four pairs UTP EIA/TIA ETL Verified 24 AWG
Referencia: 5133
Marca: Kodicam
Model: 5133-101/BK High-Performance Data Cable 350MHz Bandwidth for Data Applications Category-5E Unshielded Twisted Pair 24AWG Solid Copper Conductors Easily Identified Color-Striped Pairs Exceeds TIA/EIA-568C.2, ISO/IEC 11801 Riser Rated PVC Jacket, CMR ETL Listed, RoHS Compliant, TAA Compliant 1,000ft Pull Box
Referencia: 5134
Marca: Kodicam
Model: 5134-108/RD High-Performance Data Cable 350MHz Bandwidth for Data Applications Category-5E Unshielded Twisted Pair 24AWG Solid Copper Conductors Easily Identified Color-Striped Pairs Exceeds TIA/EIA-568C.2, ISO/IEC 11801 Riser Rated PVC Jacket, CMR ETL Listed, RoHS Compliant, TAA Compliant 1,000ft Pull Box
Referencia: 123
Marca: Vertical Cable
Model: 151-102/BL High-Performance Data Cable 350MHz Bandwidth for Data Applications Category-5E Unshielded Twisted Pair 24AWG Solid Copper Conductors Easily Identified Color-Striped Pairs Exceeds TIA/EIA-568C.2, ISO/IEC 11801 Riser Rated PVC Jacket, CMR ETL Listed, RoHS Compliant, TAA Compliant 1,000ft Pull Box
Referencia: 314
Marca: Vertical Cable
Model: 151-109/WH High-Performance Data Cable 350MHz Bandwidth for Data Applications Category-5E Unshielded Twisted Pair 24AWG Solid Copper Conductors Easily Identified Color-Striped Pairs Exceeds TIA/EIA-568C.2, ISO/IEC 11801 Riser Rated PVC Jacket, CMR ETL Listed, RoHS Compliant, TAA Compliant 1,000ft Pull Box
Model: CAB-LC2100A-IN
