Reference: 5981
Brand: Apagon
Model: 5M-16AWG MULTI-CONTACT ELECTRICAL EXTENSION 3-OUTPUT STRIP TYPE 5MTS LONG HARD CABLE, HIGH RESISTANCE AND DURABILITY RESISTS FOR OUTDOORS
Reference: 3811
Brand: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Reference: 3809
Brand: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3808
Brand: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3807
Brand: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3806
Brand: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2451
Brand: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

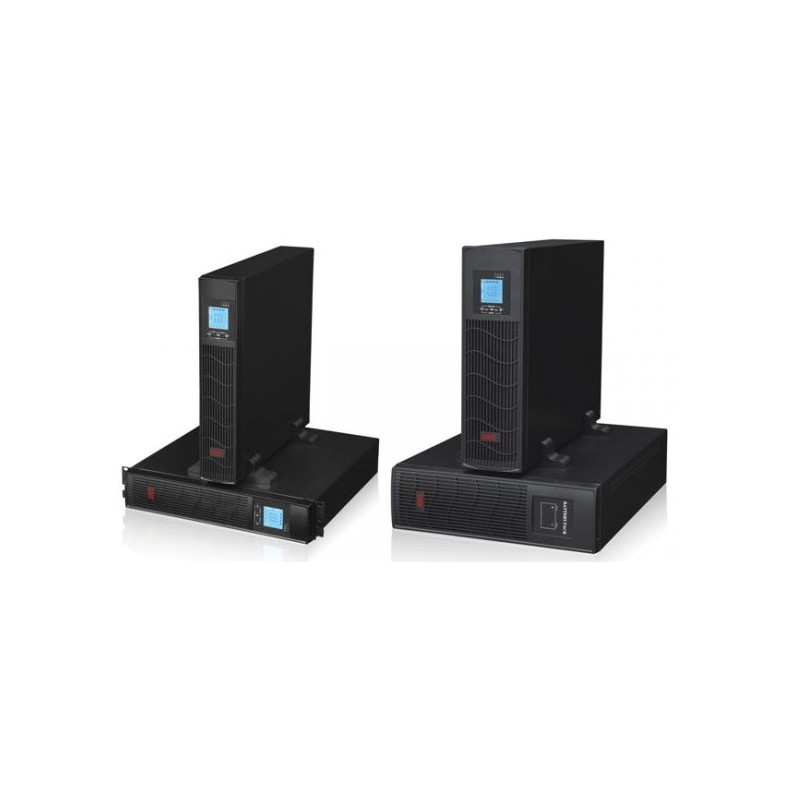

Model: AR-901IIRT UPS
| AR900Pro RT 1 - 3 kVA | |||||||||
| MODEL | AR901IIRT | AR902IIRT | AR903IIRT | ||||||
| Capacity | 1 kVA / 900 W | 2 kVA / 1800 W | 3 kVA / 2700 W | ||||||
| INPUT | |||||||||
| Rated voltage | 110 Vac | ||||||||
| Voltage range | 110 ~ 120 Vac (linear derating between 50% and 100% load); 176 ~ 280 Vac (no derating); 280 ~ 300 Vac (derating 50%) | ||||||||
| Frequency | 40 ~ 70 Hz (auto-sensing) | ||||||||
| Power factor | ≥ 0.99 | ||||||||
| Bypass voltage range | - 25% ~ + 15% settable | ||||||||
| Total harmonic distortion |
≤ 6% | ||||||||
| OUTPUT | |||||||||
| Voltage | 110 Vac | ||||||||
| Voltage regulation | ± 1% | ||||||||
| Frequency | 45 ~ 55 Hz or 55 ~ 65 Hz (synchronized range); 50 / 60 Hz ± 0.1 Hz (battery mode) | ||||||||
| Waveform | Sinusoidal | ||||||||
| Power factor | 0.9 | ||||||||
| Total harmonic distortion (THDv) | ≤ 2% (linear load), ≤ 5% (non-linear load) | ||||||||
| Crest factor | 3:1 | ||||||||
| Overload | 105% ~ 125% for 1 min, 125% ~ 150% for 30 s, > 150% for 300 ms | ||||||||
| BATTERIES | |||||||||
| DC voltage | 24 V (S) | 36 V (S) | 36 V (H) | 48 V (S) | 72 V (S) | 72 V (H) | 72 V (S) | 96 V (H) | |
| Inbuilt battery | 2 x 9 Ah | 3 x 7 Ah | / | 4 × 9 Ah | 6 x 7 Ah | / | 6 × 9 Ah | / | |
| Charging current (max.) | 1A | 6 A | 1 A | 6 A | 1 A | 6 A | |||
| Recharge time | Standard model: 90% capacity restored in 4 hours; Long time model: depend on the capacity of battery |
||||||||
| SYSTEM | |||||||||
| Efficiency | ≥ 90% (Mains mode) ≥ 85% (Battery mode) ≥ 95% (ECO mode) |
≥ 91% (Mains mode) ≥ 86% (Battery mode) ≥ 96% (ECO mode) |
≥ 92% (Mains mode) ≥ 87% (Battery mode) ≥ 97% (ECO mode) |
||||||
| Transfer time | Mains mode to battery mode: 0 ms Inverter mode to bypass mode: 4 ms (typical) |
||||||||
| Protections | Short-circuit, overload, overtemperature, battery discharge protection and fan testing protection | ||||||||
| Communications | RS232 (standard), USB / RS485 / dry contacts / SNMP (optional) | ||||||||
| Display | LCD + LED | ||||||||
| Standards | EN 62040-1, EN 62040-2, EN 61000-3-2, EN 61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-2-2, IEC 62040-2, IEC 62040-1 | ||||||||
| OTHERS | |||||||||
| Operating temperature | 0℃ ~ 40℃ | ||||||||
| Storage temperature | - 25 ~ 55°C (without batteries) | ||||||||
| Relative humidity | 0 ~ 95% (non-condensing) | ||||||||
| Altitude | ≤ 1000 m, derating 1% for each additional 100 m | ||||||||
| IP rating | IP 20 | ||||||||
| Noise level at 1m | ≤ 50 dB | ||||||||
|
Dimensions (W × D × H) (mm) |
440 x 338 x 88 | 440 x 430 x 88 | 440 x 468 x 88 | 440 x 430 x 88 | 440 x 560 x 88 |
440 x 468 x 88 |
440 x 560 x 88 |
440 x 468 x 88 | |
|
Packaged dimensions (W × D × H) (mm) |
545 x 428 x 194 |
545 x 560 x 201 |
545 x 592 x 201 |
545 x 560 x 201 |
545 x 690 x 201 | 545 x 592 x 201 | 545 x 690 x 201 | 545 x 592 x 201 | |
| Net weight (kg) | 10.6 | 15.5 | 7.6 | 18.7 | 25.6 | 9.7 | 26.8 | 10.1 | |
| Gross weight (kg) |
11.3 | 18.6 | 11.1 | 21.8 | 25.8 | 13.2 | 29.7 | 13.6 |
|
Reference: 1091
Brand: Kodicam
Model: KG-Open-8U Size: 18" H x 20" W x 18″-30" D. Weight capacity of 44 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 30 inches from front to back.
Reference: 1090
Brand: Kodicam
Model: KG-Open-4U Size: 10" H x 20" W x 18″-30" D. Weight capacity of 50 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 30 inches from front to back.
Reference: 1092
Brand: Kodicam
Model: KG-Open-12U Size: 26" H x 20" W x 18″-30" D. Weight capacity of 66 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 30 inches from front to back.
Reference: 1089
Brand: Kodicam
Model: KG-WALL-4U Fits any standard 4U 19” patch panel Bracket and Frames made of 2mm thick steel (14AWG), painted black Comes with M5 screws (5mm x 15mm)
Reference: 1088
Brand: Kodicam
Model: KG-WALL-3U Fits any standard 3U 19” patch panel Bracket and Frames made of 2mm thick steel (14AWG), painted black Comes with M5 screws (5mm x 15mm)
Reference: 1087
Brand: Kodicam
Model: KG-WALL-2U Fits any standard 2U 19” patch panel Bracket and Frames made of 2mm thick steel (14AWG), painted black Comes with M5 screws (5mm x 15mm)
Reference: 847
Brand: Kodicam
Model: WB-CA019-6U Fits any standard 2U 19” patch panel Adjustable depth from 10” to 13” Bracket and Frames made of 2mm thick steel (14AWG), painted black Comes with M5 screws (5mm x 15mm)
Reference: 846
Brand: Kodicam
Model: WB-CA019-4U Fits any standard 4U 19” patch panel Adjustable depth from 10” to 13” Bracket and Frames made of 2mm thick steel (14AWG), painted black Comes with M5 screws (5mm x 15mm)
Reference: 845
Brand: Kodicam
Model: WB-CA019-2U Fits any standard 2U 19” patch panel Adjustable depth from 10” to 13” Bracket and Frames made of 2mm thick steel (14AWG), painted black Comes with M5 screws (5mm x 15mm)
Reference: 828
Brand: Kodicam
Model: KGNCA-47U-800 Size: 90" H x 24" W x 32" D. Weight capacity of 2204 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 31 inches from front to back.
Reference: 996
Brand: Kodicam
Model: WBNC-A-DCPY-42U-1000 Size: 81" H x 32" W x 40" D. Weight capacity of 2500 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 39 inches from front to back.
Reference: 498
Brand: Kodicam
Model: KGNCA-42U-800 · Size: 86" H x 24" W x 32" D. · Weight capacity of 2204 lbs. · Robust welded structure. · Rails with screwed cage nut. · Total usable space of 28 inches from front to back.
Reference: 827
Brand: Kodicam
Model: KGNCA-42U-1000 Size: 80" H x 24" W x 40" D. Weight capacity of 2204 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 36 inches from front to back
Reference: 496
Brand: Kodicam
Model: KGNCA-37U-800 Size: 76" H x 24" W x 32" D. Weight capacity of 2204 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 28 inches from front to back.
Reference: 2002
Brand: Kodicam
Model: KGNCA-32U-1000 Size: 64" H x 32" W x 40" D. Weight capacity of 2204lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 39 inches from front to back.
Reference: 2000
Brand: Kodicam
Model: KGNCA-32U-800 Size: 66" H x 24" W x 32" D. Weight capacity of 2204 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 28 inches from front to back.
Reference: 2001
Brand: Kodicam
Model: KGNCA-32UH-1000 Size: 64" H x 24" W x 40" D. Weight capacity of 2204 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 39 inches from front to back.
Reference: 497
Brand: Kodicam
Model: KGNCA-42U-800 Size: 80" H x 24" W x 32" D. Weight capacity of 2204 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 28 inches from front to back.
Reference: 501
Brand: Kodicam
Model: KGNCA-37U-800 Size: 72" H x 24" W x 32" D. Weight capacity of 2204 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 31 inches from front to back.
Reference: 500
Brand: Kodicam
Model: KGNCA-32U-800 Size: 64" H x 24" W x 32" D. Weight capacity of 2204 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 31 inches from front to back.
Reference: 822
Brand: Kodicam
Model: KGC-9U-450 Size: 19" H x 23.5" W x 18" D. Weight capacity of 132 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 17 inches from front to back.
Reference: 170
Brand: Kodicam
Model: KGC-6U-450 Size: 15" H x 24" W x 18" D. Weight capacity of 132 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 14 inches from front to back.
Reference: 171
Brand: Kodicam
Model : KGC-4U-450 Size: 10" H x 24" W x 18" D. Weight capacity of 128 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 14 inches from front to back.
Reference: 172
Brand: Kodicam
Model: KGB-6U-600 Size: 15" H x 23.5" W x 24" D. Weight capacity of 132 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 23 inches from front to back.
Reference: 2208
Brand: Kodicam
Model: WB-OD-D Size: 24" H x 16" W x 8" D. Weight capacity of 150 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 7 inches from front to back.
Reference: 169
Brand: Kodicam
Model: KGB-6U-450 Size: 14" H x 23.5" W x 18" D. Weight capacity of 132 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 17 inches from front to back.
Reference: 166
Brand: Kodicam
Model: KGB-4U-600 Size: 11" H x 23.5" W x 24" D. Weight capacity of 128 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 23 inches from front to back.
Reference: 2206
Brand: Kodicam
Model: WB-OD-E-9U Size: 21" H x 24" W x 18" D. Weight capacity of 150 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 17 inches from front to back.
Reference: 167
Brand: Kodicam
Model : KGB-4U-450 Size: 11" H x 23.5" W x 18" D. Weight capacity of 128 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 17 inches from front to back.
Reference: 168
Brand: Kodicam
Model : KGA-18UH-600 Size: 36" H x 23.5" W x 24" D. Weight capacity of 150 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 23 inches from front to back.
Reference: 174
Brand: Kodicam
Model: KGA-15UH-550 Size: 32" H x 24" W x 22" D. Weight capacity of 150 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 21 inches from front to back.
Reference: 2207
Brand: Kodicam
Model: WB-OD-E Size: 26" H x 24" W x 16" D. Weight capacity of 150 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 15 inches from front to back.
Reference: 173
Brand: Kodicam
Model: KGA-12UH-600 Size: 26" H x 24" W x 24" D. Weight capacity of 150 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 23 inches from front to back.
Reference: 176
Brand: Kodicam
Model: KGA-12UH-550 Size: 26" H x 24" W x 22" D. Weight capacity of 150 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 21 inches from front to back.
Reference: 821
Brand: Kodicam
Model: DVR NVR Security 18'' Size: 18" H x 18" W x 5" D. Weight capacity of 18 Kg. Robust welded structure. Rails with screwed cage nut. Total usable space of 5 inches from front to back.
Reference: 2202
Brand: Kodicam
Model: WB-OD-D Size: 32" H x 24" W x 12" D. Weight capacity of 150 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 23 inches from front to back.
Reference: 175
Brand: Kodicam
Model: KGA-6UH-550 Size: 14" H x 24" W x 22" D. Weight capacity of 120 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 21 inches from front to back.
Reference: 2201
Brand: Kodicam
Model: WB-OD-D Size: 24" H x 16" W x 12" D. Weight capacity of 150 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 11 inches from front to back.
Reference: 2200
Brand: Kodicam
Model: WB-OD-D Size: 24" H x 16" W x 10" D. Weight capacity of 150 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 9 inches from front to back.
Reference: 2205
Brand: Kodicam
Model: WB-OD-P Size: 24" H x 16" W x 12" D. Weight capacity of 150 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 11 inches from front to back.
Reference: 2204
Brand: Kodicam
Model: WB-OD-P Size: 20" H x 10" W x 16" D. Weight capacity of 150 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 15 inches from front to back.
Reference: 2203
Brand: Kodicam
Model: WB-OD-P Size: 16" H x 10" W x 12" D. Weight capacity of 150 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 11 inches from front to back.
Reference: 2052
Brand: Kodicam
Model: KGA-18UH-800 Size: 38" H x 24" W x 32" D. Weight capacity of 150 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 28 inches from front to back.
Reference: 2051
Brand: Kodicam
Model: KGA-15UH-800 Size: 32" H x 24" W x 32" D. Weight capacity of 150 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 28 inches from front to back.
Reference: 2050
Brand: Kodicam
Model: KGA-12UH-800 Size: 26" H x 24" W x 32" D. Weight capacity of 150 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 28 inches from front to back.
Reference: 177
Brand: Kodicam
Model: KGA-9UH-550 Size: 20" H x 23.5" W x 22" D. Weight capacity of 120 lbs. Robust welded structure. Rails with screwed cage nut. Total usable space of 21 inches from front to back.
Reference: 8051
Brand: Apagon
Model: AR-RTBANK 2x12x9AH 24V (1000VA) Capacity: 9AH DC: 24 VDC Charging: 2.25A (MAX) Source: 120VAC/60HZ Dimension: 590 x 580 x 200 mm³ Microprocessor-based digital control Wide input voltage range Power-on self test Auto restart when mains power is restored Auto track mains phase to ensure that inverter output voltage has same phase with utility...
Reference: 8011
Brand: Apagon
Model: AR-610RTS (1000VA) Capacity: 1000VA AC INPUT: 90~150/60HzVA AC OUTPUT:120 ± 5%/60Hz Dimension (LxWxH): 616x443x190 (mm) LED display or LCD display selectable Microprocessor-based digital control Wide input voltage range Power-on self test Auto restart when mains power is restored Auto track mains phase to ensure that inverter output voltage has...
Reference: 8018
Brand: Apagon
Model: AR-903IIRT UPS (3000VA/ 2700W) High frequency on-line double conversion technology DSP (Digital signal processors) control technology Active power factor correction (APFC), input power factor up to 0.99 Output power factor 0.9 Wide input voltage range (110 V ~ 300 Vac) and frequency range (40 ~ 70 Hz) Auto sensing frequency 50 / 60Hz frequency...
Reference: 8012
Brand: Apagon
Model: AR-630RTS (3000VA) Capacity: 4x12V/8Ah. AC INPUT: 90~150/60HzVA AC OUTPUT:120 ± 5%/60Hz Dimension (LxWxH): 616x443x190 (mm) LED display or LCD display selectable Microprocessor-based digital control Wide input voltage range Power-on self test Auto restart when mains power is restored Auto track mains phase to ensure that inverter output voltage...
Reference: 8052
Brand: Apagon
Model: AR-RTBANK 3x12x9AH 36V (1000VA) Capacity: 9AH DC: 36 VDC Charging: 2.25A (MAX) Source: 120VAC/60HZ Dimension: 590 x 580 x 200 mm³ Microprocessor-based digital control Wide input voltage range Power-on self test Auto restart when mains power is restored Auto track mains phase to ensure that inverter output voltage has same phase with utility...
Reference: 8050
Brand: Apagon
Model: AR-RTBANK 2x12x7AH 24V (1000VA) Capacity: 2x12Vx7AH DC: 24 VDC Charging: 1.75A (MAX) Source: 120VAC/60HZ Dimension: 590 x 580 x 200 mm³ Microprocessor-based digital control Wide input voltage range Power-on self test Auto restart when mains power is restored Auto track mains phase to ensure that inverter output voltage has same phase with utility...
Reference: 8017
Brand: Apagon
Model: AR-902IIRT UPS (2000VA/1800W) High frequency on-line double conversion technology DSP (Digital signal processors) control technology Active power factor correction (APFC), input power factor up to 0.99 Output power factor 0.9 Wide input voltage range (110 V ~ 300 Vac) and frequency range (40 ~ 70 Hz) Auto sensing frequency 50 / 60Hz frequency...
Model: AR-901IIRT UPS
