Reference: 3811
Brand: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Reference: 3809
Brand: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3808
Brand: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3807
Brand: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3806
Brand: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 8510
Brand: Apagon
Model: Exit-NPT5A Design with no Mechanical Bolt Infrared no touch Button With the Bottom Box, Easy to Install Three Contact Output, Suitable for all kinds of Locks
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2451
Brand: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

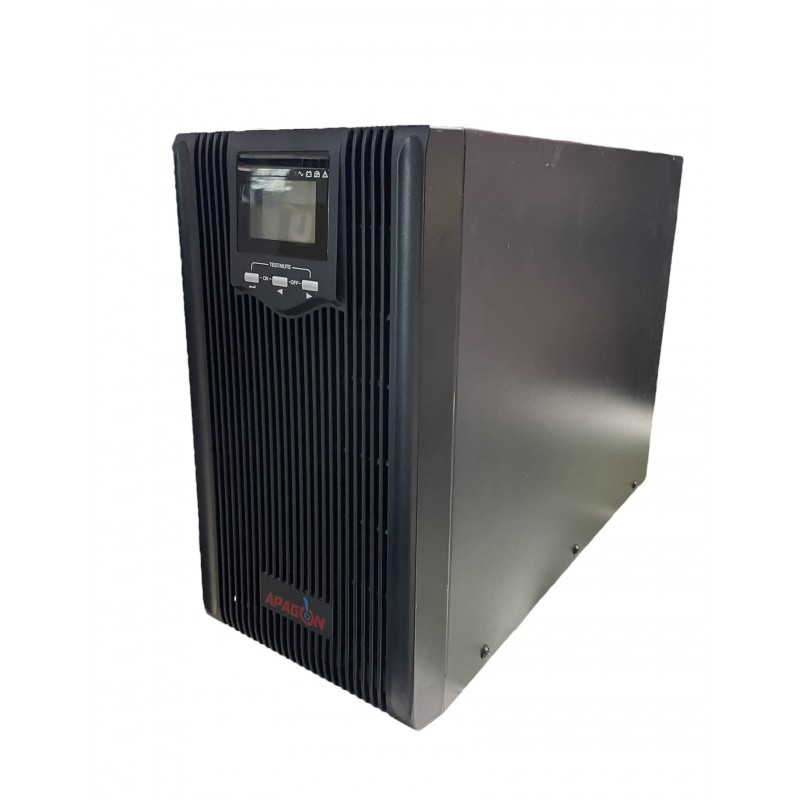

Model: AR-902II
| AR900Pro 1 - 1 kVA | ||||||||||
| MODEL | AR901IIS-1KVA | AR902IIS-2KVA | AR-903IIS-3KVA | |||||||
| Capacity | 1 kVA / 900 W | 2 kVA / 1800 W | 3 kVA / 2700 W | |||||||
| INPUT | ||||||||||
| Rated voltage | 110 Vac | |||||||||
| Voltage range | 110 ~ 120 Vac (linear derating between 50% and 100% load ); 176 ~ 280 Vac (no derating); 280 ~ 300 Vac (derating 50%) | |||||||||
| Frequency | 40 ~ 70 Hz (auto-sensing) | |||||||||
| Power factor | ≥ 0.99 | |||||||||
| Bypass voltage range | - 25% ~ +15% (settable) | |||||||||
| Total harmonic distortion (THDi) |
≤ 6% | |||||||||
| OUTPUT | ||||||||||
| Voltage | 110 Vac | |||||||||
| Voltage regulation | ± 1% | |||||||||
| Frequency | 45 ~ 55 Hz or 55 ~ 65 Hz (synchronized range); 50 / 60 Hz ± 0.1 Hz (battery mode) | |||||||||
| Waveform | Sinusoidal | |||||||||
| Power factor | 0.9 | |||||||||
| Total harmonic distortion (THDv) | ≤ 2% (linear load), ≤ 5% (non-linear load) | |||||||||
| Crest factor | 3:1 | |||||||||
| Overload | 105% ~ 125% for 1 min, 125% ~ 150% for 30 s, > 150% for 300 ms | |||||||||
| BATTERIES | ||||||||||
| DC voltage | 24 V (S) | 36 V (S) | 36 V (H) | 48 V (S) | 72 V (S) | 72 V (H) | 72 V (S) | 96 V (S) | 96 V (H) | |
| Inbuilt battery | 2 × 9 Ah | 3 × 7 Ah | / | 4 × 9 Ah | 6 × 7 Ah | / | 6 × 9 Ah | 8 × 7 Ah | / | |
| Charging current (max.) | 1 A | 6 A | 1 A | 6 A | 1 A | 6 A | ||||
| Recharge time | Standard model: 90% capacity restored in 3 hours; Long time model: depend on the capacity of battery |
|||||||||
| SYSTEM | ||||||||||
| Efficiency | ≥ 90% (Mains mode) |
≥ 91% (Mains mode) | ≥ 92% (Mains mode) |
|||||||
| ≥ 85% (Battery mode) | ≥ 86% (Battery mode) | ≥ 87% (Battery mode) | ||||||||
| ≥ 95% (ECO mode) | ≥ 96% (ECO mode) | ≥ 97% (ECO mode) | ||||||||
| Transfer time | Mains mode to battery mode: 0 ms Inverter mode to bypass mode: 4 ms (typical) |
|||||||||
| Protections | Short-circuit, overload, overtemperature, battery discharge protection and fan testing protection | |||||||||
| Communications | RS232 (standard), USB / RS485 / dry contacts / SNMP (optional) | |||||||||
| Display | LCD + LED | |||||||||
| Standards | EN 62040-1, EN 62040-2, EN 61000-3-2, EN 61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-2-2, IEC 62040-2, IEC 62040-1, IEC 62040-3 | |||||||||
| OTHERS | ||||||||||
| Operating temperature | 0℃ ~ 40℃ | |||||||||
| Storage temperature | -25°C ~ 55°C (without batteries) | |||||||||
| Relative humidity | 0 ~ 95% (non-condensing) | |||||||||
| Altitude | ≤ 1000 m, derating 1% for each additional 100 m | |||||||||
| IP rating | IP 20 | |||||||||
| Noise level at 1m | ≤ 50 dB | |||||||||
|
Dimensions (W × D × H) (mm) |
144 × 312 × 216 | 144 × 317 × 216 | 144 × 336 × 216 | 144 × 417 × 216 | 191 × 419 × 335 | 191 × 418 × 335 | 191 × 419 × 335 | 191 × 418 × 335 |
||
Reference: 8013
Brand: Apagon
Model: AR-903IIS UPS High frequency on-line double conversion technology DSP (Digital signal processors) control technology Active power factor correction (APFC), input power factor up to 0.99 Output power factor 0.9 Wide input voltage range (110 V ~ 300 Vac) and frequency range (40 ~ 70 Hz) Auto sensing frequency 50 / 60 Hz frequency conversion Cold...
Reference: 8005
Brand: APC
Model: SRV3KRARK High operating efficiency in energy-saving ECO mode Product environmental performance
Reference: 8014
Brand: Apagon
Model: AR-906IIS UPS (6000 KVA) High frequency and true double-conversion DSP digital control technology Input power factor correction (PFC) Wide input voltage range Output power factor 1.0 on 6 ~ 6KVA Cold start Auto sensing frequency ECO mode operation for energy saving Selectable output voltage via LC Output bypass settable for 1,2,3KVA via LCD...
Reference: 8033
Brand: Apagon
Model: AR-901IIS UPS High frequency on-line double conversion technology DSP (Digital signal processors) control technology Active power factor correction (APFC), input power factor up to 0.99 Output power factor 0.9 Auto sensing frequency Cold start Rear ventilation design and variable speed fan Effective software and hardware protection
Reference: 8004
Brand: APC
Model: SRV2KA High operating efficiency in energy-saving ECO mode Product environmental performance
Model: AR-902II
