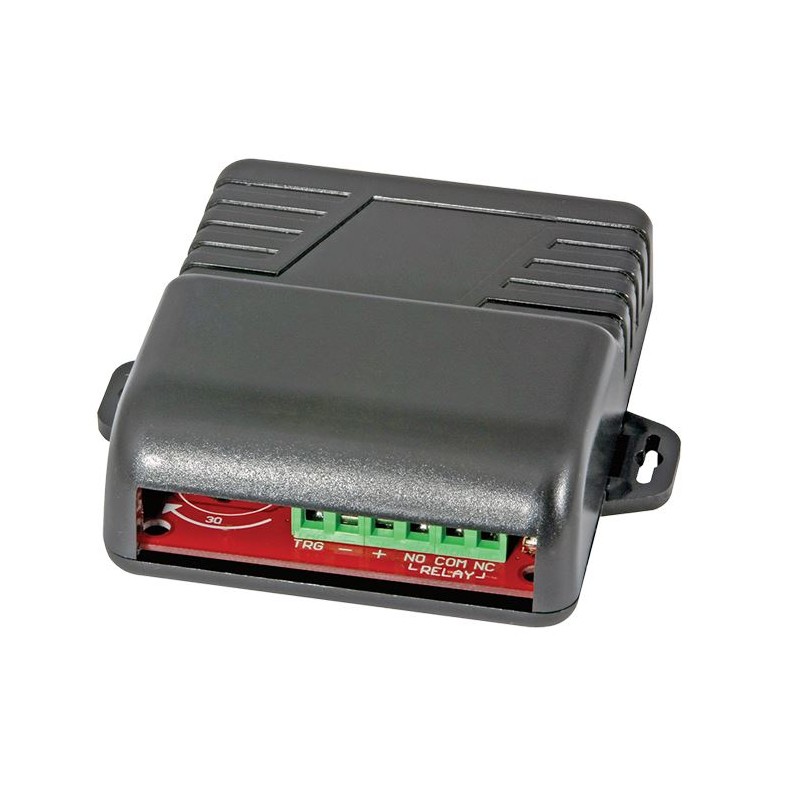

SA-025Q Multi-Purpose Programmable Timer with Protective Case

Model: SA-025Q

• Timer can be set from 1 second to 60 minutes
• Dimensions: 3-1/4”x2-11/16”x1-1/16” (83x68x27.5 mm)

• Can be triggered by positive voltage (+DC), or closure or opening of dry contact

• Relay can be programmed to activate at the start or at the end of the timing cycle

• Relay can also be set to activate for one second at the end of the timing cycle

• Programmable for pulse (flash) activation

• Built-in reset function to manually reset timing cycle

• Form C relay, contacts rated 8A@120VAC/24VDC

• LED indicates relay is energized

• 12VDC/24VDC Operation (auto sensing)

• Current: 1mA (standby), 50mA (active)

• Board measures 27/8” x 21/2” (73×63 mm)

• Functions programmed via DIP switches – no jumpers to cut
