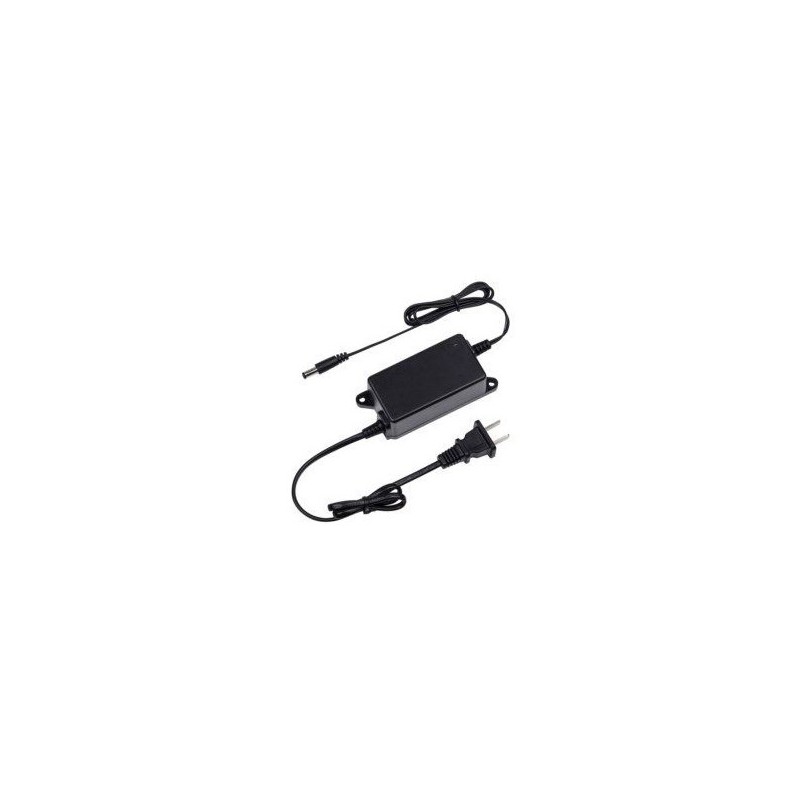

PFM321D 12V 1A Power Adapter

Electrical Specification

Input

100–240 V, 50/60 Hz, 0.5 A

Output

12 V (+7%, –3%) 1 A (±2%)

Protection/Environmental

Protection

Surge protection, over temperature protection,

over current, voltage load protection

ESD: EN61000-4-2

+/-4 kV Contact; +/-8 kV Air

Surge: EN61000-4-5"

Combination Wave: Common Mode ±4 KV (12 ohms);

Differential Mode ±2 kV (2 ohms)

Working Temperature

–30 °C to +70 °C(–22 °F to +158 °F)

Working Humidity

< 95% (RH)

Physical Properties

Weight

150 g (0.33 lb)

Dimension(Lxwxh)

84 mm × 41 mm × 26 mm (3.31" × 1.61" × 1.02")

Installation Mode

Plane installation

Color

Black

Input Plug

2-pin Euro

plug

3-pin British plug

2-pin North American plug

Outgoing Cord

AC wire: 50 cm (19.69"), DC wire: 80 cm (31.5")

DC Plug

Φ5.5 mm × Φ2.1 mm × 12 mm (Φ0.22" × Φ0.08" × 0.47")

Certifications

Certification

PFM321D-EN/PFM321D-BS:

CE LVD(EN62368-1:2014+A11:2017)

CE EMC(EN55032:2015,EN61000-3-2:2014,EN61000-3-3:2013,EN55035:2017)

PFM321D-US:

UL-VI(UL60950-1)

FCC(FCC Part 15 Subpart B)

DOE(VI)

CEC(VI)
