Reference: 5981
Brand: Apagon
Model: 5M-16AWG MULTI-CONTACT ELECTRICAL EXTENSION 3-OUTPUT STRIP TYPE 5MTS LONG HARD CABLE, HIGH RESISTANCE AND DURABILITY RESISTS FOR OUTDOORS
Reference: 3811
Brand: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Reference: 3809
Brand: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3808
Brand: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3807
Brand: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3806
Brand: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2451
Brand: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

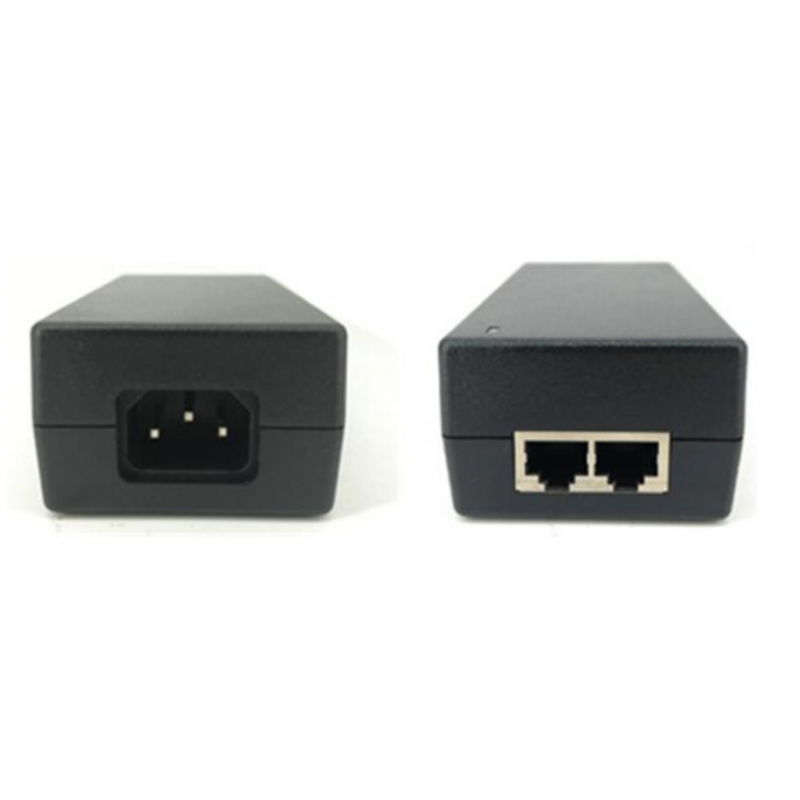

Model: PSE5212U
Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, 802.3X, 802.3z.
Comply to POE IEEE 802.3af/at standard, all ports standard testing.
2*10/100/1000 Mbps RJ45
Upstream port lightning protection.
MAX power 65W.
Power transmission distance-100M
OUTPUT 52V 1.25A
| Model | PSE5212U |
| Power supply pin | 12+/45+ 36-/78- |
| OUTPUT | 52V 1.25A |
| Power | 65W |
| POE standard | No- standard Direct Supply |
| Data pin | 12364578 |
| Input | AC 100-240V 50/60HZ |
| Port | 2* 10/100/1000 Mbps RJ45 |
| Features | Plug and play, no configuration management functions Power supply has input overvoltage, output overvoltage, output overcurrent short circuit protection and other functions. System reliability: MTBF> 100k hours. Conducted Interference (CE) and Radiated Interference (RE), in accordance with EN55022, CLASS B. |
| Environmental | Working Temperature: 0ºC~40ºC Storage temperature : -40ºC~70ºC |
| Working Humidity : 10%~90% RH non-condensing Storage Humidity: 5%~90% RH non-condensing |
|
| Speed | Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex Gigabit Ethernet 2000Mbps full-duplex |
| Network Media | 10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m) 100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m) 1000Base-T: Pair 4 Category 5(Cat6) and above UTP/STP(≤150m) |
| Size | 123mm*60mm*40mm(L*W*H) |
| Weight | 0.2Kg(including AC power cord 0.3kg) |
Reference: 4016
Brand: TP-Link
Model: TL-POE160S 2 Gigabit ports ensure faster transmission Complies with IEEE802.3af/at standards, supplies up to 30 W Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable Automatically determines and supplies the exact power to meet the device's need Wall-mounting and desktop design accommodates most...
Reference: 4018
Brand: TP-Link
Model: TL-POE2412G Gigabit Ethernet ports 24VDC passive PoE supported Auto-adjusted power depends on requirements Convenient wall-mounting design Plug-and-Play, no configuration required Item Dimensions LxWxH: 3.38 x 1.73 x 1.26 inches
Reference: 4019
Brand: TP-Link
Model: TL-POE4824G Gigabit network ports 48VDC passive PoE injector Auto-detect and auto-supply the necessary power required Plug-and-Play, requires no configuration Connectivity Technology: Ethernet Item Dimensions LxWxH: 4.33 x 2.24 x 1.41 inches
Reference: 4111
Brand: Tenda
Model: PoE30G-AT PoE ports supports IEEE802.3at and IEEE802.3af standard Equipped with gigabit port, blazing-fast tranfer rate, maximum transfer rate of up to 30W for single port power distance extension of up to 100 meters for standard cat. 5e and cat. 6 Ethernet cable Plug and play, no any configuration required
Reference: 5505
Brand: Kodicam
Model: 127-7310b Short Circuit, Over Current and Over Voltage Protection.The product is widely used for WLAN, routers, switches, internet telephony etc. Input: DC 24V Output: DC 12V 2A Transmission Distance: 100 Meters / 328ft DC Connector Type: 5.5mm x 2.1mm Ethernet Cable Connector: RJ-45 Injector: RJ45 Male + Power In to RJ45 Female...
Reference: 181
Brand: Kodicam
Model: 127-1045-WH Product Name: POE Injector / Splitter Data PIN: 1/2,3/6 Power PIN: 4/5+ & 7/8- Data in: Connects PC/HUB/Switch Dimensions: 50mm*27mm*24mm(L*W*H) Case of material: ABS 94V-0 Ethernet Data rate: 10/100 Mbp Ethernet Cable: TIA/EIA 568 Cat.5 Ethernet Cable Connector: RJ-45 Operating Temperature:0- 40...
Reference: 4015
Brand: TP-Link
Model: TL-POE150S Auto-detects the required power supply; Plug and Play, no configuration required; Expands network to areas with no power lines or outlets Interface: 2 10/100/1000Mbps RJ45 Port; AUTO Negotiation/AUTO MDI/MDIX; 1 48VDC POWER INPUT PORT Basic Function: Compatible with IEEE 802.3af Compliant PDs; Delivers Power Up To 100 Meters;...
Reference: 1645
Brand: Ubiquiti
Model: POE-24-12W Dimensions: (3.43 x 1.73 x 1.14") Output Voltage: 24VDC @ 0.5A LAN Activity Indicator: No Gigabit LAN Port: No Remote Reset Capability: Yes Reset Button: Yes Rated Voltage : 100-240VAC @ 50/60Hz Certifications: CE, FCC, IC, UL NDAA Compliant: Yes
Reference: 1641
Brand: Ubiquiti
Model: POE-48-24W-G Dimensions: (3.62 x 2.36 x 1.30") Weight: 158.5 g Output Voltage: 48VDC @ 0.5A LAN Activity Indicator: No Gigabit LAN Port: Yes Remote Reset Capability: No Reset Button: No Rated Voltage: 100-240VAC @ 50/60Hz Input Current: 0.6A @ 120VAC, 0.4A @ 240VAC Inrush Current: <65A Peak @ 120VAC, <130A Peak @ 230VAC...
Reference: 5504
Brand: Kodicam
Model: POE100M Passive PoE Cable PoE Splitter x1 PoE Injector x1 100 Metres (pair) Voltage: Input=24VDC Output=12VDC 1A-2A
Reference: 4017
Brand: TP-Link
Model: TL-POE170S 2 Gigabit ports ensure faster transmission Complies with IEEE802.3af/at/bt* standards, supplies up to 60 W Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable Automatically determines and supplies the exact power to meet the device's need Wall-mounting and desktop design accommodates most...
Reference: 4014
Brand: TP-Link
Model: TL-POE10R Gigabit Ethernet ports; Plug-and-Play - Require no configuration Interface: 2 10/100/1000Mbps RJ45 Port; AUTO Negotiation/AUTO MDI/MDIX; 1 POWER OUTPUT PORT Network Media: 10BASE-T: UTP category 3, 4, 5 cable (Max 100m); EIA/TIA-568 100Ω STP (Max 100m); 100BASE-TX: UTP category 5, 5e cable (Max 100m); EIA/TIA-568 100Ω STP (Max 100m);...
Reference: 1637
Brand: Ubiquiti
Model: POE-24-24W(US) 1 x Gigabit LAN/1 x PoE Port Remote Reset Capability Reset Button Power Indicator Power Supply: AC/DC Input: 100-240V 50/60Hz MAX 0.75A Output: 24.0V-1A 24.0W Dimensions: 3.5 x 2.2 x 1.3" / 8.8 x 5.7 x 3.3 cm Weight: 5.59 oz / 158.47 g
Reference: 1644
Brand: Ubiquiti
Model: INS-8023af-O Dimensions: 315 x 25.8 x 24.8 mm Weight : 300 g Power Input: 48V, PoE (with Sensing Capability) Power Output: 18V, 0.7A Output PoE Method: Positive 4, 5; Return 7, 8 Ethernet ESD/Surge Protection: ±15kV Output Ethernet Cable: Shielded CAT5, Length: 10 cm Operating Temperature: -30 to 70° C (-22 to 158° F)
Reference: 1640
Brand: Ubiquiti
Model: U-POE-af Dimensions: (3.39 x 1.81 x 1.30") Weight: 100 g Output voltage: 48V DC @ 0.32A LAN activity indicator: No Gigabit LAN port: Yes Remote reset capability: No Reset Button: No Rated voltage: 100—240V AC @ 50/60Hz Input current: 500mA @ 90V AC Inrush current: <100A Peak at 25°C Efficiency: 84.25+% Output ripple:...
Reference: 1639
Brand: Ubiquiti
Model: U-POE-at-US Dimensions: (3.66 x 2.44 x 1.38") Output voltage: 48V DC @ 0.65A Gigabit LAN port: Yes Rated voltage: 100—240V AC @ 50/60Hz Input current: 0.75A Max. Inrush current: <100A peak at 26_ Efficiency: 87% Output ripple: 1% max. Switching frequency: 70 kHz max. Line regulation: ≤ 3% Load regulation: ≤ 5% 2-pair powering: Pins 4, 5 (+) and...
Model: PSE5212U
Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, 802.3X, 802.3z.
Comply to POE IEEE 802.3af/at standard, all ports standard testing.
2*10/100/1000 Mbps RJ45
Upstream port lightning protection.
MAX power 65W.
Power transmission distance-100M
OUTPUT 52V 1.25A
