Reference: 5981
Brand: Apagon
Model: 5M-16AWG MULTI-CONTACT ELECTRICAL EXTENSION 3-OUTPUT STRIP TYPE 5MTS LONG HARD CABLE, HIGH RESISTANCE AND DURABILITY RESISTS FOR OUTDOORS
Reference: 3811
Brand: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Reference: 3809
Brand: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3808
Brand: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3807
Brand: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3806
Brand: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2451
Brand: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

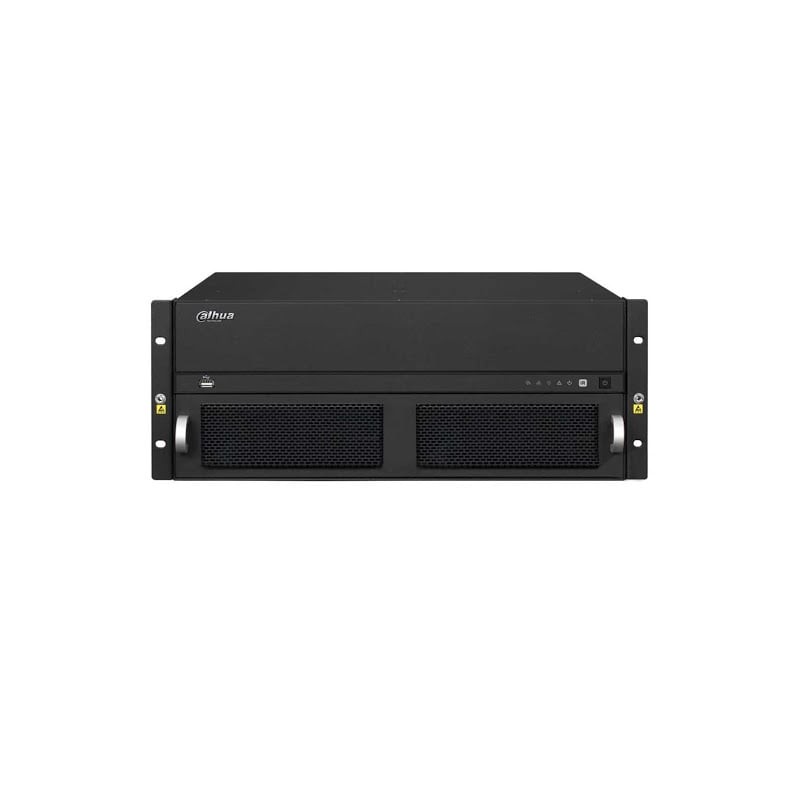

Model: M70-4U-E
|
Model |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
M70-4U-E |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System Parameter |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Quad-core embedded microprocessor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating System |
Embedded LINUX |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Bus |
PCI-E |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Slot |
12(2 Main Control Board Slot, 10 Video and Audio Function Board) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mainframe |
Power module (redundant power optional), main control board, control board, PCI-E bus rear panel, smart temperature controlled fan |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Input Card |
Max. 10 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Output Card |
Max. 10 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Input |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VIC0201UH-M70 (HDMI) |
Interface |
2ch HDMI1.4 support HDCP |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Access Capability |
2ch@4K, downward compatibility |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VEC0404HH-M70 (HDMI) |
Interface |
4ch HDMI |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Encoding Format |
H.264/MPEG4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Encoding Capability |
4CH@1080P, support resolution: 1080P/720P/UXGA/SXGA+/SXGA/XGA/SVGA/VGA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VEC0404HD-M70 (DVI) |
Interface |
4ch DVI-I (HDMI & VGA with convertor) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Encoding Format |
H.264/MPEG4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Encoding Capability |
4CH@1080P, support resolution: 1080P/720P/UXGA/SXGA+/SXGA/XGA/SVGA/VGA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Output |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VDC0605H-M70(HDMI) |
Decoding Capability |
2CH@32MP(25fps)/8CH@12MP(15fps)/8CH@4K(25fps)/32CH@1080P/72CH@720P/128CH@D1 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interface |
6ch HDMI (Interfaces 2/3/5/6 support 4K resolution, others support 1080P) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Output Resolution |
4096*2160@24fps, 3840*2160@30fps, 1920*1080@60fps, 1280*1024@60fps, 1280*720@60fps, 1024*768@60fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Split |
1/4/6/8/9/16/25/36, free split |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video-Wall |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Decoding Card Video-Wall Splicing |
Splicing |
Support video-wall splicing (max 60 LCD display units) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video-Wall |
Support Splicing/Zoom/Merge/Roam/Overlay |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Input |
HDMI/DVI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Output |
HDMI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Output |
HDMI (embedded) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Control Mode |
WEB/Local GUI/Video Platform/Network Keyboard/iPad |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interface |
6 RJ-45 ports (10/100/1000M), 2 in mainboard and 4 in control board |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Serial Port |
4 RS232 ports (4 RJ45), for console and control 1 RS485 port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
USB |
3 USB2.0, 1 USB3.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environmental |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
100~240V AC, 50/60Hz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤600W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Environment |
-10°C ~+50°C / 10~90%RH / 86~106kpa |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimension |
4U, 482.6 × 437.0 ×177.0mm(19.0 × 17.2 × 7.0 inch), (W*D*H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Weight |
≤25Kg (full configured) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reference: 1184
Brand: Dahua
Model: ST8000VX0002 Seagate SkyHawk 8TB Surveillance Hard Drive - SATA 6Gb/s 256MB Cache 3.5-Inch Internal Drive
Reference: 1182
Brand: Dahua
Model: ST4000VX000 Seagate SV35 Series Surveillance HDD, 4TB - Hard Drive (4TB SV35 Series, Serial ATA III, 4000 GB, 8.89 cm (3.5"), 8W, 0.75W, 5.4W)
Reference: 393
Brand: Dahua
Model: ST2000VX003 Seagate Skyhawk 2TB Surveillance Hard SATA 6Gb/s 64MB Cache 3.5" Internal Drive-Frustration Free Packaging
Reference: 395
Brand: Dahua
Model: ST1000VX001 Seagate Skyhawk 1TB Surveillance Hard SATA 6Gb/s 64MB Cache 3.5" Internal Drive-Frustration Free Packaging
Reference: 437
Brand: Dahua
Model: D-VDC0404H-M70 Branded HDMI graphics card 6 HDMI channels Screen divisions: 1/4/6/8/9/16/25/36 Resolution 12MP@15fps / 4K@30fps / 2MP, 1,3MP, 1MP, 720p@60fps Decoding capacity 2CH@32MP, 8CH@12MP, 8CH@4K, 32CH@1080p, 72CH@720p Compatible with M70-4U-E
Reference: 2415
Brand: Uniview
Model: VMS-B180-A Connect and manage 250 devices, 500 video channels. Unified management of IPC, NVR, decoder, network keyboard, alarm controller, access controller, cloud devices. 512Mbps input bandwidth, 384Mbps output bandwidth. Support standard Onvif and RTSP. Live view, playback, sequence, video wall, GIS map, two-way audio, alarm-triggered actions,...
Reference: 1048
Brand: Dahua
Model: ESS1504C ESS1504C: 1.5U standard 19-inch rack case Connect main device via eSATA or USB eSATA port transmission speed up to 3Gbps USB 3.0 port data transmission higher than normal Powerful R / W performance: read >64MB/s, write >64MB/s ESS1504C: Max support Internal 4 SATA HDD up to 24TB Recommended with DVR, NVR connection.
Reference: 2416
Brand: Uniview
Model: Unicorn Third-part IP Cameras supported with standard ONVIF Support for mobile clients (iOS & Android) access Up to 1000 device/2000 channels connections Unified management of NVR, IPC, decoder, network keyboard and cloud devices 16 SATA HDDs，Up to 14TB each HDD 16×1080P decoding outputs in 3 screens Support for live view, playback, sequence,...
Model: M70-4U-E
