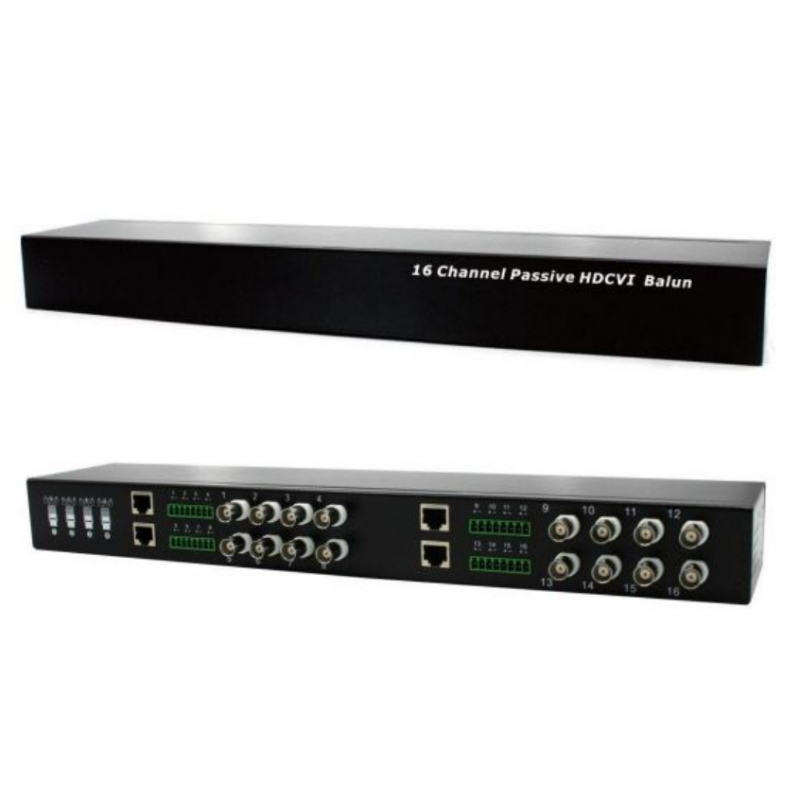

PFM809-4MP 16 Channel Passive HDCVI Balun

638

Model: PFM809-4MP

  • Power supply: No need additional power supply.
  • Transmission effect: Real-time transmission HDCVI/AHD/TVI/CVBS video signal without compression, video is clear and stable.
  • Transmission distance: 0~400m (with passive transmitter).
  • Main functions: Use 4 wires meanwhile to transmit 16-ch video signal.
  • Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities.
  • Appearance structure: BNC coaxial interface, the green has screw terminal and crystal head twisted-pair cable interface.

$87.75
Tax excluded
Quantity
20

Description
Model PFM809-4MP
Properties
Transmission Signal 16 channel
Transmission Distance HDCVI:
720P: max.400m(1312.34ft);
1080P: max. 250m(820.21ft);
4MP: max. 200m(656.17ft)
Category Type UTP CAT5E/6
Video Transmission Properties And Port
Coaxial Video Connector BNC
Connection Way Spring loaded
Compatible Format HDCVI/AHD/TVI/CVBS
Resolution 720P/1080P/4MP
Anti-interference ＞60db
Protection
ESD 1a contact discharge electricity level 3
1b air discharge electricity level 3
Per: IEC61000-4-2
Coaxial Cable Connector 2KV(common-code)
Per: IEC61000-4-5
UTP Cable Connector 2KV(different-code), 4KV(common-code)
Per: IEC61000-4-5
Impedance
BNC Male 75 ohms
UTP Cable 100 ohms
Physical Properties
Dimension(L*W*H) 430mm*100mm*44.5mm(1U)
(16.93”x3.94”x1.75”)
Shell SECC
Color Black
N.W. 1.25kg(2.76lb)
Stability
MTBF >10000H
Environmental
Operating Temperature -10℃~+55℃(14℉~131℉)
Storage Temperature -20℃~+70℃(-4℉~158℉)
Humidity 0~95%(non-condensing)
Certification
Certification CE, FCC
Product Details
638
