Reference: 5981
Brand: Apagon
Model: 5M-16AWG MULTI-CONTACT ELECTRICAL EXTENSION 3-OUTPUT STRIP TYPE 5MTS LONG HARD CABLE, HIGH RESISTANCE AND DURABILITY RESISTS FOR OUTDOORS
Reference: 3811
Brand: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Reference: 3809
Brand: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3808
Brand: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3807
Brand: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3806
Brand: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2451
Brand: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

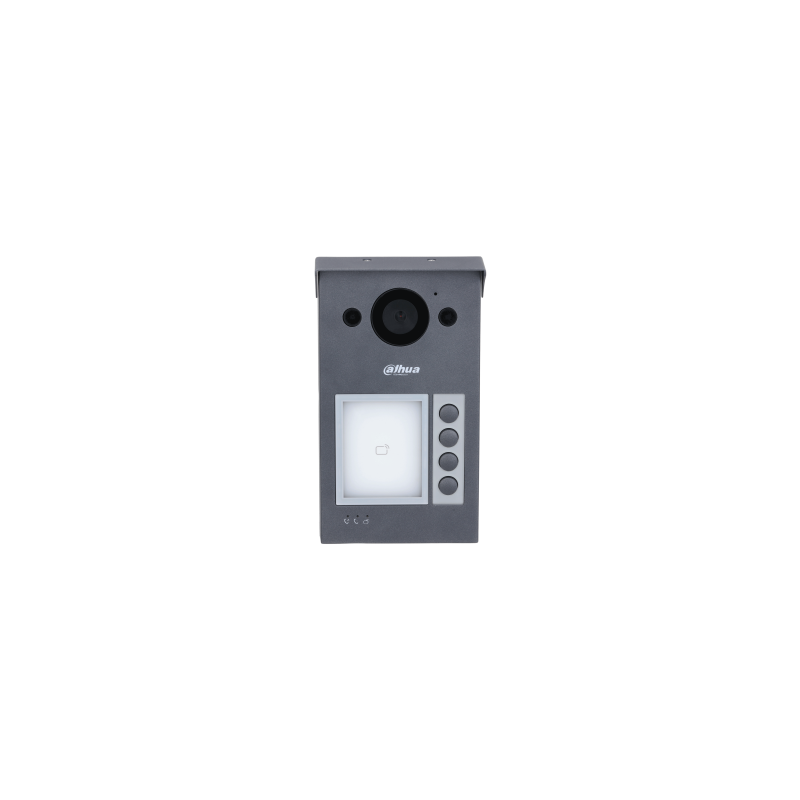

Model: VTO3311Q-WP
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded Processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button Type |
Mechanical |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF; CGI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Protocol |
RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Camera |
1/2.8" CMOS 2-MP HD camera |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Field of View |
H: 125°; V: 65°; D: 139° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WDR |
120 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Noise Reduction |
3D NR; 2D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Compression |
H.264; H.265 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Resolution |
Main stream: 720p, WVGA, D1, and CIF; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Frame Rate |
PAL: 25 fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Bit Rate |
768 kbps–8 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Light Compensation |
Auto IR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Day/Night |
Auto (ICR)/Color/B/W; Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Compression |
G.711a; G.711u; PCM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Input |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Output |
Built-in speaker |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Mode |
Two-way audio |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Enhancement |
Echo suppression/digital noise reduction; Echo suppression; Digital noise reduction |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Bit Rate |
16 kHz, 16 bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Mode |
Full digital |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Unlock Mode |
Card; app; indoor monitor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Type |
IC card |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Auto Snapshot |
Yes (SD card is inserted in the indoor monitor or door station) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Leave Videos |
Yes (SD card inserted in VTH/VTO is needed) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Web Configuration |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wi-Fi |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wireless Standard |
IEEE 802.11b; IEEE 802.11g; IEEE 802.11n |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wireless Frequency Range |
2.4 GHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
Micro SD card (max. 256 GB) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Reading Distance |
0 cm–3.5 cm (0"–1.38") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Issue Card Locally |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing |
Alluminum alloy |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RS-485 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Input |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Output |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Output |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Exit Button |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Door Status Detection |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lock Control |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Port |
1 × RJ-45 10/100 Mbps Ethernet port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Tamper Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance color |
Grey |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 VDC, 1 A; Standard PoE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Adapter |
Optional |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Surface Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE; FCC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Accessory |
Included: Alarm power ribbon cable, rain cover |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
188.1 mm × 107.2 mm × 30 mm (7.41" × 4.22" × 1.18") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP65 IK08 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Altitude |
0 m–3,000 m (0 ft–9,842.51 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤ 3 W (standby), ≤ 6 W (working) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.81 kg (1.79 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.55 kg (1.21 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reference: 4720
Brand: Hikvision
Model: DS-KV6113-WPE1(C) 2 MP camera with IR supplement One-touch button calling design for easier calls Built-in card reader module Standard PoE power supply IP65 protection level Convenient Hik-Connect APP Mobile Control
Reference: 4701
Brand: Hikvision
Model: DS-KH6320-WTE1 7-inch TFT touch screen with 1024 × 600 resolution Convenient Hik-Connect APP Mobile Control Receive calls, open the door and live view remotely Easy to use without PC Easy wizard for quick set up Configure the whole system on one touch screen Live view of the door station and cameras in public areas Support voice...
Reference: 4356
Brand: Fanvil
Model: FAN-i10SV IP54 waterproof and dustproof casing (indoor deployment) High quality reliable audio communication 1 speed dial button -20 °C to 50 °C wide range temperature adaptability Compatible with engineering 86 box size, easy installation and configuration Built-in 1W speaker and Acoustic Echo Canceller (AEC) Built-in 1short circuit input/output...
Reference: 3250
Brand: Dahua
Model: VTK-VTO2000A HD CMOS camera 7-inch capacitive touch screen, resolution 800×480 IPC surveillance Alarm integration 2-Door control Remote intercom with mobile APP
Reference: 3230
Brand: Dahua
Model: VTO2311R-WP Ultra slim design. PC and ABS material make it ideal for indoor and outdoor use. 1/2.8" 2-MP HD CMOS camera. Offers two–way video call with indoor monitors. Video and voice messages from visitors can be checked on the indoor monitor Video call and unlocking through app. IR illumination and auto WDR. Wi-Fi connection. IP65 rated. H.264...
Reference: 6407
Brand: Uniview
Model: OEU-301S-HMKA Delivered with a recess box for recess mount. Built-in heating module supports operation at a very low temperature. Metal casing. Supports batch configuration. Supports call and intercom with the connected indoor stations and apps. Supports video monitoring, security alarm, and tamper alarm. Built-in IC card reader.
Reference: 3254
Brand: Dahua
Model: VTK-VTO6210B HD CMOS camera 7-inch capacitive touch screen, resolution 800×480 IPC surveillance Alarm integration 2-Door control Remote intercom with mobile APP
Reference: 3252
Brand: Dahua
Model: VTO2202F-P 2MP CMOS camera Mechanical button Night vision & voice indicator PoE 160° angle of view Compatible with VTH5222CH-S1 and VTNS1006A-2 Group call Power supply by 2-wire Aluminium alloy plate IK07, IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start...
Reference: 4376
Brand: Fanvil
Model: FAN-i506W 10.1-inch(1280 x 800) capacitive touch screen Support 2.4G/5G Wi-Fi Support Fanvil KT 1x/2x/3x Series wireless buttons (to be ordered separately) Support video code 1080p@30fps Check real-time video of third-party IP cameras and door phone to ensure security Built-in 2W speaker and AEC to achieve high-quality hands-free call...
Reference: 3208
Brand: Dahua
Model: VTH5221D/DW-S2 7" TFT Capacitive touch screen, 1024x600 IPC surveillance 6ch wired alarm integration, 6ch wireless alarm integration(433MHZ) Micro SD card optional, max 32GB Record & Snapshot (SD card needed)
Reference: 4722
Brand: Hikvision
Model: DS-KV8413-WME1(C) 2 MP camera with IR supplement Four nametag buttons calling design for easier calls Built-in card reader module Standard PoE power supply IK08 & IP65 higher protection level with aluminum alloy material Convenient Hik-Connect APP mobile control
Reference: 3231
Brand: Dahua
Model: VTO2201F-P Anodized alumimum front panel. CMOS low illumination 2MP HD colorful 140° camera. Video intercom function. Access control function that supports two locks. Mobile phone app, talk to the visitor or unlock the door remotely on your phone. IK07& IP65. Support H.265. Support surface and flush mount. PoE.
Reference: 4353
Brand: Fanvil
Model: FAN-i16SV Built-in HD camera with infrared night vision, adopt H.264 codec IP65 waterproof and dustproof. IK10 anti-collision with robust die-cast aluminum frame Anti-tamper- alarming as long as the cover is apart from the housing, and reporting to the control center at the same time HD voice speech quality with built-in 3W speaker and Acoustic...
Reference: 6406
Brand: Uniview
Model: OEU-202S-HMK4 Optional recess box for recess mount. Supports power output, which can be enabled or disabled on the Web interface. Built-in heating module supports operation at a very low temperature. Metal casing. Supports batch configuration. Supports call and intercom with the connected indoor stations and apps. Supports video monitoring,...
Reference: 3258
Brand: Dahua
Model: VTO2211G-WP Thin lightweight design –30 °C to + 60 °C (–22 °F to +140 °F) operating temperature IP65 (Silicone sealant is need. For details, see the quick start guide.) IR illumination and night vision Card unlocks, app unlock, and indoor monitor unlock Two-way audio and voice call through app Card capacity: 10,000 Tamper alarm Standard PoE...
Reference: 4702
Brand: Hikvision
Model: DS-KH6350-WTE1 7-inch TFT touch screen with 1024 × 600 resolution Convenient Hik-Connect APP Mobile Control Receive calls, open the door and live view remotely Easy to use without PC Easy wizard for quick set up Configure the whole system on one touch screen Live view of the door station and cameras in public areas Support voice...
Model: VTO3311Q-WP
