Reference: 5981
Brand: Apagon
Model: 5M-16AWG MULTI-CONTACT ELECTRICAL EXTENSION 3-OUTPUT STRIP TYPE 5MTS LONG HARD CABLE, HIGH RESISTANCE AND DURABILITY RESISTS FOR OUTDOORS
Reference: 3811
Brand: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Reference: 3809
Brand: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3808
Brand: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3807
Brand: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3806
Brand: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2451
Brand: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

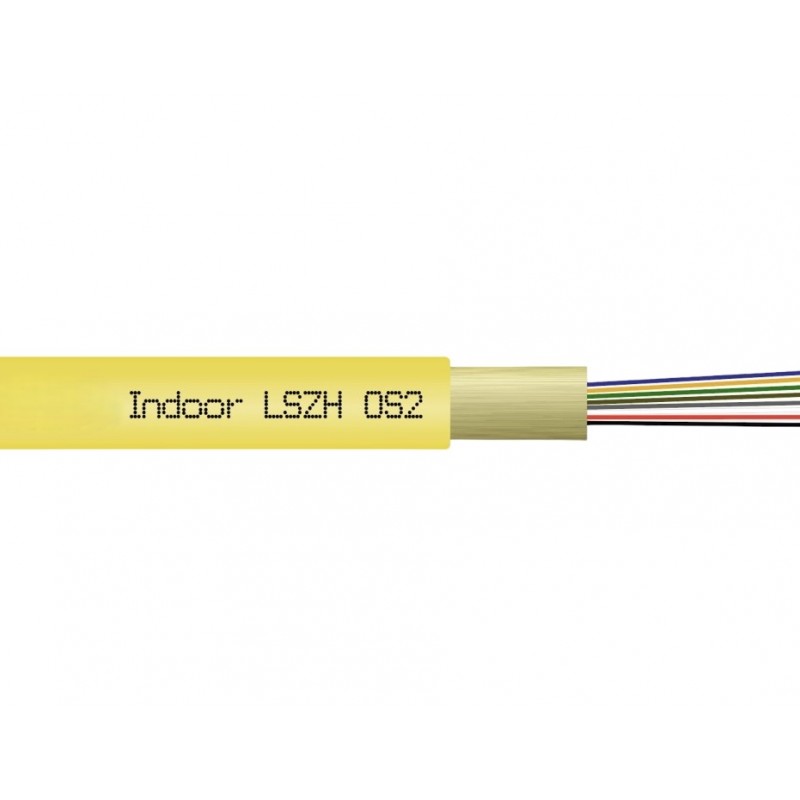

Model: G.652.D-06-Singelmode
| Construction | |
|---|---|
| Jacket & Buffers | |
| Jacket Material (IEC60332-3C) |
LSZH |
| Cable Reinforcement |
Aramid Yarn |
| Tight Buffer Diameter |
900μm ± 50μm |
| Primary Buffer Diameter |
250μm ± 5μm |
| Fiber Size |
9/125 μm |
| Technical Data-Mechanical | |
| Max. Loading (IEC794-1) | |
| Installation Tensile Strength |
660N |
| Operation Tensile Strength |
200N |
| Crush Resistance |
1000N/100mm |
| Min. Bend Radius (IEC794-1) | |
| Installation |
20 x Diameter |
| Operation |
10x Diameter |
| Temperature Rating Operation | |
| Installation |
-20℃ ~ +60℃ |
| Operation |
-20℃ ~ +60℃ |
| Technical Data-Physical | ||||||
|---|---|---|---|---|---|---|
|
Fiber Count |
2 |
4 |
6 |
8 |
12 |
24 |
|
Cable Diameter (mm) |
4.0±0.2 |
4.8±0.25 |
5.1±0.25 |
5.6±0.25 |
6.2±0.25 |
8.1±0.3 |
|
Cable Weight (kg/km) |
Approx. 14kg |
Approx. 20kg |
Approx. 23kg |
Approx. 30.8kg |
Approx. 37kg |
Approx. 59.9kg |
| Technical Data-Transmission | ||||||||
|---|---|---|---|---|---|---|---|---|
| Fiber Type | Attenuation | OFL Bandwidth | Effective Modal Bandwidth | 10 Gigabit Ethernet SX | Min. Bend Radius | |||
| Conditions | 1310/1500nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |||
| Typical | Maximum | Typical | Maximum | |||||
| Unit | dB/km | dB/km | dB/km | dB/km | Mhz/Km | Mhz/Km | m | mm |
| G652D | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 16 |
| G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
| 50/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥500/500 | --- | --- | 30 |
| 62.5/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥200/500 | --- | --- | 30 |
| OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
| BI-OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 7.5 |
| BI-OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 7.5 |
Data sheet
Reference: 10250
Brand: Kodicam
Model: FC2379L-06-R5 Indoor OM3 6 Core Tight Buffered Fiber LSZH 500m Optical Fiber Cable GJFJH type Aqua 50/125um Multimode Aramid yarn OD: 4.5mm packed in 500m
Reference: 10251
Brand: Kodicam
Model: FC2389-06-R5 Indoor/ Outdoor OM3-150 6 Core Fiber Cable PE jacket 500m, Optical Fiber Cable GYFXTY type Aqua, 50/125um Multimode, Aramid yarn, OD: 5.0mm, packed in 500m/ reel 1,640 FT
Reference: 10252
Brand: Kodicam
Model: FC2389-06-R5 Outdoor OM3-150 6 Core Fiber Cable PE jacket 500m Optical Fiber Cable GYFTY 6A1a type Aqua 50/125um Multimode Construction 1+6 E-glass water-blocking yarn, MAT2000N OD: 10mm packed in 500m/ reel 1,640 FT
Reference: 10255
Brand: Kodicam
Model: FC2399-12-R5 Outdoor OM3-150 12 Core Fiber Cable PE jacket 500m Optical Fiber Cable GYFTY 6A1a type Aqua 50/125um Multimode Construction 1+6 E-glass water-blocking yarn, MAT2000N OD: 10mm packed in 500m/ reel 1,640 FT
Reference: 10253
Brand: Kodicam
Model: FC2379L-12-R5 Indoor OM3 12 Core Tight Buffered Fiber LSZH 500m Optical Fiber Cable GJFJH type Aqua 50/125um Multimode Aramid yarn OD: 4.5mm packed in 500m
Reference: 10276
Brand: Kodicam
Model: GYXTW-6 B1.3 Singlemode Excellent mechanical and temperature performance guaranteed by the accurate excess fiber length. Critical protection to fibers, based on the excellent hydrolysis resistance. Excellent crush resistance and flexibility. PSP enhances the cable crush-resistance, impact-resistance and moisture-proof. Two parallel steel wires...
Reference: 10254
Brand: Kodicam
Model: FC2389-12-R5 Indoor/ Outdoor OM3-150 12 Core Fiber Cable PE jacket 500m, Optical Fiber Cable GYFXTY type Aqua, 50/125um Multimode, Aramid yarn, OD: 5.0mm, packed in 500m/ reel 1,640 FT
Model: G.652.D-06-Singelmode
