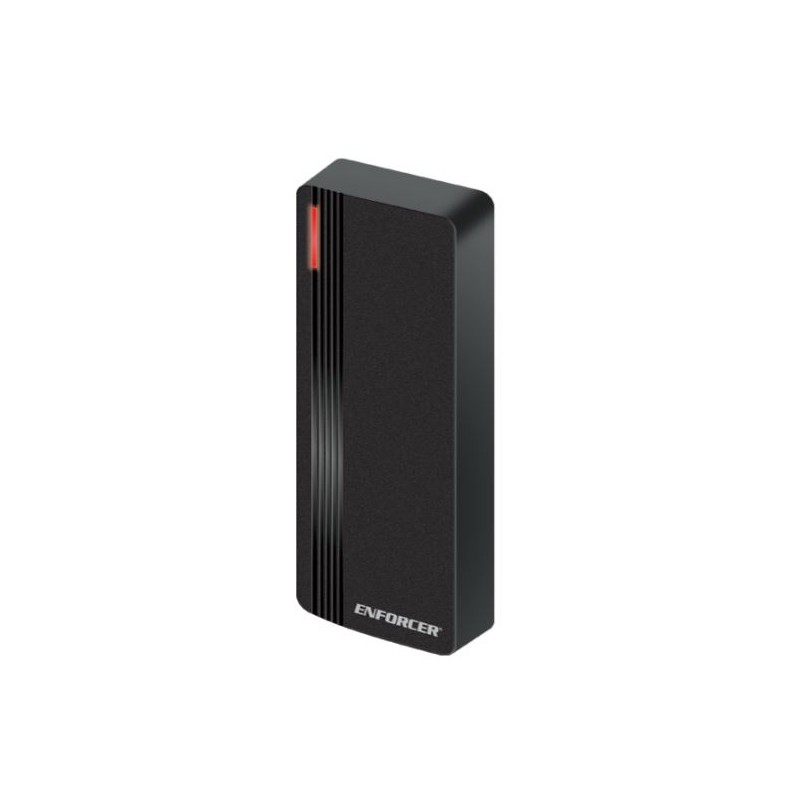

PR-3123-PQ Stand-Alone Mullion Proximity Reader with Wiegand

Model: PR-3123-PQ

• 1,000 Users (up to 998 users and 2 duress users)

• 9~24 VDC Operation with low current draw – 90mA max.

• Form C relay output – 2A@12VDC

• Adjustable output time – 0.5~99s, or toggle

• Built-in tamper alarm and external alarm output

• Multicolor status LED

• EEPROM Memory protects programmed information in case of power loss

• Includes remote programmer

• Egress input lets users exit the premises without using a card

• Can serve as either Wiegand reader or controller, both output and input are selectable from 26~37 bits

• Uses EM 125kHz cards – 10 User cards included

• 2-Door interlock

• Extreme cold tolerance to -40° F (-40° C)

• Epoxy-filled ABS plastic housing, Weatherproof – IP66

• Easy duplication of users to additional devices
