Reference: 5981
Brand: Apagon
Model: 5M-16AWG MULTI-CONTACT ELECTRICAL EXTENSION 3-OUTPUT STRIP TYPE 5MTS LONG HARD CABLE, HIGH RESISTANCE AND DURABILITY RESISTS FOR OUTDOORS
Reference: 3811
Brand: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Reference: 3809
Brand: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3808
Brand: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3807
Brand: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3806
Brand: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2451
Brand: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

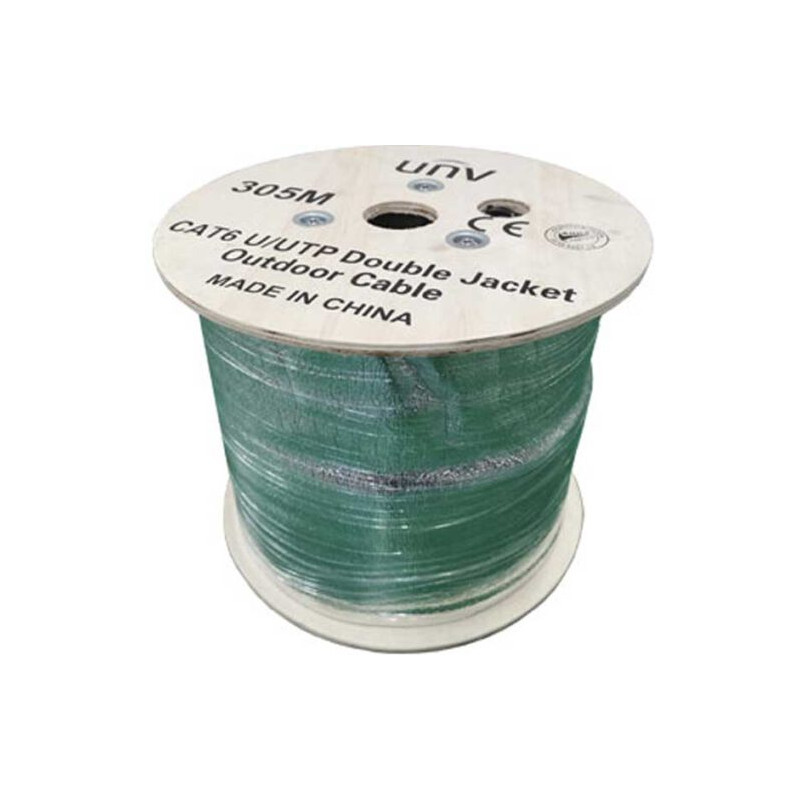

Model: CAB-LC3110B-E-IN
|
Product specification |
HSYV-6 4×2×0.52 |
||
|
Test Standard |
ISO/IEC11801、TIA-568-C.2、 YD/T1019 |
||
|
Conductor |
Material |
OFC(Oxygen free copper) |
|
|
AWG |
24 |
||
|
Nom.O.D.(mm) |
0.52±0.03 mm |
||
|
DC resistance |
≤95 Ω/km |
||
|
Insulation |
Material |
HDPE |
|
|
Thickness |
0.2±0.02 mm |
||
|
Diameter |
0.93±0.05 mm |
||
|
Color |
Blue/White- Blue Green/White-Green |
||
|
Orange/White-Orange Brown/White-Brown |
|||
|
Pitch |
Offset pitch |
≤20 mm |
|
|
Cable pitch |
≤120 mm |
||
|
Sheath |
Material(IN Jacket) |
PVC(complies RoHS/REACH) |
|
|
Material(OUT Jacket) |
LDPE |
||
|
External O.D. |
6.9±0.3 mm |
||
|
Color |
Black |
||
|
Tensile strength(PVC) |
>13.5 Mpa |
||
|
Thickness |
0.55±0.05 mm |
||
|
Surface Printing |
Letter height |
3.0±0.3 mm |
|
|
Color |
White |
||
|
Print error |
1±0.005 m |
||
|
Case number |
Yes |
||
Reference: 153
Brand: Vertical Cable
Model: 069-561/CMXT High-Performance Data Cable 550MHz Bandwidth for Data Applications CAT6 with Overall Shield Dual Jacket Direct Burial UV Rated 23AWG Solid Copper Conductors IEC 61156-5, IEC11801, ANSI/TIA 568D.2, UL444 ETL Listed, RoHS Compliant 1000ft Wooden Spool
Reference: 1181
Brand: Vertical Cable
Model: 069-560/CMXF High-Performance Data Cable 550 MHz Bandwidth for Data Applications, Fast Ethernet and 155Mbps TP-PMD/CDDI Category-6 Unshielded Twisted Pair Easily Identified Color-Striped Pairs 23 AWG Solid Copper Conductors Exceeds TIA/EIA-568C.2, ISO/IEC 11801 CAN/CSA -C22.2 No. 214 ETL Listed, RoHS Compliant 1000ft Wooden Spool
Reference: 5116
Brand: Kodicam
Model: 5116-561/CMXT High-Performance Data Cable 550MHz Bandwidth for Data Applications Category-6 with Overall Shield Dual Jacket Direct Burial UV Rated 23AWG Solid Copper Conductors IEC 61156-5, IEC11801, ANSI/TIA 568D.2, UL444 ETL Listed, RoHS Compliant 1000ft Wooden Spool
Reference: 1180
Brand: Vertical Cable
Model: 069-562/MESG Ideal for Outdoor Aerial Applications Category-6 Cable Outdoor Rated, with Messenger Wire, LLDPE Jacket Galvanized Steel Messenger for Support Easily Identified Color-Striped Pairs 23AWG Solid Copper Conductors Exceeds ANSI/TIA- 568.2-D Standards ETL Listed, RoHS Compliant 1000ft Wooden Spool
Reference: 5122
Brand: Kodicam
Model: 5122-562/MESG Ideal for Outdoor Aerial Applications Category-6 Cable Outdoor Rated, with Messenger Wire, LLDPE Jacket Galvanized Steel Messenger for Support Easily Identified Color-Striped Pairs 23AWG Solid Copper Conductors Exceeds ANSI/TIA- 568.2-D Standards ETL Listed, RoHS Compliant 1000ft Wooden Spool
Reference: 5115
Brand: Kodicam
Model: FTP-CAT6 FTP Cat6 network cable Meets ANSI/TIA/EIA-568B and YD/T1019-2013. UV-resistant. Physical bandwidth: 250MHz. Support 10/100Base-T, 1000Base-T, 10GBase-T Conductor Diameter: 24AWG
Reference: 5121
Brand: Kodicam
Model: 5121-560/CMXF High-Performance Data Cable 550 MHz Bandwidth for Data Applications, Fast Ethernet and 155Mbps TP-PMD/CDDI Category-6 Unshielded Twisted Pair Easily Identified Color-Striped Pairs 23 AWG Solid Copper Conductors Exceeds TIA/EIA-568C.2, ISO/IEC 11801 CAN/CSA -C22.2 No. 214 ETL Listed, RoHS Compliant 1000ft Wooden Spool
Reference: 5120
Brand: Kodicam
Model: 5105-559/CMX High-Performance Data Cable 550MHz Bandwidth for Data Applications, Fast Ethernet and 155Mbps TP-PMD/CDDI Category-6 Unshielded Twisted Pair Easily Identified Color-Striped Pairs 23AWG Solid Copper Conductors Exceeds TIA/EIA-568C.2, ISO/IEC 11801 CAN/CSA -C22.2 No. 214 Suitable for 10/100/1000Base-T Outdoor UV...
Reference: 926
Brand: Vertical Cable
Model: 069-557/US/CMXT High-Performance Data Cable 600 MHz Bandwidth for Data Applications Category-6 Unshielded Twisted Pair Easily Identified Color-Striped Pairs 23 AWG Solid Copper Conductors Exceeds TIA/EIA-568C.2, ISO/IEC 11801 ETL Listed, RoHS Compliant 1000 FT Wooden Spool
Model: CAB-LC3110B-E-IN
