Reference: 5981
Brand: Apagon
Model: 5M-16AWG MULTI-CONTACT ELECTRICAL EXTENSION 3-OUTPUT STRIP TYPE 5MTS LONG HARD CABLE, HIGH RESISTANCE AND DURABILITY RESISTS FOR OUTDOORS
Reference: 3811
Brand: Apagon
Model: KB-C70-ER Size: 70 x 48 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Suitability: Indoor & Outdoor
Reference: 3809
Brand: Apagon
Model: KB-44-3512 Size: 400 x 350 x 120 mm Color: White Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3808
Brand: Apagon
Model: KB-44-2512 Size: 300 x 250 x 120 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3807
Brand: Apagon
Model: KB-44-2080 Size: 255 x 200 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 3806
Brand: Apagon
Model: KB-44-1580 Size: 200 x 155 x 80 mm Color: white Material: Impact Resistant - High Quality PVC Plastic Waterproof Rating: IP65 Type: Weatherproof Suitability: Indoor & Outdoor
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2451
Brand: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy
Model: LT3

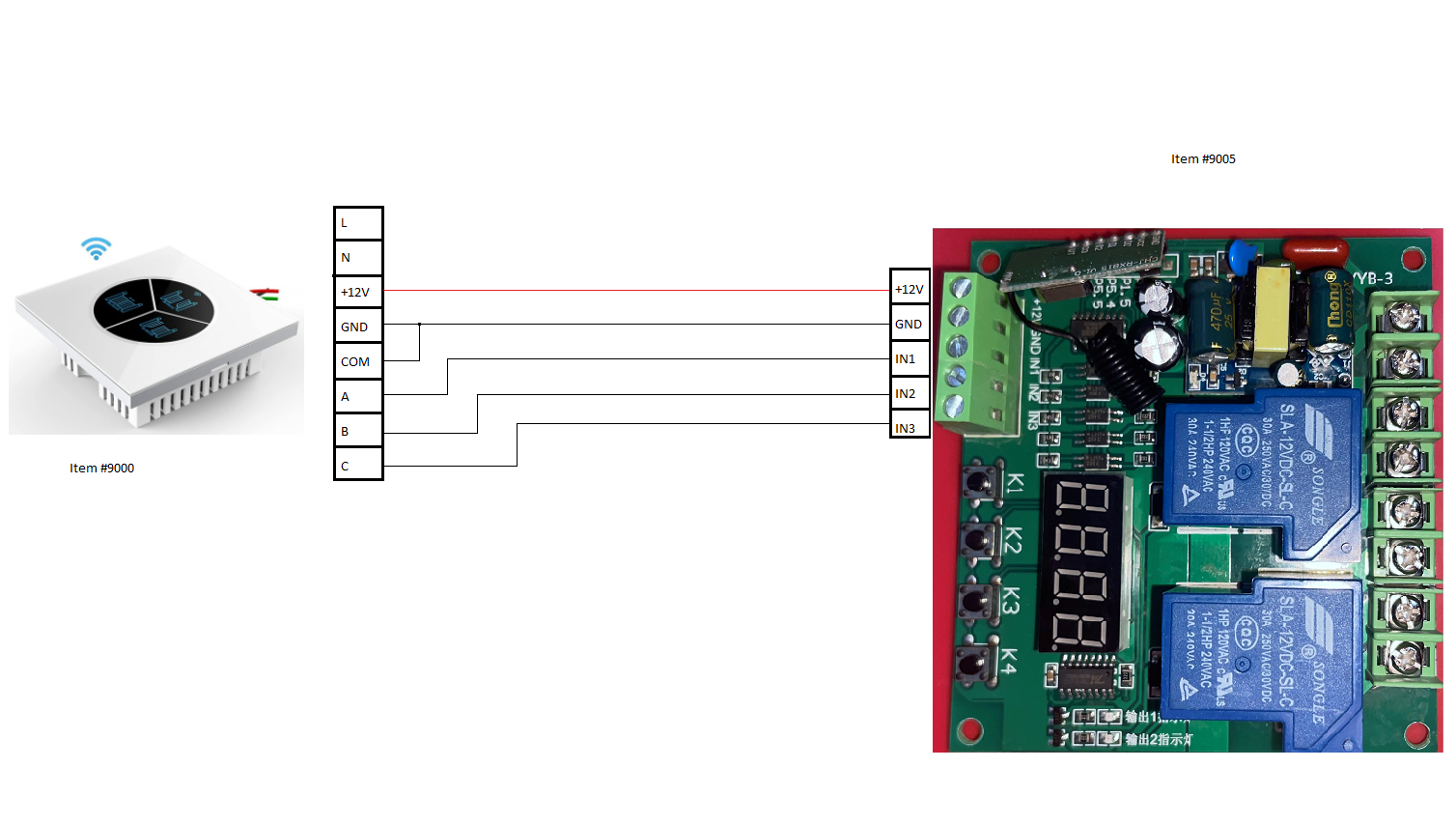

Wiring connection
1. Power connection
-AC: connect the switch L/N terminal to your AC power.
-DC: connect the switch red/black wire to your DC power.
2. Signal terminal connection
-Have standard wall push button: connect the switch A(any one of A/B/C) and Com terminal to the your push button.
-Don't have standard push button: connect the switch A(any one of A/B/C) and Com terminal to the gate opener control board.
A/B/C connect to positive, Com connect to negative.
3. Gate detection
Connect the switch green and black wire to a magnetic door sensor, then you can see door open/close status on mobile APP.
Reference: 9013
Brand: Apagon
Model: BOLT C-180 Central Rolling Shutter Motor Voltage: 110V AC 60Hz Maximum lift force :180kg Rated Power:656W Motor output torque: 180N.M Working temperature: -20-50 degrees Rotation: 10 R/Min Copper cable materials Central Motor is a kind of motor, which is installed in the center of a shutter door, so we called it central motor. Central Motor is...
Reference: 9017
Brand: Apagon
Model: Bolt F260E Central Rolling Shutter Motor Voltage: 110V AC 60Hz Maximum lift force :260kg Rated Power:495W Motor output torque: 260N.M Working temperature: -20-50 degrees Rotation: 10 R/Min Copper cable materials Central Motor is a kind of motor, which is installed in the center of a shutter door, so we called it central motor. Central Motor is...
Reference: 9018
Brand: Apagon
Model: Bolt F260ER-2 Remote Central Rolling Shutter Motor Voltage: 110V AC 60Hz Maximum lift force :260kg Rated Power:495W Motor output torque: 260N.M Working temperature:-20-50 dgree Rotation: 10 R/Min Copper cable materials Central Motor is a kind of motor, which is installed in the center of a shutter door, so we called it central motor. Central motor...
Reference: 9012
Brand: Apagon
Model: AC1000-1P-B It is widely used for openings and closing the rolling shutter door of industrial door, supermarket door, commercial door, storehouse, cinema, hotel and so on, It can be operated by electricity and manual. Voltage: 110V AC 60Hz Maximum lift force :1000kg Rated Power:460W Motor output torque: 580N.M Working temperature: -20-50 degrees...
Reference: 9010
Brand: Apagon
Model: AC600-P-B Voltage: 110V AC 60Hz Maximum lift force :600kg Rated power: 370W Motor output torque: 420N.M Working temperature: -20-50 degrees Rotation: 4.6 R/Min IP rate: IP44 Copper cable materials It is widely used for openings and closing the rolling shutter door of industrial door, supermarket door, commercial door, storehouse, cinema, hotel...
Reference: 9011
Brand: Apagon
Model: AC800-1P-B Voltage: 110V AC 60Hz Maximum lift force :800kg Rated Power:460W Motor output torque: 580N.M Working temperature: -20-50 degrees Rotation: 4.2 R/Min IP Rate: IP44 Copper cable materials Our motors are applied to shopping centers, warehouses, garages, theaters, hotels, banks, factories and other buildings' rolling shutter door's opening...
Reference: 9014
Brand: Apagon
Model: XP45M 50N.M 45mm in diameter 8N. m~50N.m. manual override type, new style. smaller and thinner bottom base, easier for installation, stable quality. CE, CCC and TUV approved. Voltage: 110V AC 60Hz Maximum lift force :50kg Rated Power:262W Motor output torque: 50N.M Working temperature: -20-50 degrees Rotation: 12R/Min Copper...
Reference: 9015
Brand: Apagon
Model: XP59M 140N.M New style. smaller and thinner bottom base, easier for installation, stable quality. CE, CCC and TUV approved. Voltage: 110V AC 60Hz Maximum lift force: Power:380W Motor output torque: 140N.M Working temperature: -20-50 degrees Rotation: 9R/Min Copper cable materials
Reference: 9016
Brand: Apagon
Model: XP59M 160N.M Voltage: 110V AC 60Hz Maximum lift force: Power:380W Motor output torque: 160N.M Working temperature: -20-50 degrees Rotation: 9R/Min Copper cable materials Tubular motor for roller shutter, Smaller and thinner bottom base, new style, Easier for installation, Lower noise, Stable quality, used for roller shutter, garage door and...
Reference: 3080
Brand: Apagon
Model: SS07-WIFI Door and window switch, mobile App remote notification. WIFI: 2.4G can be connected to router or mobile phone hotspot. Battery: AAAx 2(not included) Standby time: 5 years Use time: 1 years (15 times/day) 2years (7 times/day) Standby current: 10uA Wireless Type:2.4GHz Protocol: IEEE 802.11b/g/n Wifi distance:45m Operating...
Reference: 6800
Brand: ZKTECO
Model: ProBG3030L 110V Motor Type: Servo Motor Boom Type: Straight boom Ingress Protection Level: IP54 Operating Temperature: -40°C to +75°C Power Supply: 24V DC, 100 to 240V AC Frequency: 50 to 60HZ Power Consumption: 100W Case Material Powder coated steel Case Size: 360*330*1000mm Net Weight: 43kg Boom Length: 3m L: Case on the...
Reference: 9043
Brand: Apagon
Model: AC-16019-2A Key selector for Central Motor Used for roller shutter, rolling door. Inside with change-over switch. Alluminum alloy With two brass keys. Dimensions: L16.2*W12.3*H4.6cm, Aluminum alloy material, Metal keys, Powder coating aluminum alloy plate, Silver plated contacts and terminals External Cylinder 1-1000 combinations available,...
Reference: 9007
Brand: Apagon
Limit part for side motor Compatible #9010, 9011, 9012.
Reference: 9044
Brand: Apagon
Model: AC-16019-2B Dimensions: L16.2*W12.3*H4.6cm, Aluminum alloy material, Zinc-alloy cylinder, Metal keys, Powder coating aluminum alloy plate, Silver plated contacts and terminals External Cylinder 1-1000 combinations available, Internal Cylinder, 81 combinations available Rated Load: Maximum operating current: 16A, Insulation Resistance: lO0MOMin,...
Reference: 9003
Brand: Apagon
Model: MK-05 Digital electric roller door motor remote control The controller can learn 20 remote controllers with different address codes. If you need to add 20 remote control devices, you can use the fixed code remote control to compile the same code and perform the code operation with the controller Operation voltage 110V-240V AC Standby current 2A...
Reference: 9060
Brand: Apagon
Model: Board + 2 Beeper Inside remote control of center motor, one board + 2 beeper Specifications Receiver: Input voltage: AC110V-250V 50HZ/60HZ Motor voltage: AC110V-250V 50HZ/60HZ Protective Tube: 250V 10A Output Power: 1000W Temperature: -20°C -65°C Remote: Working Voltage: Black Type (with 4 keys): 12V (23A battery*1) Working Current: ≤15...
Reference: 9025
Brand: Apagon
Model: 16010-B1 Remote control for Tubular Motor + 2 beeper Size: 8.1 cm*12.2cm*3.1 cm Working Voltage: AC110V Receiving distance: 100m Receiving frequency: 433.92MHz Working temperature: -10°C -70°C Input power: 500 W With two transmitters / Big transmitter Photocell The receiver can store 20 channels at most, and it follows that the 21th transmitter...
Reference: 9049
Brand: Apagon
Remote Control in 433.92Mhz learning code with Auto-close function for Central and tubular motor, Photocell Port
Reference: 9047
Brand: Apagon
Model: 16019-3A Key Blank Compatible, #9040 and 9044.
Reference: 9028
Brand: Apagon
Model: PF50R-RD / PMF50R-RF PMF50R retro-reflective photoelectric sensor is our one popular model used at industry door such as high speed door, roller shutter door, garage door and so on. There is a different detection range can be selected as 7m, 12m and Supply voltage 10-30V DC & 12-240V DC/AC for selecting which can meet different demands of...
Reference: 9030
Brand: Apagon
Model: AC-16018-1B High Quality Automatic door Key switch High pressure casting aluminium case Inside have change-over switch Zinc alloy lock Brass key Aluminum alloy material, Brass cylinder, Metal keys, Stainless steel plate, Silver plated contacts and terminals, 1-1000 combinations available, Rated Load: Maximum operating current: 16A Insulation...
Reference: 9024
Brand: Apagon
Model: 16010-G2B Remote control for Tubular Motor + 2 beeper
Reference: 9021
Brand: Apagon
Model: BOLT KS-21 OLLER SHUTTER 18 AMP 230v AC KEY SWITCH. Product Description Water and Dust Proof. Spring load safety feature Heavy Duty Anti vandal Metal casing 3 x keys Supplied Internal & External Use Up & Down Operate Marked with up and Down Arrows. Metal Casing Key Switch garage door, rolling shutter Zinc alloy die casting shell Inside...
Reference: 9048
Brand: Apagon
Model: 16019-3A-1 Key Blank Compatible #9040
Model: LT3
