  • Out-of-Stock

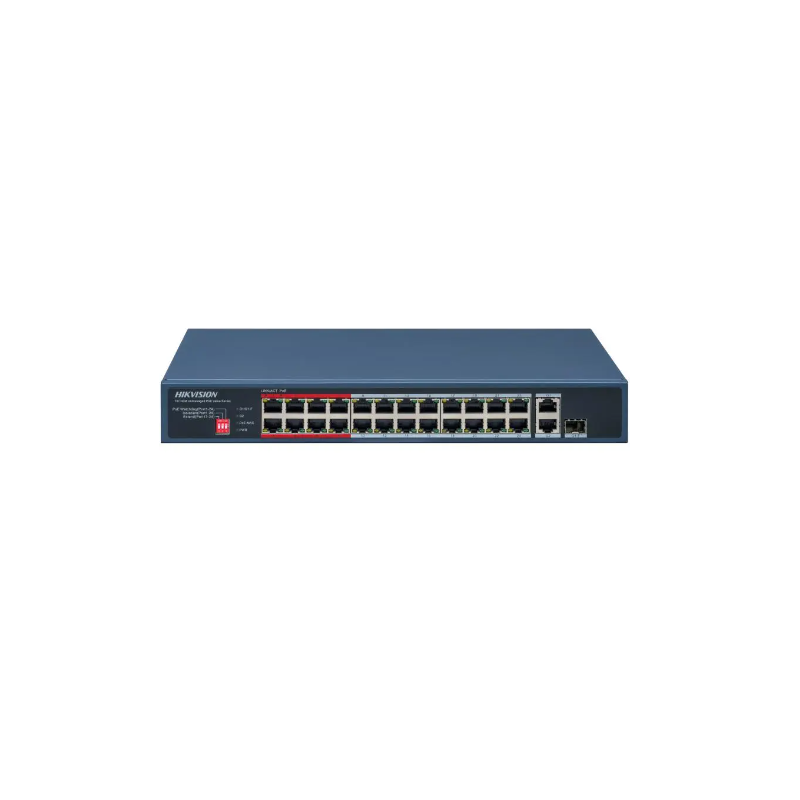

DS-3E0326P-E/M(C) 24 Port Fast Ethernet Unmanaged POE Switch

4908

Model: DS-3E0326P-E/M(C)

  • Intelligent PoE Management When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.

  • Up to 300 m Long Range PoE Transmission The distance between IPCs and switch can reach maximum 300 meters.

  • 4/8-Core Adaptive Power Supply with Less Power Loss 8-core power supply reduces the power loss on cables

  • 6 KV Surge Protection to Improve Reliability in Harsh Environment The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.

  • Design for Video Transmission VIP port ensures important data transmission when network congestion occurs.
$442.50
Tax excluded
Quantity
Out-of-Stock

Description
  • Network Parameters
  • Ports24 × 10/100 Mbps PoE port,1× Gigabit RJ45 port,1 × Gigabit combo
  • MAC Address Table8 K
  • Switching Capacity8.8 Gbps
  • Packet Forwarding Rate6.55 Mpps
  • Internal Cache4 Mbits
  • PoE Power Supply
  • PoE StandardIEEE 802.3af;IEEE 802.3at
  • PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE PortPoE: Ports 1 to 24
  • Max. Port Power30 W
  • PoE Power Budget230 W
  • Dialing Function
  • Long Range

    Ports 17 to 24 : up to 300 m.

    Long range performance may vary depend on camera model or cable condition.

  • Port Isolation/
  • PoE Watchdog/
  • General
  • ShellMetal material
  • Net Weight1.90 kg (4.20 lb)
  • Gross Weight2.65 kg (5.84 lb)
  • Dimensions (W × H × D)335.0 mm × 44.5 mm × 226.0 mm (13.19'' × 1.75'' × 8.90'')
  • Operating Temperature0 °C to 45 °C (32 °F to 113 °F)
  • Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Relative Humidity5% to 95% (no condensation)
  • Power Supply100~240 VAC, 50/60 Hz, Max. 4 A
  • Max. Power Consumption250 W
  • Power Consumption In Idle20 W
  • Installation ModeDesk-Mounted,Wall-Mounted
  • Surge Protection6 KV
Product Details
4908

Data sheet

POE TYPE
POE-PLUS
SWITCH OPTIONS
SFP SLOTS
PORTS QUANTITY
24-28 PORTS
