Reference: 5917
Brand: Apagon
SDS Plus Bits (1/4"*6")-1PCS Rotary Hammer Drill Bits Set Cross Carbide Tips for Concrete, Brick, Cement Walls, Stone, Brick
Reference: 5916
Brand: Apagon
SDS Plus Bits (3/16"*6")-1PCS Rotary Hammer Drill Bits Set Cross Carbide Tips for Concrete, Brick, Cement Walls, Stone, Brick
Reference: 5915
Brand: Apagon
SDS Plus Bits (5/32"*6")-1PCS Rotary Hammer Drill Bits Set Cross Carbide Tips for Concrete, Brick, Cement Walls, Stone, Brick
Reference: 5926
Brand: Apagon
4 Inch Phillips Bit#2 Magnetic Anti Slip Impact Screwdriver Bits Set, 1pcs Insert S2 Steel PH2 Driver Dit Set with CNC Machined Tips for Power Drill
Reference: 5925
Brand: Apagon
2 Inch Phillips Bit#2 Magnetic Anti Slip Impact Screwdriver Bits Set, 1pcs Insert S2 Steel PH2 Driver Dit Set with CNC Machined Tips for Power Drill
Reference: 5930
Brand: Apagon
Rotary Hammer Drill Bits Set & Chisels- SDS Plus Concrete Masonry Hole Tool 17pcs with Storage Case
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2253
Brand: Uniview
Model: UAC-T122-AF28-W 2MP high quality imaging TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio...
Reference: 2451
Brand: Uniview
Model: TR-JB03-G-IN Application: Junction box for IPC32X, IPC31X and IPCD1XX series fixed dome Dimensions: Ø108.6 × 36mm (Ø4.28” × 1.42”) Weight: 0.2kg (0.44lb) Material: Aluminum alloy

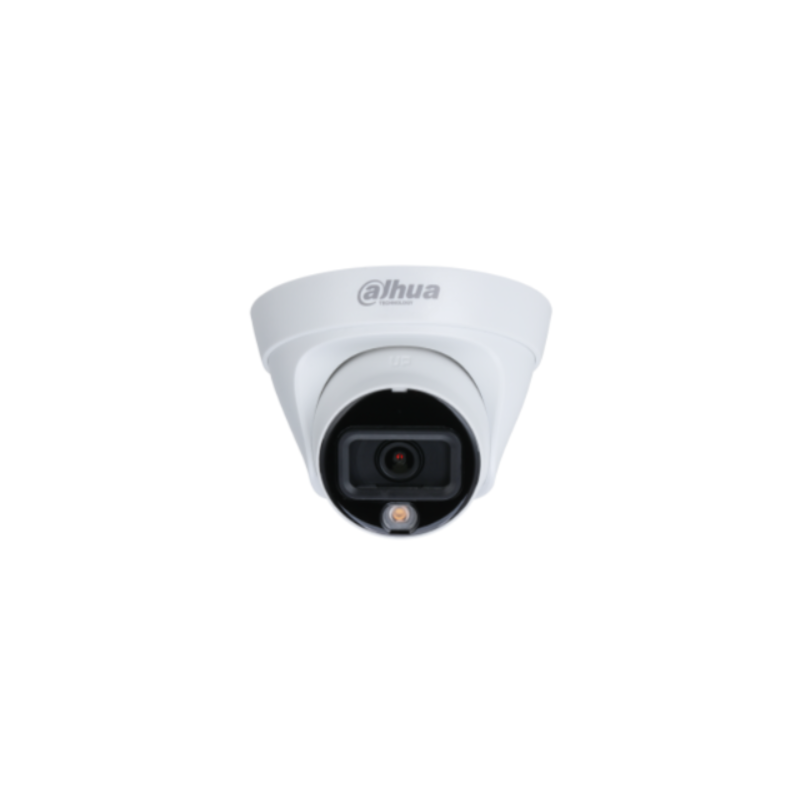

Model: IPC-HDW1239T1-LED-S5
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/2.8" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Effective Pixels |
1920 (H) × 1080 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ROM |
16 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM |
64 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Min. Illumination |
0.005 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
> 56 dB
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illumination Distance |
2.8 mm: 10 m (32.81 ft) (Warm light) 3.6 mm: 15 m (49.21 ft) (Warm light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator On/Off Control |
Auto; Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator Number |
1 (Warm light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt/Rotation Range |
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mount Type |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
2.8 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Aperture |
2.8 mm: F1.6 3.6 mm: F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Field of View |
2.8 mm: Pan 110° × Tilt 59° × Diagonal 132° 3.6 mm: Pan 91° × Tilt 48° × Diagonal 109° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Iris Type |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
2.8 mm: 0.6 m (2.0 ft) 3.6 mm: 1.1 m (3.6 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
2.8 mm |
37.3 m |
14.9 m (48.9 ft) |
7.5 m ( 24.6 ft) |
3.7 m |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
3.6 mm |
53.3 m (174.9 ft) |
21.3 m (69.9 ft) |
10.7 m |
5.3 m |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart Codec |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Frame Rate |
Main Stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Stream Capability |
2 streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
1080p (1920 × 1080); 1.3m (1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640× 480); CIF (352 × 288/352 × 240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Bit Rate Control |
CBR/VBR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Bit Rate |
H.264: 32 Kbps–6144 Kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Day/Night |
Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
BLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WDR |
DWDR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gain Control |
Manual/Auto |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Noise Reduction |
3D DNR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Region of Interest(RoI) |
Yes (4 areas) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Smart Light |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 1080p resolution.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mirror |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Privacy Masking |
4 areas |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
RJ-45 (10/100 Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protocol |
IPv4; IPV6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; DDNS ;Multicast |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF (Profile S); CGI; P2P; Genetec |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User/Host |
20 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Edge Storage |
FTP; Dahua Cloud |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Browser |
IE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Management Software |
Smart PSS; DSS; DMSS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mobile Phone |
IOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE-LVD: EN62368-1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12V DC/PoE (802.3af) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
<4.8 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Conditions |
-40°C to +60°C (-40°F to +140°F)/less than ≤ 95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
-40°C to +60°C (-40°F to +140°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ingress Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing |
Metal + plastic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions |
85.5 mm × Φ109 mm (3.4" × Φ4.3") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.24 kg (0.5 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.37 kg (0.8 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Data sheet
Reference: 3354
Brand: Dahua
Model: PFA152-E Material: aluminum & SUS304 Pole mount bracket Aesthetic design
Reference: 3304
Brand: Dahua
Model: PFB220C Neat & Integrated design. Ceiling mount bracket. Material: Aluminum.
Reference: 3307
Brand: Dahua
Model: PFA106 Neat & Integrated design. Material: Aluminum.
Reference: 3325
Brand: Dahua
Model: PFA13G Aluminum alloy material, cost-effective. Dedicated for particular cameras, beautiful and elegant designed. Cabling inside the junction box. Cable threading through bottom or side.
Reference: 3328
Brand: Dahua
Model: PFA136 Aesthetic design Material: aluminum Junction box
Reference: 3330
Brand: Dahua
Model: PFB203W Aesthetic design Wall mount bracket Material: aluminum & SECC
Reference: 3350
Brand: Dahua
Model: PFA130-E Neat & Integrated design Material: Aluminum IP66 junction box
Reference: 2375
Brand: Uniview
Model: IPC3622LE-ADF28(40)K-WP High quality image with 2MP, 1/2.7"CMOS sensor and F1.0 large aperture lens 2MP (1920*1080) @30/25fps; 720P (1280*720) @30/25fps; Ultra 265, H.265, H.264, MJPEG Colorhunter with Wise-ISP technology ensures 24-hour full-color images 120dB true WDR technology enables clear image in strong light scene Support 9:16 Corridor...
Reference: 2358
Brand: Uniview
Model: IPC3612LE-ADF28KC-WL High quality image with 2MP, 1/2.8"CMOS sensor 2MP (1920*1080) @30/25fps; 720P (1280*720) @30/25fps; Ultra 265, H.265, H.264, MJPEG 120dB true WDR technology enables clear image in strong light scene Support 9:16 Corridor Mode Built-in Mic & Speaker Smart IR, up to 30m (98ft) IR distance White Light, up to 30m (98ft) white...
Reference: 2300
Brand: Uniview
Model: IPC-B122-APF28 Day/night functionality Smart IR, up to 30m (98ft) IR distance Optical glass window with higher light transmittance IR anti-reflection window to increase the infrared transmittance 2D/3D DNR (Digital Noise Reduction) Ultra 265, H.265, H.264 Built-in Mic ROI (Region of Interest) ONVIF Conformance Wide temperature range: -30°C ~ 60°C...
Reference: 2305
Brand: Uniview
Model: IPC2122LB-AF28(40)K-WL High quality image with 2MP, 1/2.9"CMOS sensor 2MP (1920*1080) @30/25fps; 720P (1280*720) @30/25fps Ultra H.265, H.265, H.264 Built-in Mic Warm Light, up to 30m (98ft) warm light distance 2D/3D DNR (Digital Noise Reduction) Support 128GB Micro SD card. IP67 protection Support PoE power supply. 3-Axis
Reference: 4530
Brand: Hikvision
Model: DS-2CD1H23G2-IZ(S) High quality imaging with 2 MP resolution Support Human and Vehicle Detection 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring Up to 256 GB memory card slot for storage Water and dust resistant (IP67) EXIR 2.0: advanced infrared technology with long IR range Clear imaging even with strong...
Reference: 1759
Brand: Dahua
Model: IPC-HDW1230T1-S5 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition Outputs max. 2MP (1920 × 1080) @25/30 fps H.265 codec, high compression rate, ultra-low bit rate Built-in efficient IR illuminator, and the max. illumination distance is 30 m ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and...
Reference: 1757
Brand: Dahua
Model: IPC-HDPW1230R1P-ZS-S4 2MP 1/2.8" CMOS image sensor, low luminance, and high definition image H.265 codec, high compression rate, ultra-lowbitrate. Outputs max. 2MP (1920 × 1080)@25/30 fps. Abnormality detection: Motion detection, privacy masking, no SD card, SD card full, SD card error, network disconnection, IP conflict, and illegal access....
Reference: 1704
Brand: Dahua
Model: IPC-HFW1239S1-A-LED-S5 2-MP 1/2.8" CMOS image sensor, low luminance, and high-definition image. Outputs max. 2 MP (1920 × 1080) @25/30 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in warm light, and the max. illumination distance is 15 m. ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage...
Reference: 6318
Brand: Uniview
Model: Uho-B1R-M2F3 High quality image with 2MP, 1/2.9"CMOS sensor 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps Ultra 265, H.265, H.264, MJPEG Built-in Mic Smart IR, up to 30m (98ft) IR distance Supports 128 G Micro SD card IP67 protection 3-Axis
Reference: 2352
Brand: Uniview
Model: IPC322LB-DSF28K-G High quality image with 2MP, 1/2.7"CMOS sensor 2MP (1920*1080) @30/25fps; 720P (1280*720) @30/25fps Ultra 265, H.265, H.264, MJPEG 120dB true WDR technology enables clear image in strong light scene Support 9:16 Corridor Mode Smart IR, up to 30m (98ft) IR distance Supports 128 G Micro SD card IK10 vandal resistant IP67...
Reference: 1703
Brand: Dahua
Model: IPC-HFW3249E-AS-LED 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition Outputs max. 2MP (1920 × 1080) @30 fps H.265 codec, high compression rate, low bit rate Built-in Warm LED, max. LED distance: 30 m ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments Rotation mode,...
Reference: 4580
Brand: Hikvision
Model: DS-2CD1623G2-IZS High quality imaging with 2 MP resolution Support Human and Vehicle Detection 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring Up to 256 GB SD card slot for storage Water and dust resistant (IP67) EXIR 2.0: advanced infrared technology with long IR range Efficient H.265+ compression...
Reference: 1755
Brand: Dahua
Model: IPC-HDBW4239R-ASE 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS H.265&H.264 triple-stream encoding 25/30fps@1080(1920×1080) Smart Detection supported WDR(120dB), Day/Night(Electronic), 3DNR, AWB, AGC, BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 3.6mm fixed lens (6mm optional) 1/1 Alarm in/out, 1/1 audio in/out...
Reference: 1720
Brand: Dahua
Model: IPC-HUM4231 1/2.7” 2Megapixel progressive CMOS H.265& H.264 triple-stream encoding 25/30fps@1080(1920×1080) WDR (120dB), Day/Night (Electronic), 3DNR, AWB, AGC, BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 2.8 mm pinhole lens.
Reference: 4500
Brand: Hikvision
Model: DS-2CD1323G2-LIU High quality imaging with 2 MP resolution Support Human and Vehicle Detection Smart Hybrid Light: advanced technology with long range Built-in microphone for real-time audio security Efficient H.265+ compression technology Support on-board storage up to 512 GB (SD card slot) (Optional) Water and dust resistant...
Reference: 2357
Brand: Uniview
Model: IPC3612LB-AF28K-WL High quality image with 2MP, 1/2.9"CMOS sensor 2MP (1920*1080) @30/25fps; 720P (1280*720) @30/25fps Ultra H.265, H.265, H.264 Built-in Mic Warm Light, up to 30m (98ft) warm light distance 2D/3D DNR (Digital Noise Reduction) Support 128GB Micro SD card. IP67 protection Support PoE power supply. 3-Axis
Model: IPC-HDW1239T1-LED-S5
